Mobox Series DC Charger
The Mobox Series DC charger features an integrated design with compact dimensions. It can be adapted to different connectors for different market applications. In addition, it can be supported with movable wheels, this design allows for quick power connection, easy mobility and convenient vehicle transport.
Remote O&M
Scheduler
Load Balancing
App
RFID
Plug to Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth
Supports flexible deployment

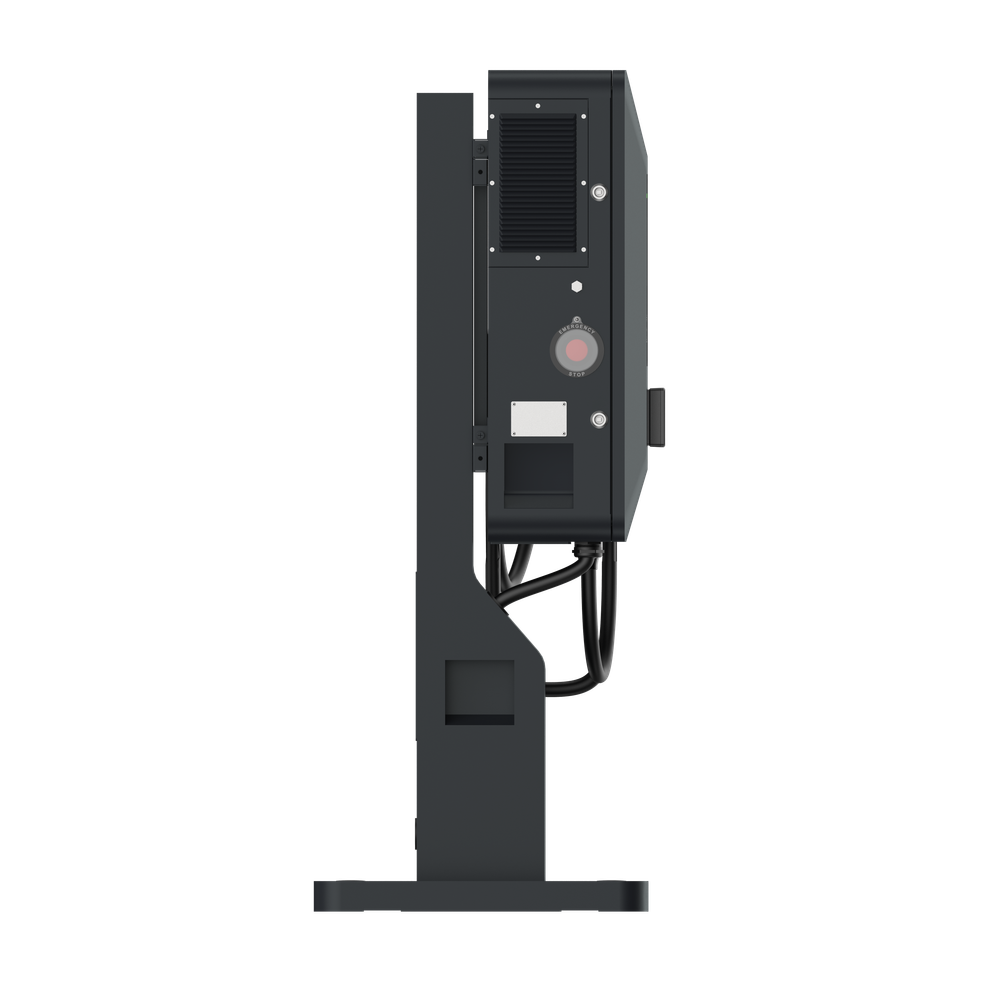

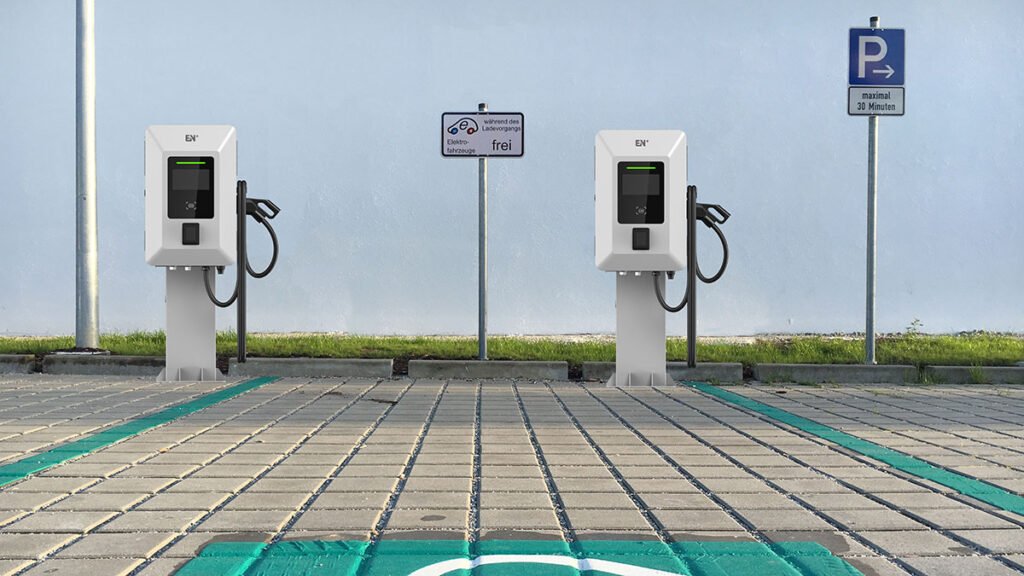

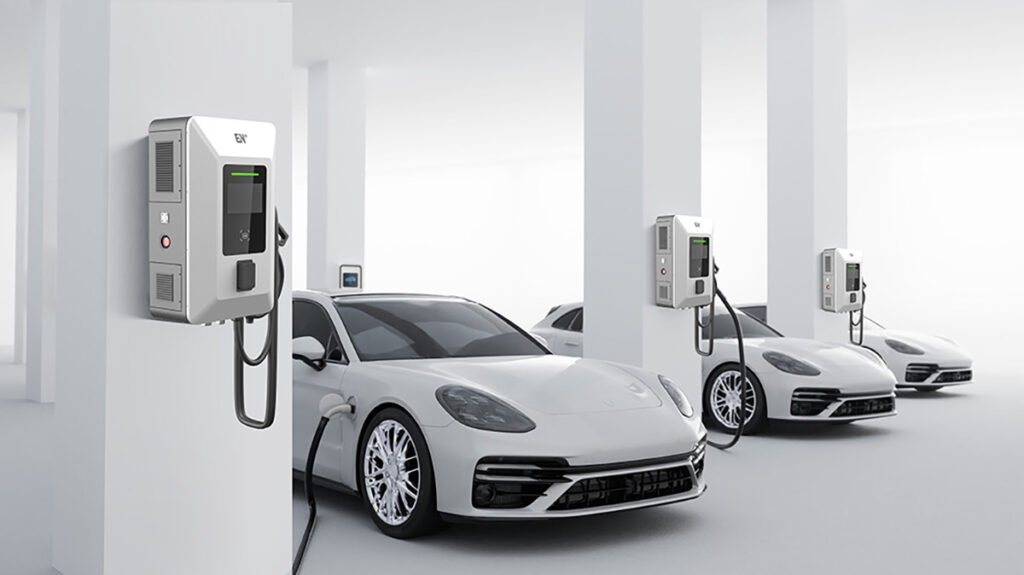

Mobox Series is available in 3 different versions: wall-mount, pole-mount, and movable. Thereinto, the movable version is specifically designed for Fleet enterprises, enabling more flexible and convenient charging solutions.
Safe & Fast Charging
100km in 30 mins. Compliant with OCPP Json1.6, global safety standards. High-level safety protection and multi-dimensional security ensure customer data safety.
Your benefits
01. Easy/Convenient
- Multi-connector Choices:CCS2/CHAdeMO/GB/CCS1
- 30-40kW Rated Power
- 10.1 Color Touch Screen
- Wall-mount/Pole-mount/Movable
02. Flexible
- Connectivity：Wi-Fi & Ethernet/4G
- Start Mode: Plug to Play, RFID Card, App, POS (Optional)
- Emergency Stop Switch
- Easy Maintenance Through Modular Design
03. Safety
- IP55 Ingress Protection
- IK10 Impact Protection
- High Cyber Security Protection
- Multi Electrical Protection
04. Smart Charging
- Schduled Charging
- Dynamic Load Management
- Site Map Charger Finding
- Charger Authorisation
- Remote O&M
05. Customizable Branding
- White Label Service
- ODM Service
- OEM Service
Specification
Maximum Charging Power
- 30kW
- 40kW
Current
- 100A (30kW)
- 133,3A (40kW)
Dimension
- 550 * 850 * 300mm (W * H * D)
Weight
- 78.5kg
Voltage
- 200-1000V DC
Charge Connector
- CCS2/CHAdeMO/GB/CCS1
- 5m Cable
Start Mode
- App/QR code/RFID Card/POS(Optional)
Communication
- Wi-Fi & Ethernet (Standard)
- 4G (Optional)
Certification
- CE, CB
Safety Protection
- IP54
- IK10 (without screen)
FAQs for EN Plus EV Charger
- What are the advantages of using a 40kW low-power DC charger for businesses?
Cost-Efficiency: Low-power DC chargers are typically less expensive to install and operate compared to high-power DC chargers. This can be especially beneficial for smaller businesses or those with budget constraints.
Compatibility: Many electric vehicles are designed to accept a range of charging speeds, including lower-power options. A 40kW charger is still suitable for most daily charging needs, making it compatible with a wide variety of EV models.
Energy Savings: Lower-power chargers are more energy-efficient, as they draw less electricity from the grid. This can result in lower electricity bills, especially if the charger is used frequently.
Reduced Demand Charges: In some commercial settings, high-power charging stations can lead to demand charges from the utility company. Using a 40kW charger may help businesses avoid or reduce these charges.
Flexibility: A lower-power charger can be a versatile addition to your business, as it can be used for both employee and customer charging, making it a practical choice for various use cases.
Scalability: If you need to expand your charging infrastructure in the future, it’s often easier and more cost-effective to add additional low-power chargers rather than high-power ones.
- What is the charging speed of the charger?
Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Mobox Series DC Charger ccan provide the following ranges after 0.5 hour of charging:
30kW version: 50 kilometers
40kW version: 66 kilometers
- Which types of electric vehicles is this product compatible with?
This product is compatible with all Type 2 EV models.
