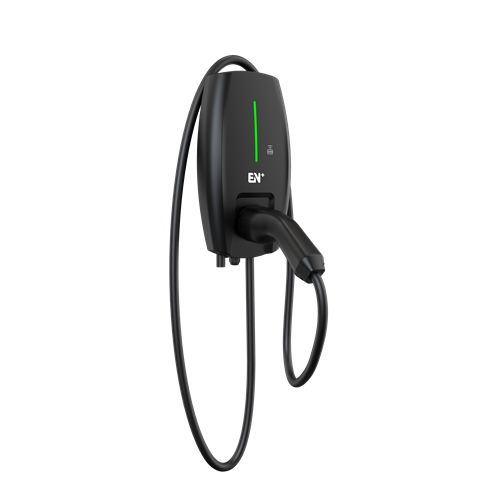

Alvis Series Home Wallbox
The stylish Alvis Series Home Wallbox is perfect for Type 2 EV models. With network connectivity and OCPP 1.6 compatibility, it offers load balancing and photovoltaic charging features. Ideal for residential use, it combines style and functionality. It is certified with ETSI EN 303 645, ensuring network security for consumer IoT devices.
Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug to Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

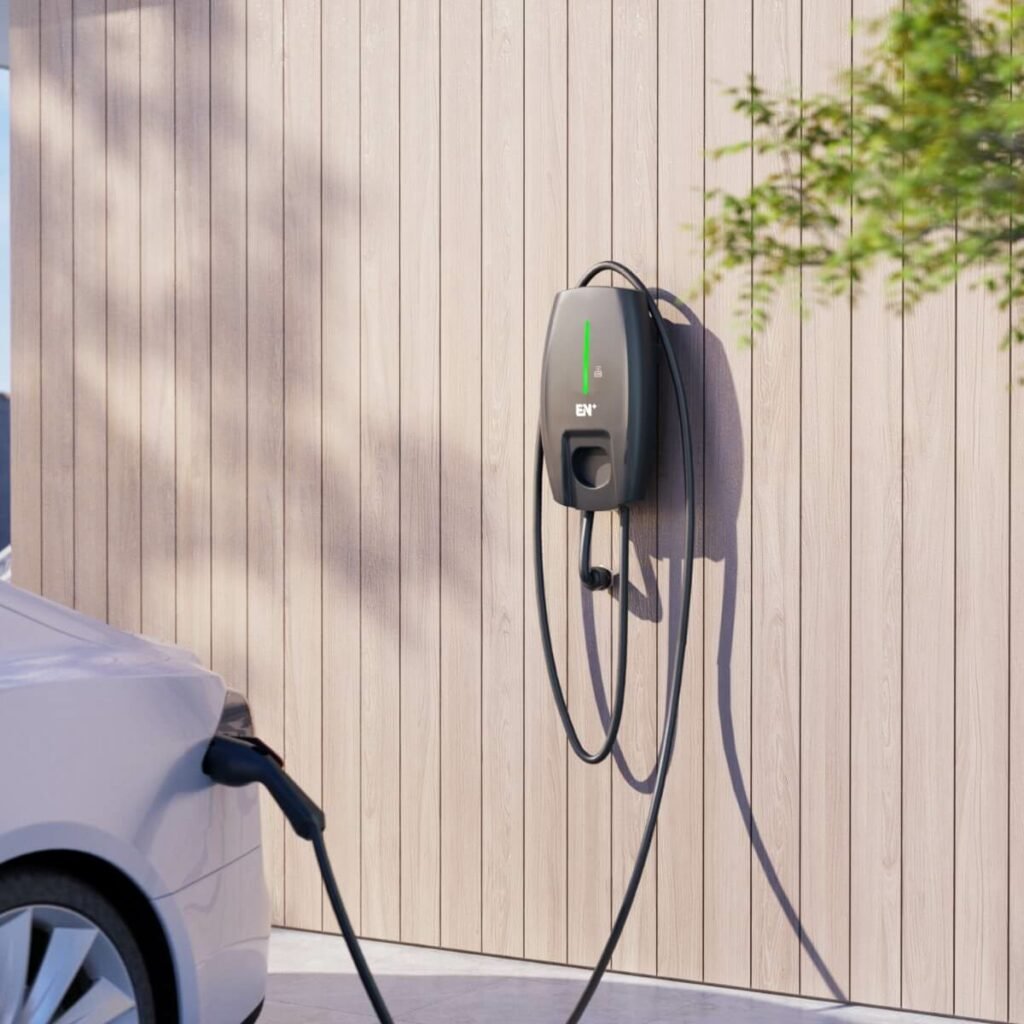

Modernize Home EV Experience
Attractive design, compact footprint, and lightweight construction make it the premier choice for residential charging, ensuring quality with MID certification.
Energize Your Charging Safety
Attained global certifications. Its security protocols provide high-level protection, established against the ESTI EN 303 645 certificate, facilitating the secure handling of personal data whilst charging EVs.
Your benefits
01. Easy/Convenient
- Max. 3.5kg Light Weight
- 10mins Quick Installation
- Wall-mount/Pole-mount(Optional)
- Type 2 Cable/Socket
02. Flexible
- Connectivity： Wi-Fi/4G/Ethernet/Bluetooth
- Cable Length: 7m Cable (4m Optional)
- Start Mode: Plug&Play, RFID Card, App
- Rated Power： 7kW/11kW
03. Safety
- IP65 Ingress Protection
- IK08 Impact Protection
- High Cyber Security Protection
- Multi Electrical Protection
04. Smart Charging
- Scheduled Charging
- Dynamic Load Management
- Site Map Charger Finding
- Charger Authorisation
05. Customizable Branding
- White Label Service
- ODM Service
- OEM Service
06. PV Charging
- 0 emission PV charging
- Simple integration with PV systems
- Adjustable current for optimized PV usage
- Saving from electricity bills
Specification
Maximum Charging Power
- 7kW
- 11kW
Dimension
- 328 * 181 * 87mm (H * W * D)
Weight
- 3.2kg
Voltage
- 230V AC (7kW)
- 400V AC (11kW)
Current
- 32A (7kW)
- 16A (11kW)
Charge Connector
- Type 2 Cable
- 7m Cable (4m Optional)
Start Mode
- Plug to Play / RFID Card / App
Communication
- Wi-Fi & Ethernet (Standard)
- Wi-Fi & 4G (Optional)
- Bluetooth (Hardware Ready）
Certification
- CE, CB, RoHS, Reach
Safety Protection
- IP65
- IK08
FAQs for EN Plus EV Chargers
- What is the charging speed of the charger?
Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Alvis Series Home Wallbox can provide the following ranges after 1 hour of charging:
7kW version: 46 kilometers
11kW version: 69 kilometers
- How to monitoring the charging progress of the EV charger?
You are able to monitor our Alvis Series Home Wallbox through your mobile App, our Evchargo Cloud software system, and the Led Indicator on the charger.
- Which types of electric vehicles is this product compatible with?
This product is compatible with all Type 2 EV models.
