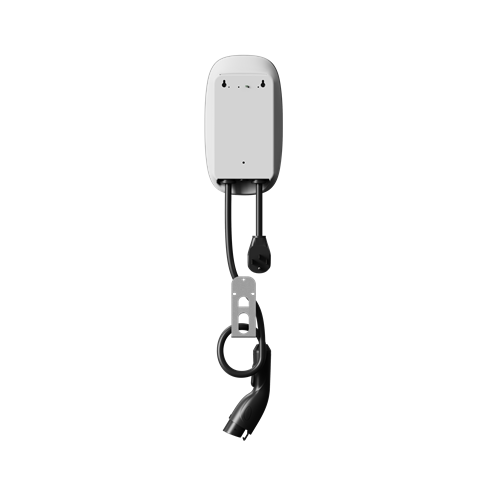

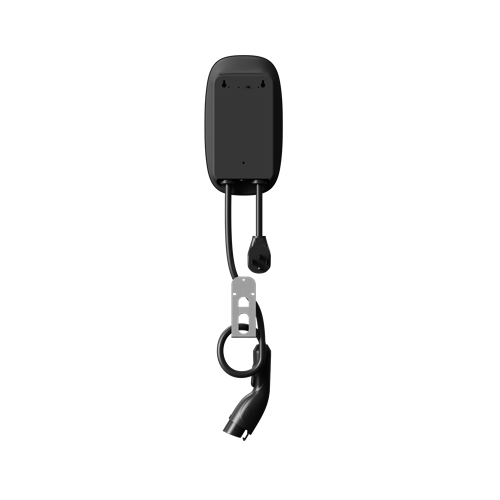

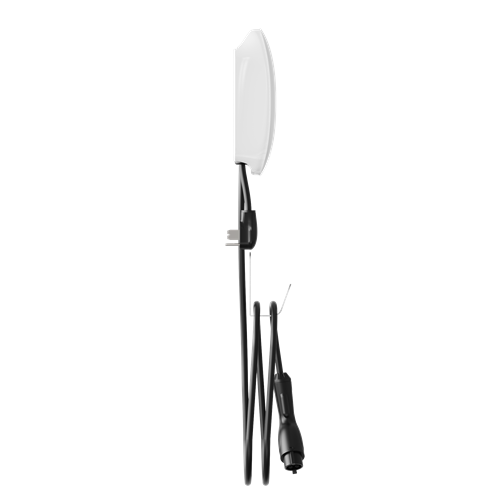

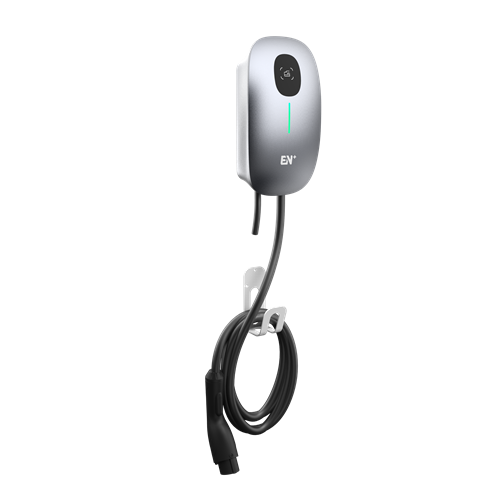

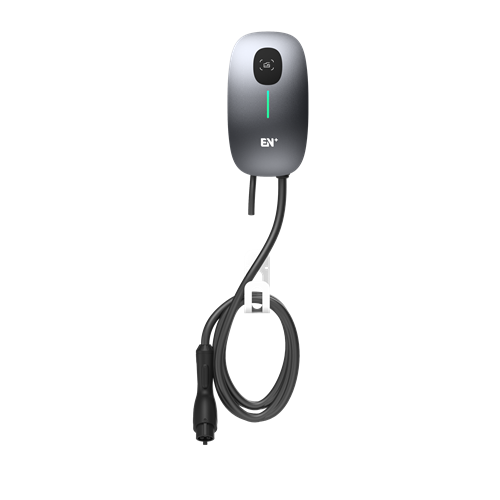

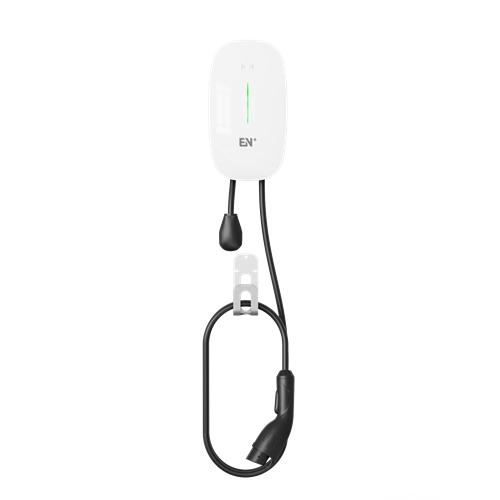

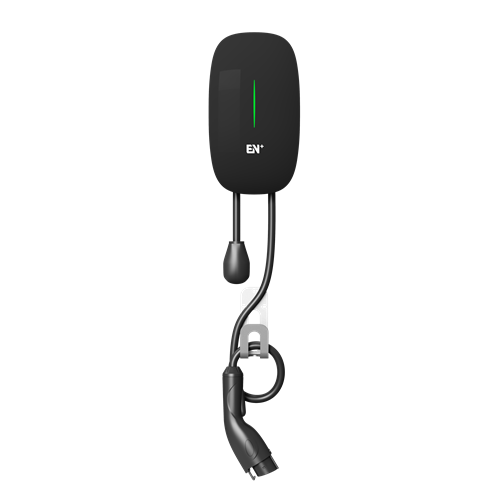

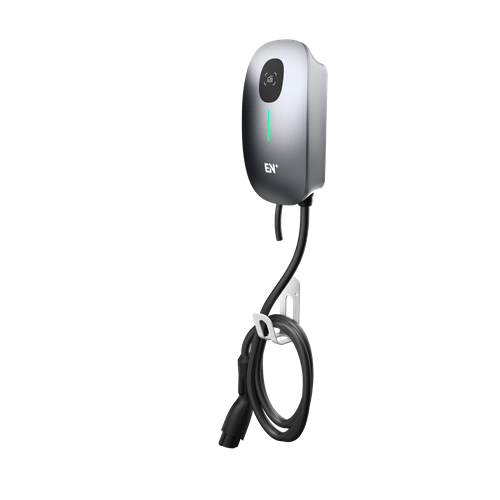

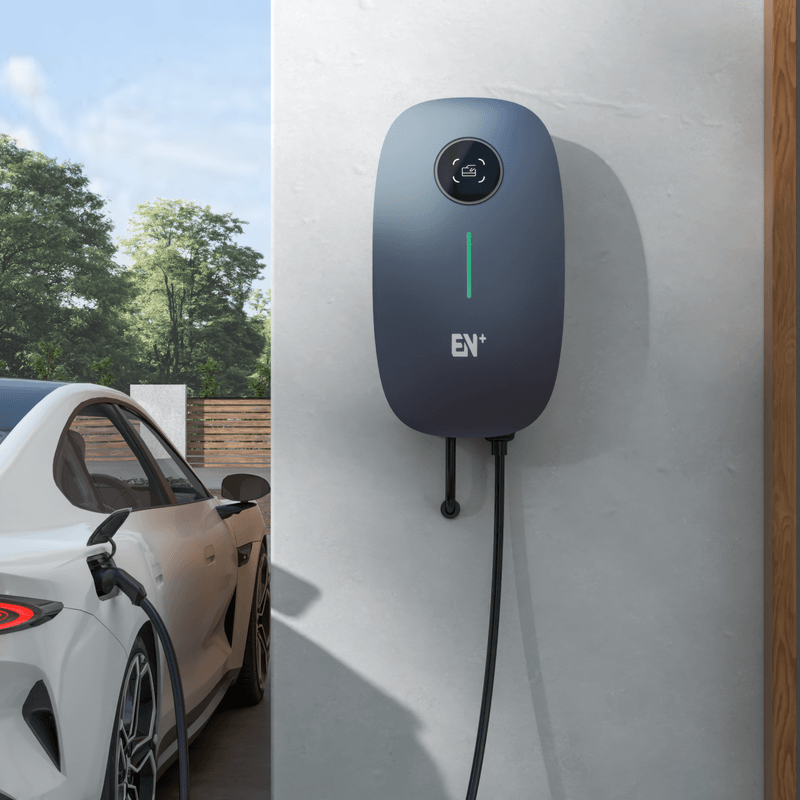

Silk Series Home Wallbox
With a sleek design, effortless installation, and Type 1 connector following OCPP 1.6 Json protocol, it offers seamless functionality. Safety features include anti-welding protection, NEMA4 (IP66) dustproof and waterproof design, and UL certification. Additionally, it provides intelligent load management and seamless PV integration for optimized energy usage via a smart App.
Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug to Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth
Best Match with Your Home Decor
Featured a sleek and easy-to-install design with a variety of color options to seamlessly complement diverse home styles.
Savings on Electricity Bills
Allowing smart charging with solar energy， it optimize electricity use with dynamic load management, reducing costs and enhancing power savings.
Your benefits
01. Easy/Convenient
- Up to 6.3kg Light Weight
- Cable Length:7m(23 feet)/7.5m(25 feet)
- 10mins Quick Installation
- Wall-mount/Pole-mount(Optional)
- SAE J1772 Compliant, Type 1 Plug
02. Flexible
- Connectivity：Wi-Fi/Ethernet/Bluetooth
- Wiring Type: NEMA 14-50P/Hardwired
- Start Mode: Plug to Play, RFID Card, App
- Rated Power： 10kW/12kW
03. Safety
- IP65 Ingress Protection
- IK10 Impact Protection
- High Cyber Security Protection
- Muliti Electrical Protection
- Energay Star Certified
04. Smart Charging
- Schduled Charging
- Dynamic Load Management
- Site Map Charger Finding
- Charger Authorisation
05. Customizable Branding
- White Label Service
- Color Customized Service
- Enclosure Design
- ODM Service
- OEM Service
06. PV Charging
- 0 emission PV charging
- Simple integration with PV systems
- Adjustable current for optimized PV usage
- Saving from electricity bills
Specification
Maximum Charging Power
- 10kW
- 12kW
Dimension
- 344 * 192 * 101mm (H * W * D)
Weight
- 6.3kg (10kW)
- 5.5kg (12kW)
Voltage
- 240V AC
Current
- 40A (10kW)
- 50A (12kW)
Charge Connector
- NEMA 14-50P (10kW)
- Hardwired (12kW)
- 7m Cable (23 Feet)/7.5m Cable (25 feet)
Start Mode
- Plug to Play / RFID Card / App
Communication
- Wi-Fi & Bluetooth & Ethernet (Standard)
Certification
- UL, FCC, Energy Star (10kW)
- FCC, IC, Energy Star, CSA (12kW)
Safety Protection
- NEMA4
- IK08
FAQs for EN Plus EV Charger
- What is the charging speed of the charger?
Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Silk Series Home Wallbox can provide the following ranges after 1 hour of charging:
10kW version: 64 kilometers
12kW version: 80 kilometers
- How to monitoring the charging progress of the EV charger?
You are able to monitor our Silk Series Home Wallbox through your mobile App, our Evchargo Cloud software system, and the Led Indicator on the charger.
- Which types of electric vehicles is this product compatible with?
This product is compatible with all Type 1 EV models.
