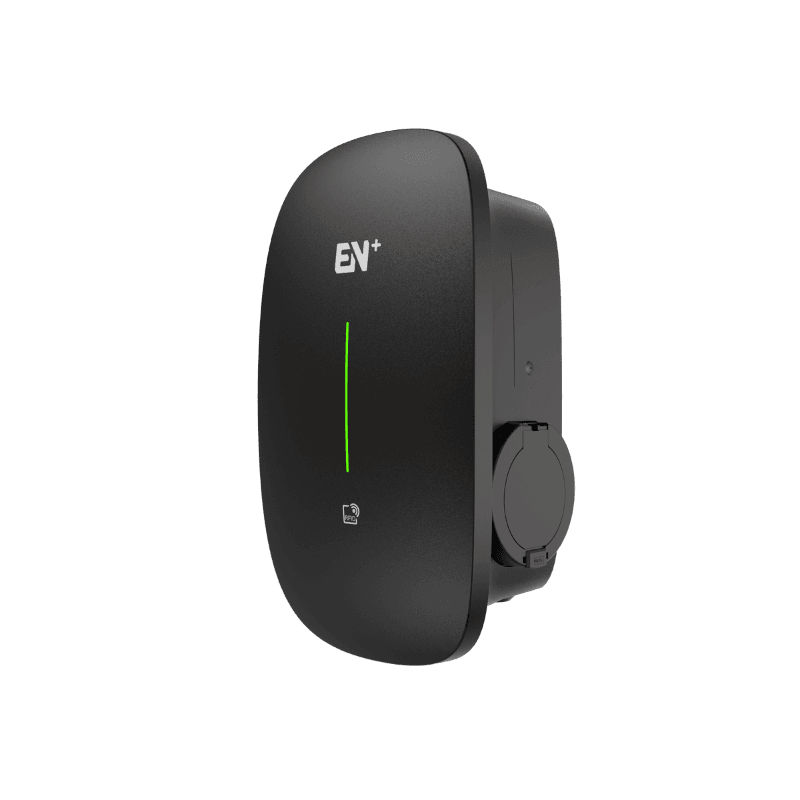

Caro Plus Series Home Wallbox
Upgraded for Smarter, Safer Charging

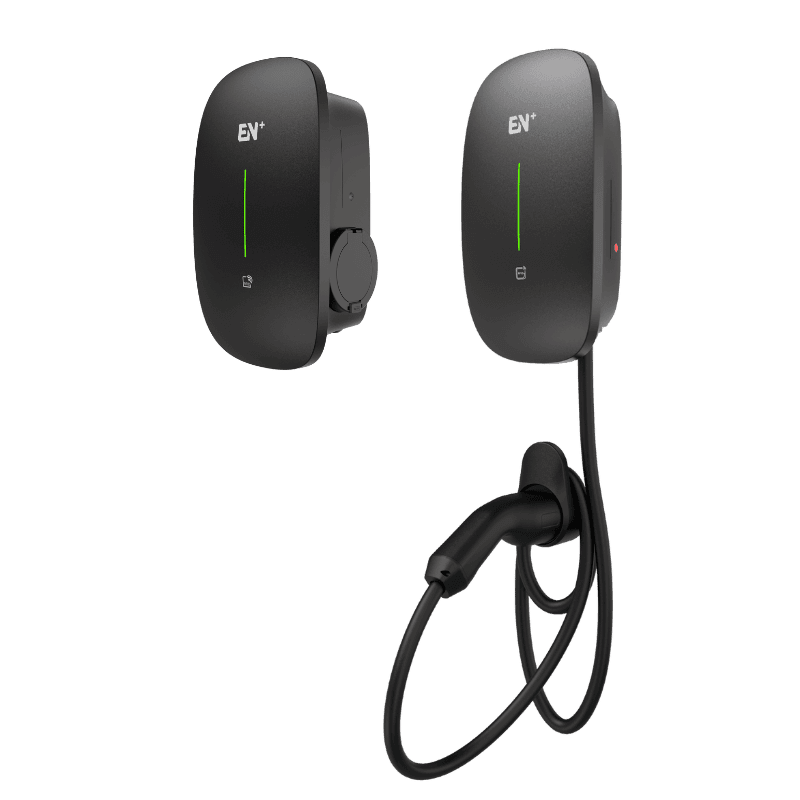

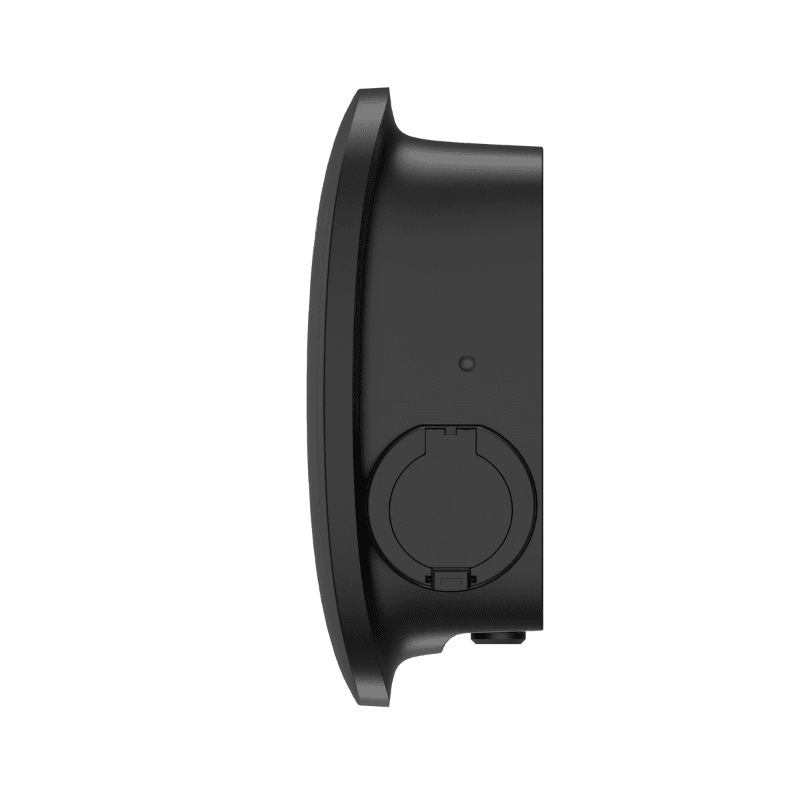

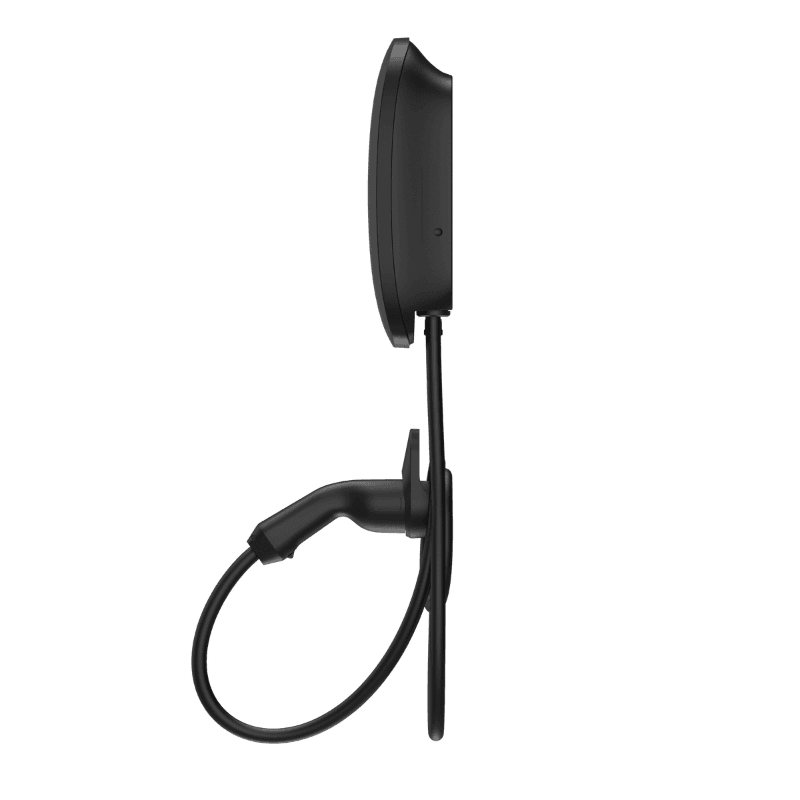

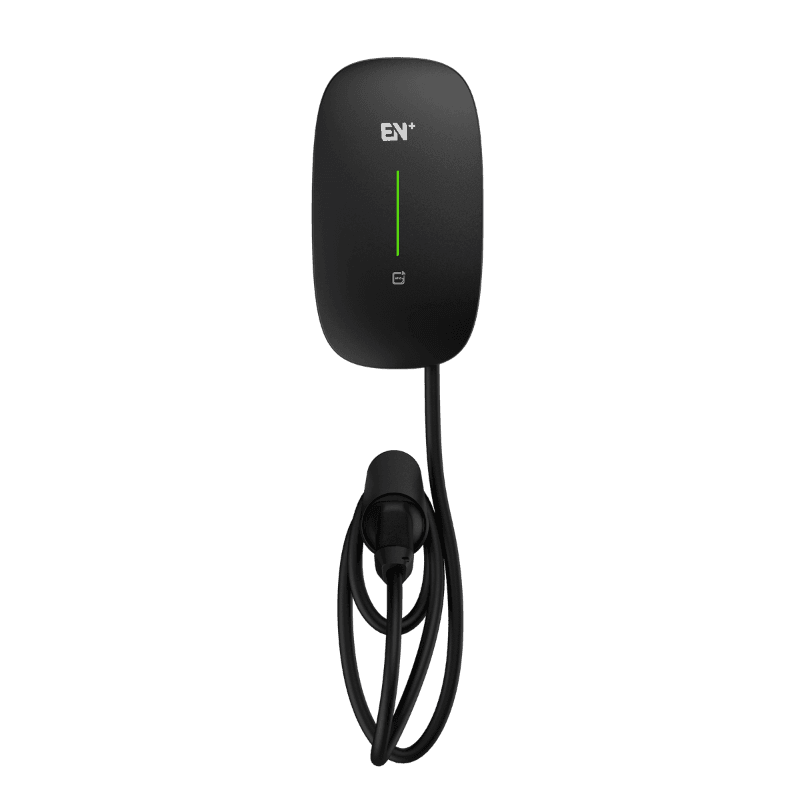

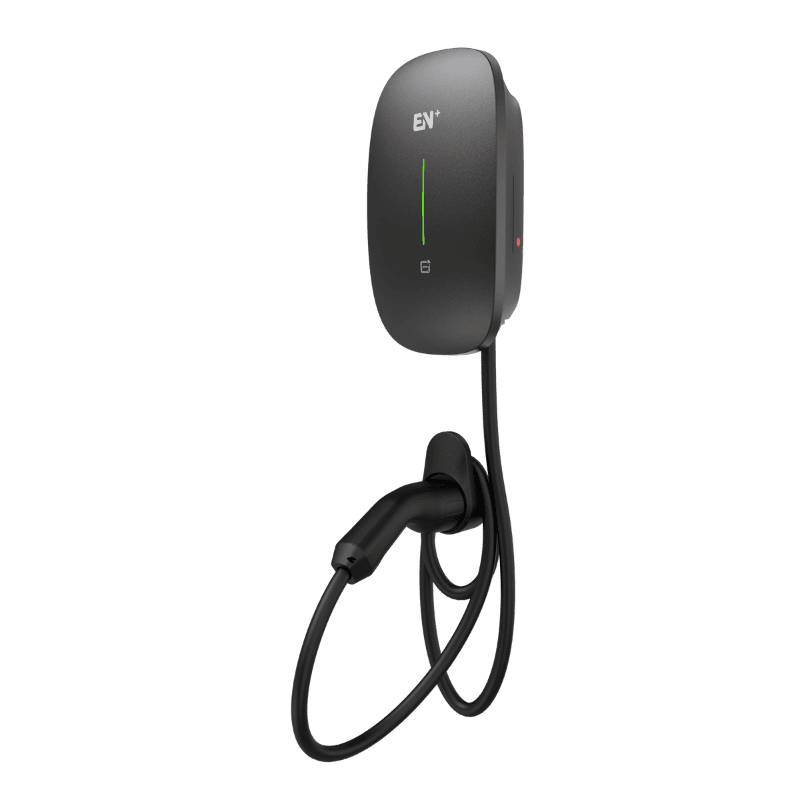

Available in two versions: Type 2 Cable version (5 m) & Type 2 Socket version
Upgraded from the previous Caro generation, Caro Plus delivers stronger protection, smarter connectivity, and full EU compliance. Designed for European homes, it combines automotive-grade quality with flexible installation and future-ready OCPP 2.0.1 smart control.
Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug to Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth
Safer & Stronger Design

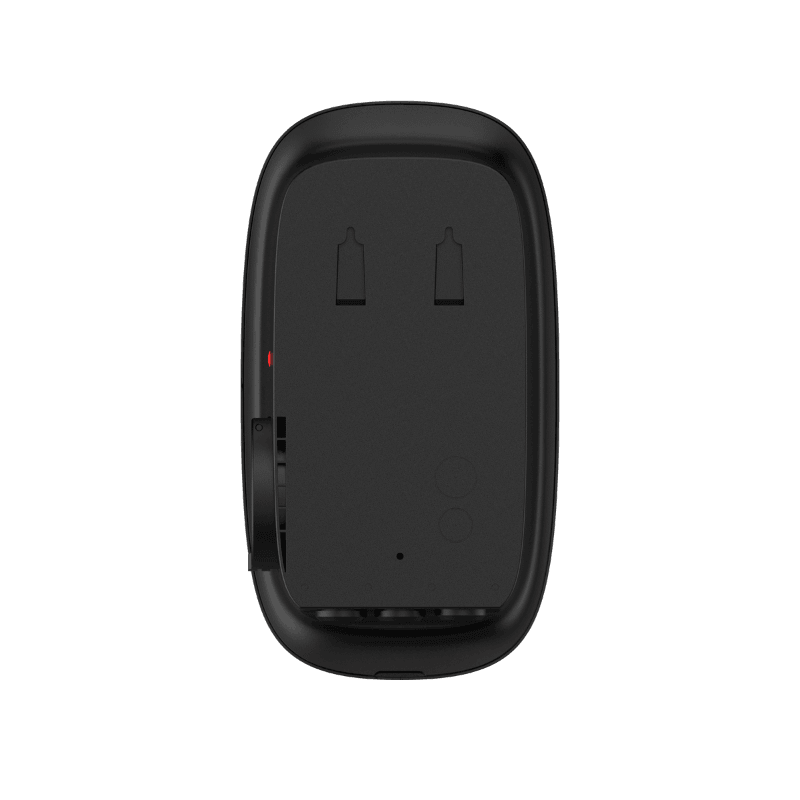

Enhanced to IK10 impact protection, supporting both rear and bottom cable entry. Manual cover opening prevents appearance damage, while upgraded internal protection ensures long-term safety.
Smarter & Fully Compliant
Supports OCPP 2.0.1 & EMS TCP/RTU, enabling dynamic load balancing and PV integration. Certified to CE / CB / RoHS / REACH, with eco-friendly 95 % recyclable packaging and automotive-grade reliability tests.
Specification
Maximum Charging Power
- 7 kW/11kW
Dimension
- 365 x 201 x 139 mm (Socket version)
- 365 x 201 x 99.5 mm (Cable version)
Power Measurement Accuracy
- 2%
Voltage
- 400V AC (11kW)
- 230V AC (7kW)
Current
- 32A( 7kW)
- 16A (11kW)
Charge Connector
- Type 2 Socket
- Type 2 Cable (5m)
Enclosure Material
- PC
Installation
- Wall-mount / Pole-mount (Optional)
Start Mode
- Plug to Charge / RFID card / App
Communication
- Wi-Fi & Ethernet & Bluetooth(Standard)
- Wi-Fi & Ethernet & Bluetooth & 4G(Optional)
Certification
- CE, CB, RoHS, Reach, EN 18031-1
Safety Protection
- IK10
- IP54 (Socket version)
- IP65 (Cable version)
Operating Temperature
- -30℃ to + 50℃
FAQs for EN Plus EV Charger
- What is the charging speed of the charger?
Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Caro Pro Series Home Wallbox can provide the following ranges after 1 hour of charging:
22kW version: 147 kilometers
- How to monitoring the charging progress of the EV charger?
You are able to monitor our Saro Series Home Wallbox through your mobile App, our Evchargo Cloud software system, and the Led Indicator on the charger.
- Which types of electric vehicles is this product compatible with?
This product is compatible with all Type 2 EV models.
