Mobox Series DC Charger
Standard:
Mobox is a compact DC fast charger designed for commercial EV charging applications such as public charging stations, parking facilities and fleet depots. With a space-saving design and stable 40kW charging power, it provides an efficient solution for locations where installation space or grid capacity is limited.
Developed by an experienced EV charging manufacturer, Mobox also supports flexible customization including power upgrades, branding and appearance design to meet different project requirements.
- 40kW DC fast charging
- 200–1000V wide output range
- CCS2 charging connector
- OCPP 1.6 compatible
- OEM / ODM customization available
Need Help? Please contact us today for a free consultation and pricing.
* Please contact us directly for custom order or order in the large quantities.
Need an urgent quote?
7*24Hrs Online Chat for fastest price estimate
Specifications
Product Name
Mobox Series DC Charger
Input Electrical Sepc
3P+N+PE, 400 V AC ±10%, 63 A, 50 / 60 Hz,
Output Electrical Sepc
40 kW, 200-1000V DC, 133.3 A
Efficiency
Max 95.5%
Power Factor
≥0.99@50%~100% Loading
THD
≤5%@100% Loading
Charge Connector
CCS2 (5M)
Number of Cable
Singel
OCPP
OCPP 1.6 Json
Metering Accuracy
1% w/ MID meter
LCD Display
10′ Colour Touch Display
Language Switch
English, Japanese, French, German, Italian, Swedish
Enclosure Protection
IK10 (except screen), IP54
Start Mode
App / QR code / RFID Card / POS (Optional)
Certification
CE / CB
Other Attributes
Manufacturer Location
Shenzhen, China
Enclosure Material
Galvanized Steel
Colour
Granite Gray (RAL 7026)
Installation
Wall-mount / Pole-mount (Optional)
RCD
Type A
Emergency Stop
Yes
Warranty
2 years
Cooling Method
Fan Cooling
Operating Temperature
-30°C to +50°C
Operating Humidity
5%-95%
Operating Altitude
≤2000 m
Packaging and Lead Time
Product Dimension
550 x 300 x 850 mm (W x D x H)
Package Dimension
746 x 450 x 1215 mm (L x W x H)
External Package
Wood Case
Net Weight
79 kg
Gross Weight
110 kg
Main documents
Documents
Take a Close Look

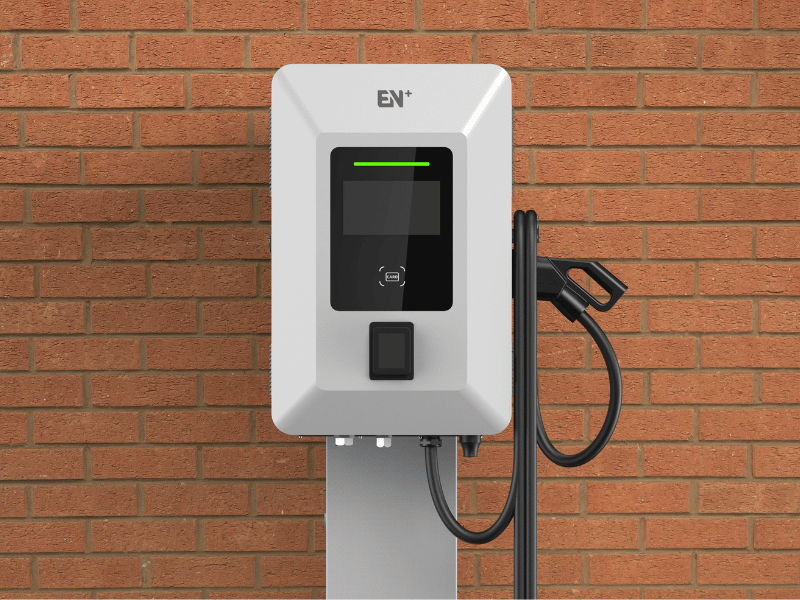

Compact design for flexible installation

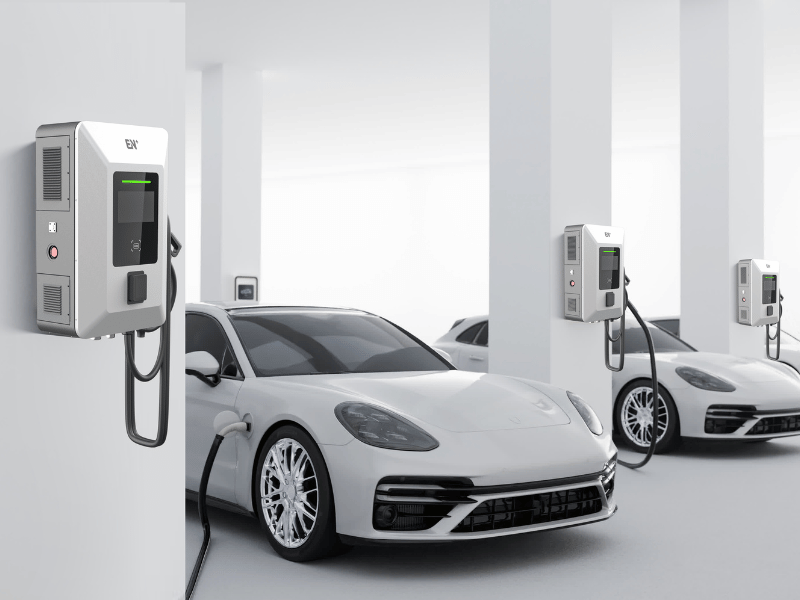

Mobox features an integrated compact structure that requires minimal installation space. It can be installed on a wall or pole, making it suitable for parking garages, commercial parking lots and small charging stations where space is limited.
Efficient 40kW DC charging
The 40kW charging power provides a balanced solution between charging speed and infrastructure cost. It is suitable for urban charging networks, destination charging locations and fleet charging sites.
This level of power is widely used in many commercial charging projects where ultra-high power chargers are not required.
Smart operation and payment support
Mobox supports multiple authentication and payment methods including mobile app, RFID card, QR code and optional POS payment. It can be integrated into commercial charging networks and used for public charging services.
OCPP compatible for platform integration
The charger supports OCPP 1.6 Json protocol, allowing easy integration with most EV charging management platforms. Operators can remotely monitor chargers, manage charging sessions and analyze operational data.
Flexible power customization
The standard Mobox model provides 40kW DC charging. For projects that require different power levels, the system can be developed into higher power versions such as 50kW or 60kW based on customer requirements.
This flexibility allows the product to adapt to different market and project needs.
OEM and design customization
As a manufacturer, we support OEM branding and product customization for partners. This includes logo branding, housing design adjustment and product configuration customization to support different market positioning.
