Mobox Series DC Charger
Standard:
Mobox is a compact DC fast charger designed for urban public charging, commercial parking, and locations where space, installation speed, and flexibility are critical. With an integrated and lightweight design, Mobox enables fast deployment, easy relocation, and reliable DC charging performance in environments where traditional large DC chargers are difficult to install or operate.
- Rated Power: 40kW/50kW/60kW customizable
- Number of Connector: Single Gun or Dual Guns (customizable)
Need Help? Please contact us today for a free consultation and pricing.
* Please contact us directly for custom order or order in the large quantities.
Need an urgent quote?
7*24Hrs Online Chat for fastest price estimate
Specifications
Product Name
Mobox Series DC Charger
Input Electrical Sepc
3P+N+PE, 400 V AC ±10%, 63 A, 50 / 60 Hz,
Output Electrical Sepc
40 kW/50kW/60kW (customizable ), 200-1000V DC, 133.3 A
Efficiency
Max 95.5%
Power Factor
≥0.99@50%~100% Loading
THD
≤5%@100% Loading
Charge Connector
CCS2 (5M)
Number of Cable
Singe Gun or Dual Guns (customizable)
OCPP
OCPP 1.6 Json
Metering Accuracy
1% w/ MID meter
LCD Display
10′ Colour Touch Display
Language Switch
English, Japanese, French, German, Italian, Swedish
Enclosure Protection
IK10 (except screen), IP54
Start Mode
App / QR code / RFID Card / POS (Optional)
Certification
CE / CB
Other Attributes
Manufacturer Location
Shenzhen, China
Enclosure Material
Galvanized Steel
Colour
Granite Gray (RAL 7026)
Installation
Wall-mount / Pole-mount (Optional)
RCD
Type A
Emergency Stop
Yes
Warranty
2 years
Cooling Method
Fan Cooling
Operating Temperature
-30°C to +50°C
Operating Humidity
5%-95%
Operating Altitude
≤2000 m
Packaging and Lead Time
Product Dimension
550 x 300 x 850 mm (W x D x H)
Package Dimension
746 x 450 x 1215 mm (L x W x H)
External Package
Wood Case
Net Weight
79 kg
Gross Weight
110 kg
Main documents
Documents
Take a Close Look

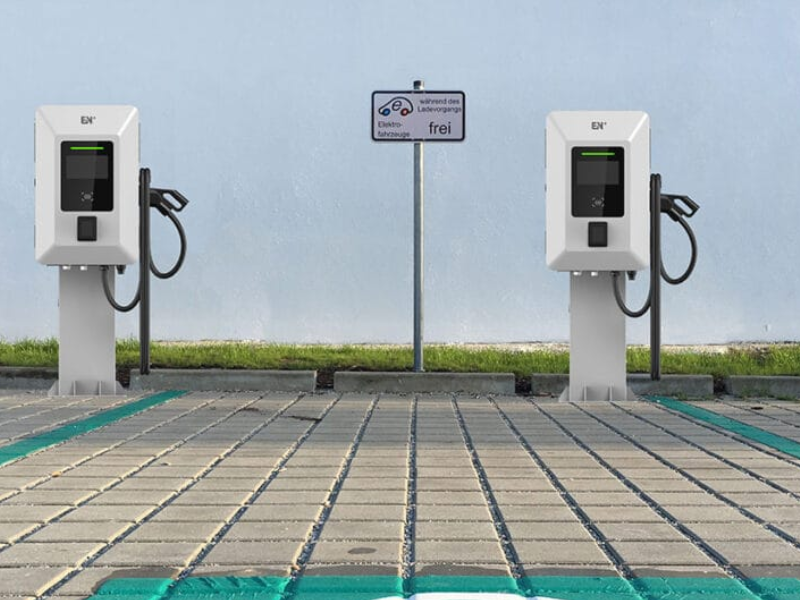

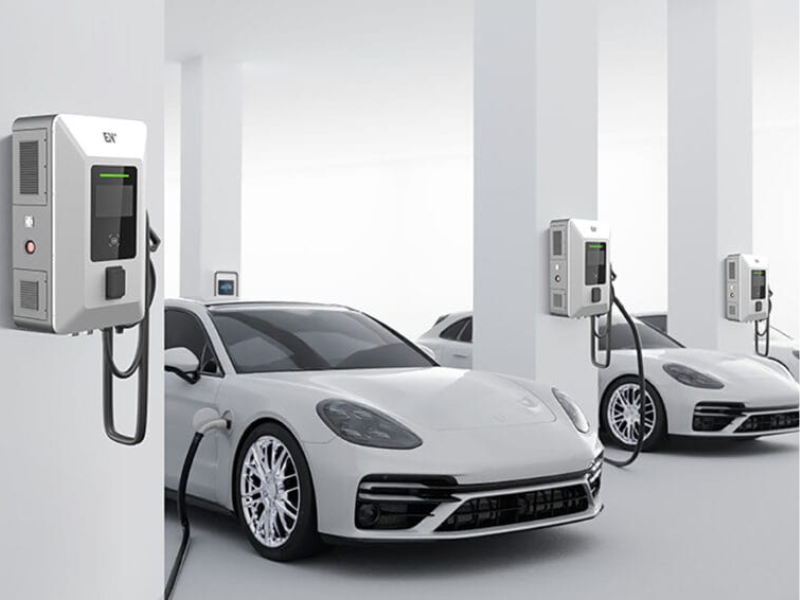

Supports flexible deployment

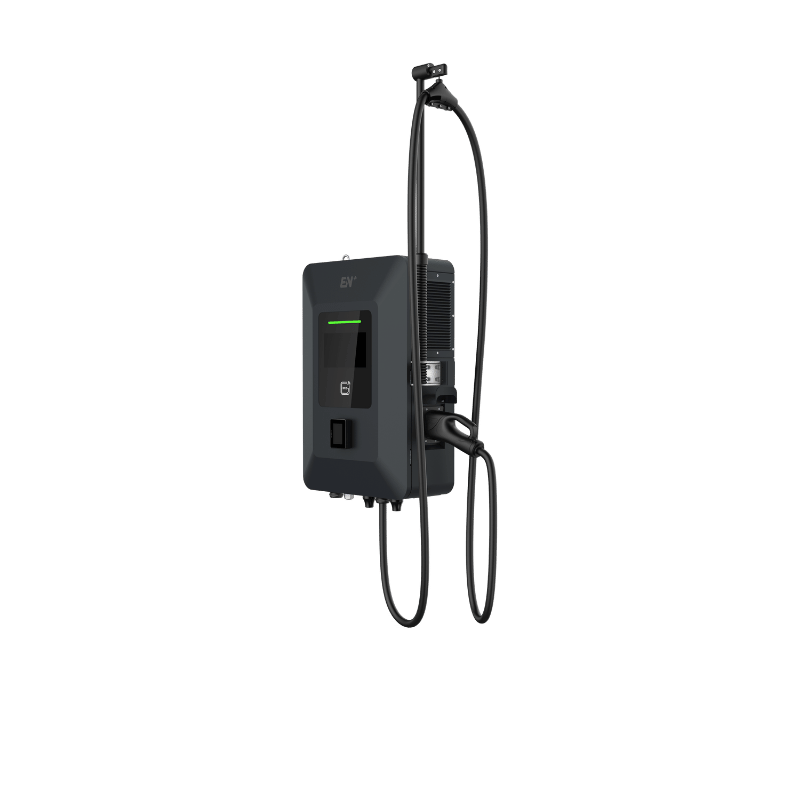

Mobox Series is available in 3 different versions: wall-mount, pole-mount, and movable. Thereinto, the movable version is specifically designed for Fleet enterprises, enabling more flexible and convenient charging solutions.
Safe & Fast Charging
100km in 30 mins. Compliant with OCPP Json1.6, global safety standards. High-level safety protection and multi-dimensional security ensure customer data safety.
High Efficiency for Lower Energy Loss
Mobox achieves up to 95.5% efficiency with a power factor ≥0.99, reducing energy loss and improving overall charging efficiency.
Multiple Start and Payment Options
Supports App, QR code, RFID card, and optional POS terminal for flexible charging start and payment scenarios.
10-Inch Touchscreen for Intuitive Operation
Equipped with a 10-inch color touch display, providing clear charging status and simple user interaction.

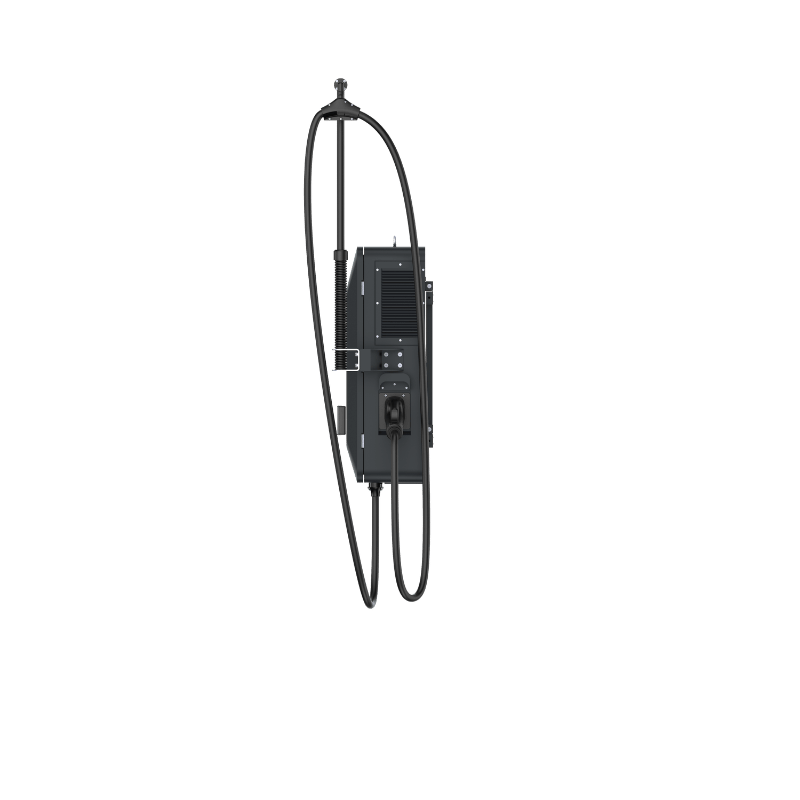

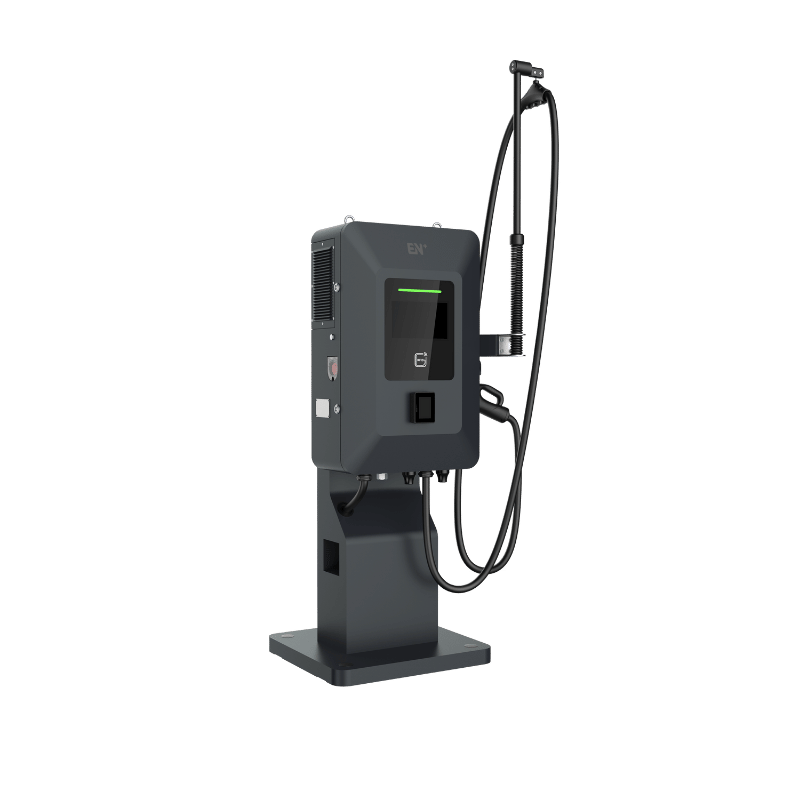

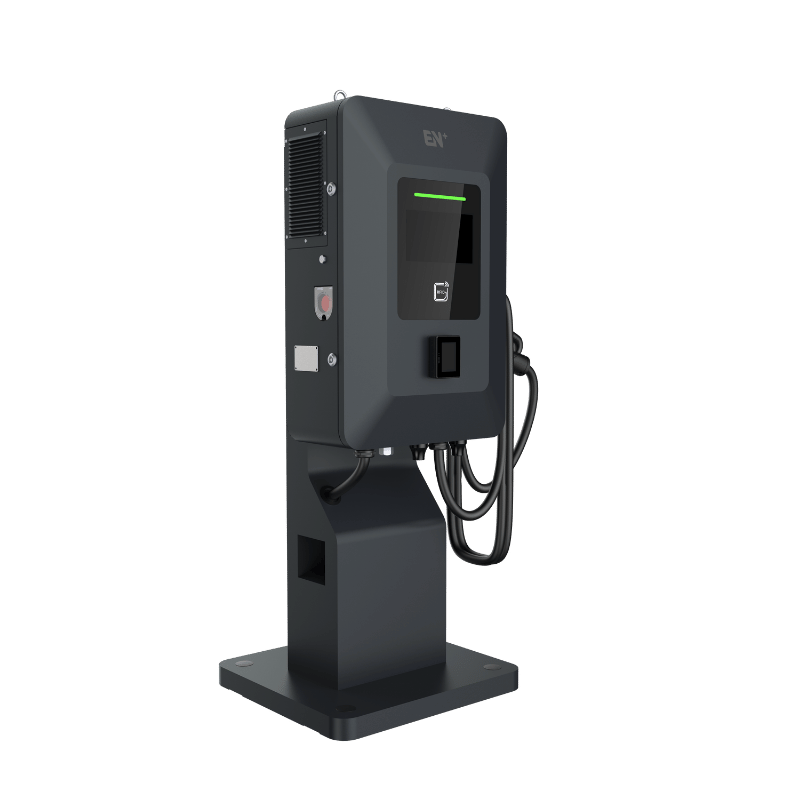

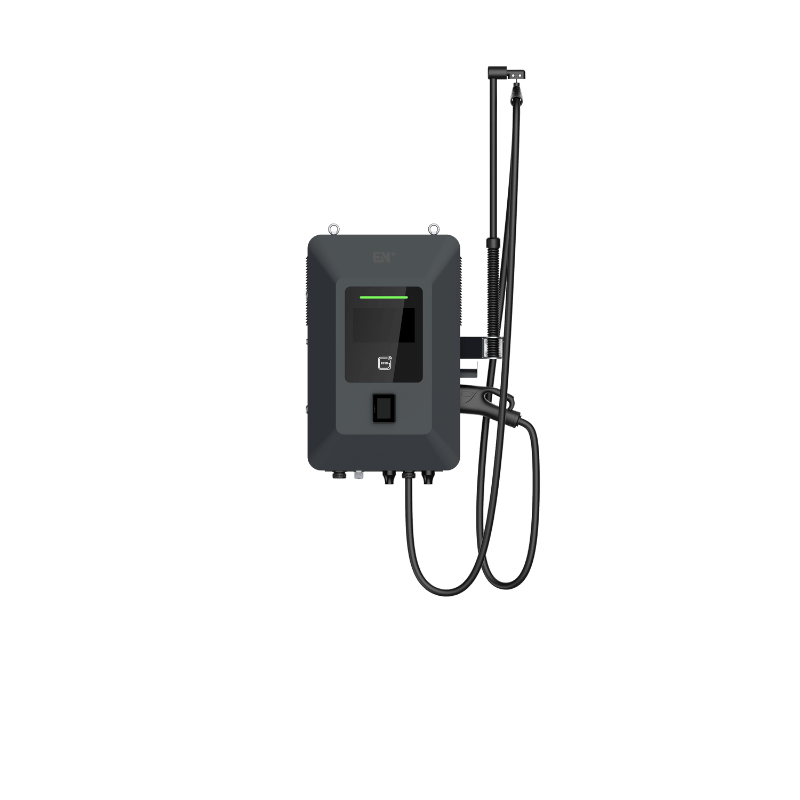

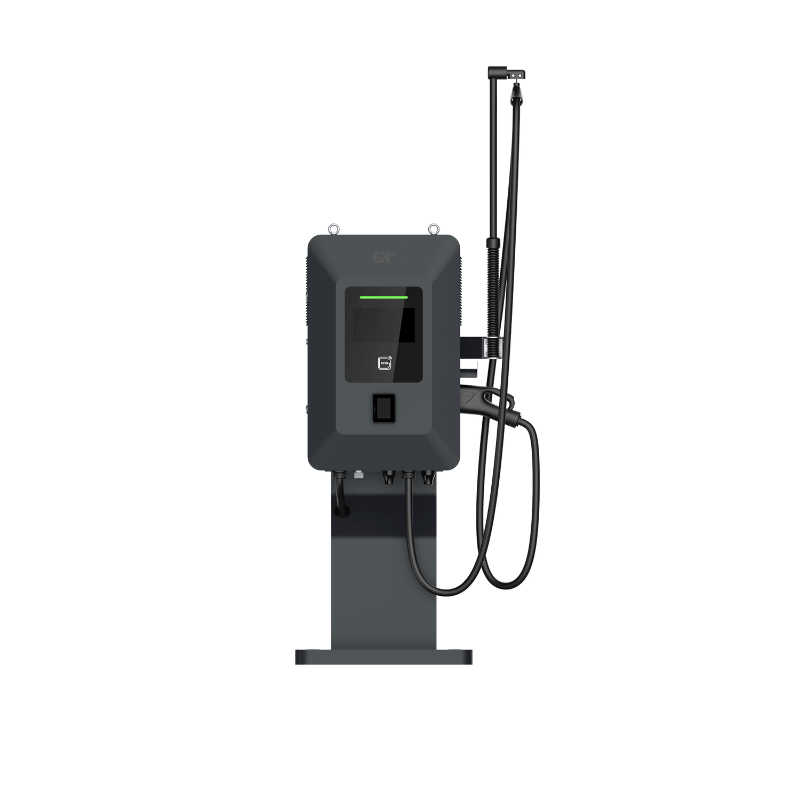

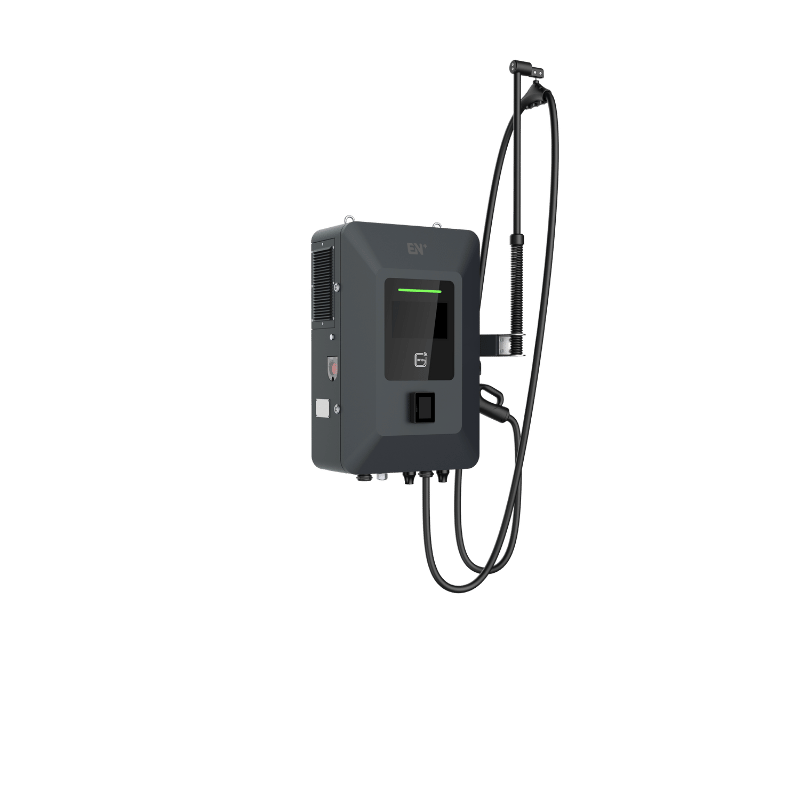

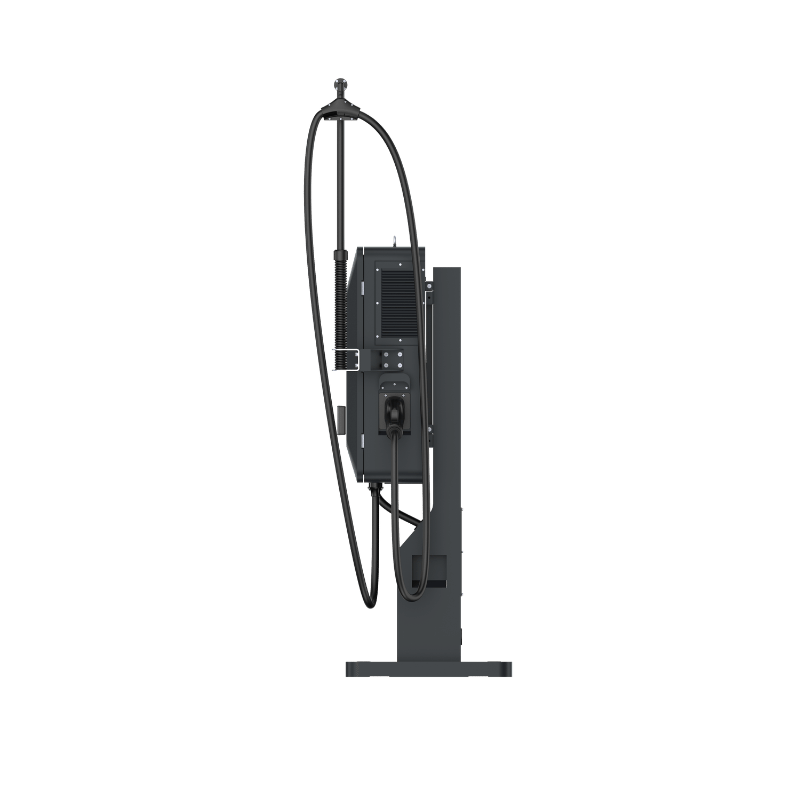

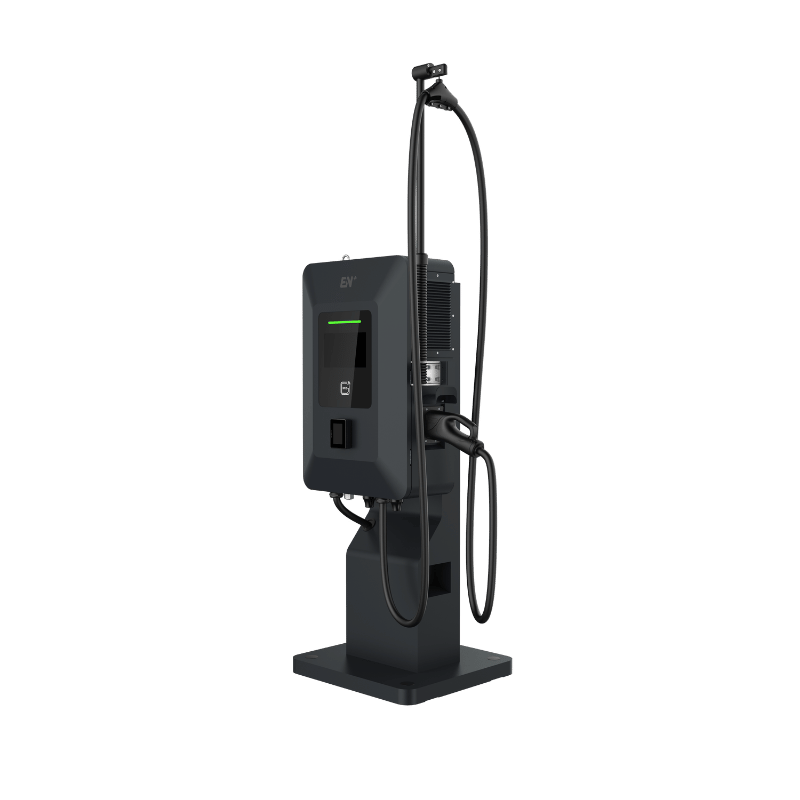

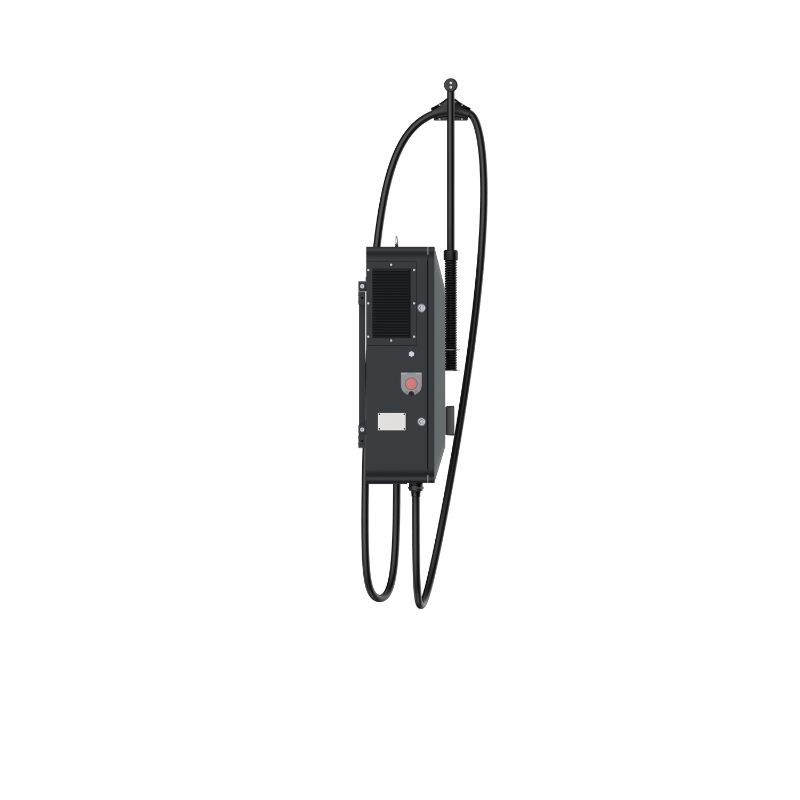

Flexible Installation Options
Supports wall-mounted or pole-mounted installation, adapting to different site layouts and space constraints.
High Protection and Public-Site Durability
Designed with IP54 ingress protection and IK10 impact resistance (excluding screen), suitable for demanding public environments.
Certified Electrical and Cybersecurity Compliance
Certified to CE and CB standards and compliant with EN 18031-1 cybersecurity requirements, ensuring electrical safety and secure network operation.
Multi-Language User Interface
Mobox supports a multilingual user interface, including English, Japanese, French, German, Italian, and Swedish, allowing users to operate the charger in their local language.
