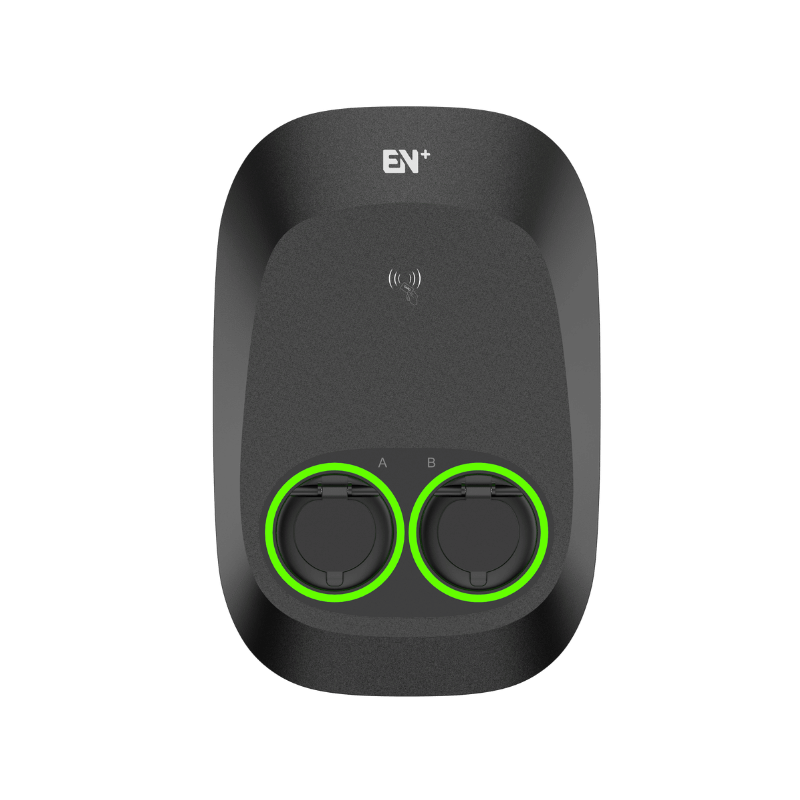

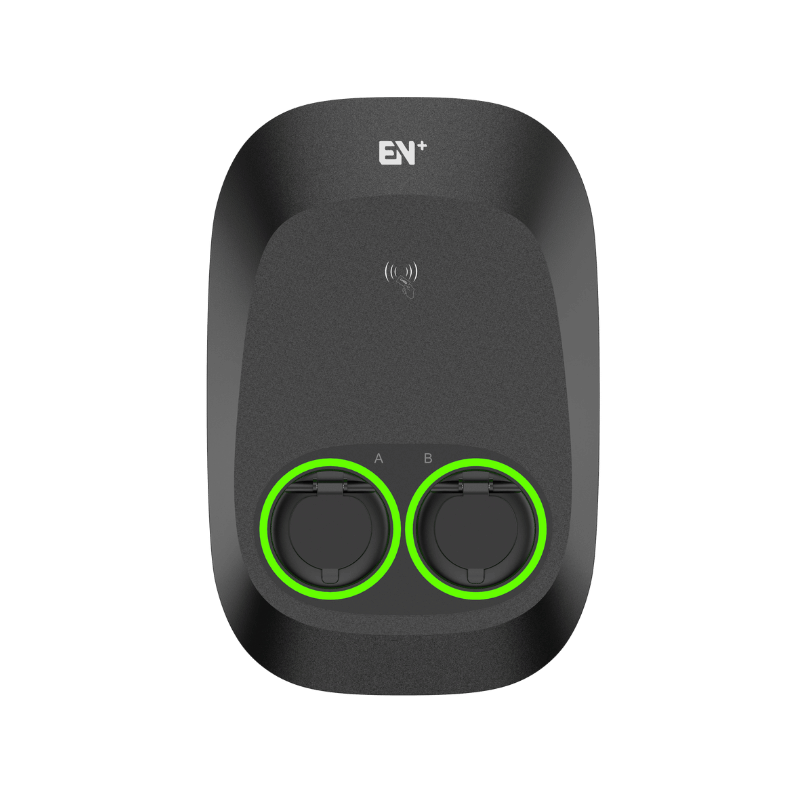

Nano Series Duo Wallbox
Standard:
Nano Duo Wallbox is a dual-connector AC charger designed for residential and semi-public environments such as homes, shared parking areas, and workplaces. By integrating two charging outlets into one compact unit, it provides an efficient solution for locations where space and electrical capacity are limited.
Nano Duo Wallbox is available in different power configurations to match site requirements. In the standard version, when both connectors are charging simultaneously, each outlet delivers up to 11 kW, while single-side charging can reach up to 22 kW. A high-power version is also available, allowing both connectors to deliver up to 22 kW simultaneously. The charger supports flexible installation and operation with multiple connector types and charging start options.
Need Help? Please contact us today for a free consultation and pricing.
* Please contact us directly for custom order or order in the large quantities.
Need an urgent quote?
7*24Hrs Online Chat for fastest price estimate
Specifications
Product Name | Nano Series Duo Wallbox |
|---|---|
Electrical | 1x22KW / 2x22KW, 400V AC, 1x32A/2x32A, 50/60Hz, |
Product Standard | EU, FR |

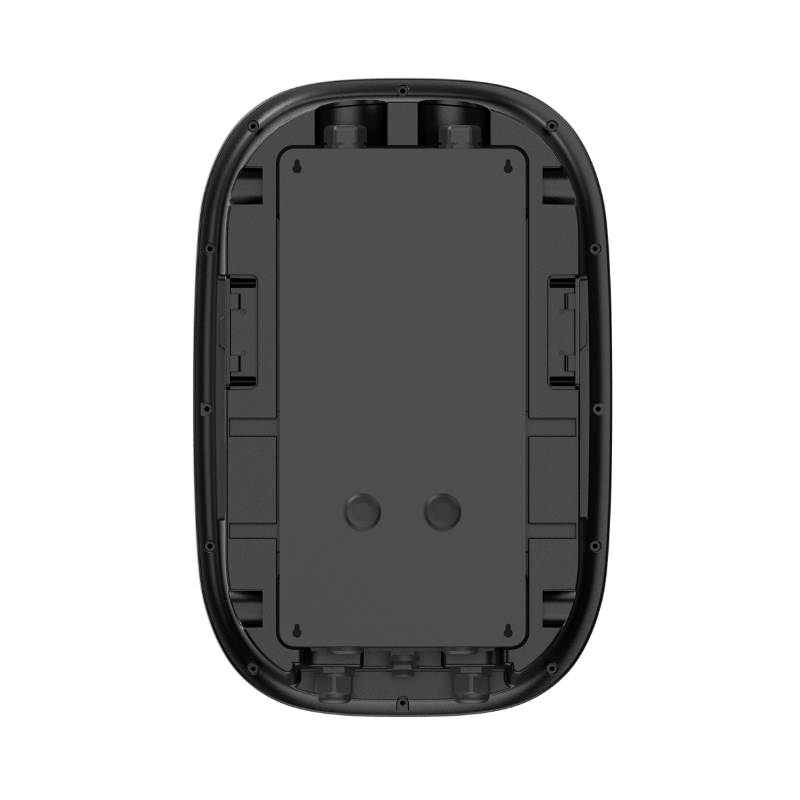

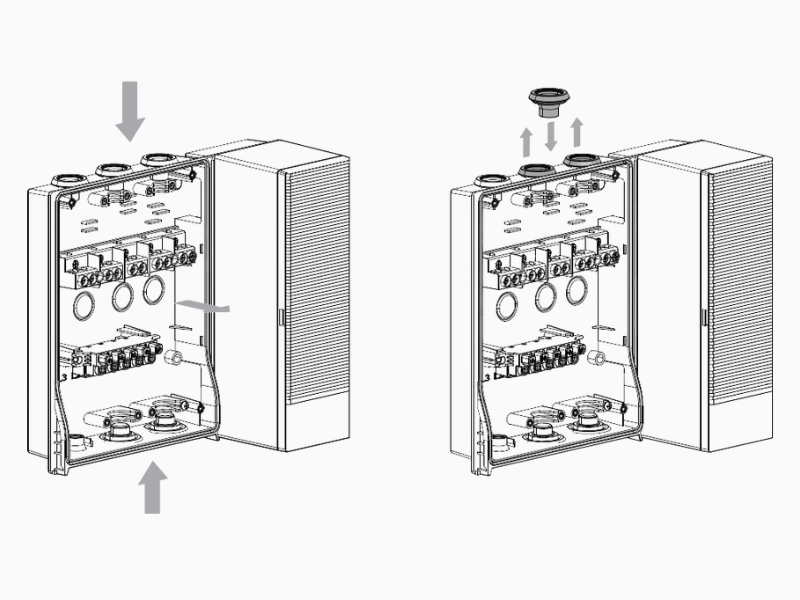

Cabling Method | Top Cabling, Bottom Cabling, Rear Cabling |
Certified | CE-RED, MID Cerified Meter(optional), CE, CB, RoHS, Reach |
OCPP | OCPP 1.6 Json / OCPP2.0.1J (Upgradable) |
Payment | AD Hoc / Kiosk solution / App |
Metering Accuracy | 1% w/ MID meter (optional), 2% w/o MID meter |

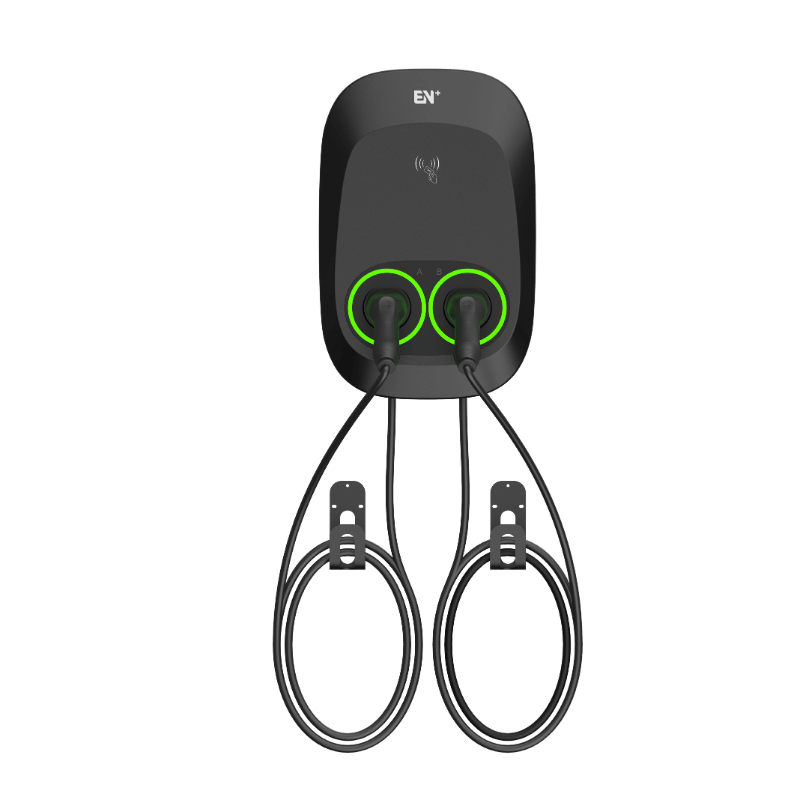

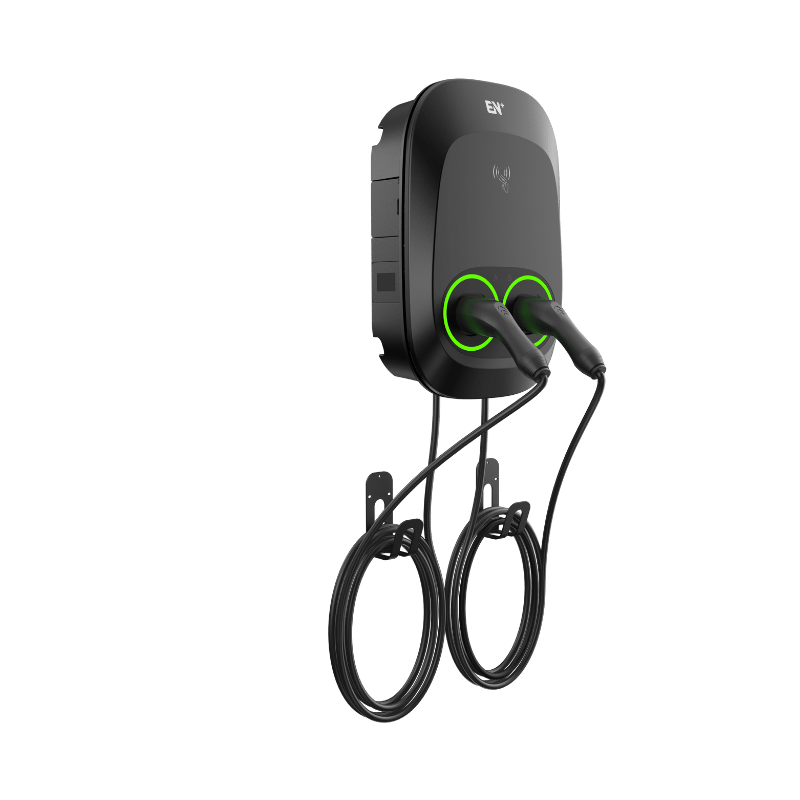

Connector Type | Type 2 Socket, T2S, Type 2 Cable (7M) |
Enclosure Protection | IK10, IP54 |
Start Mode | Plug&Play/RFID card/App |
Other Attributes
Manufacturer Location | Shenzhen, China |
|---|---|
Enclosure Material | PC |
Colour | Black (PANTONE Black C) |
Installation | Wall-mount / Pole-mount (Optional) |
RCD | 30 mA Type A + 6 mA DC |
RCBO | independent RCBO (Optional) |
Warranty | 2 years |
Operating Temperature | -30℃~+50℃ |
Operating Humidity | 5%-95% |
Operating Altitude | ≤2000 m |
Packaging and Lead Time
Product Dimension | 540*360*199mm(H*W*D) |
|---|---|
Package Dimension | Socket Version: 620*466*245mm(L*W*D) / Cable Version: 635*430*345mm(L*W*D) |
External Package | Carton |
Net Weight | Socket Version: 10kg / Cable Version: 15.7kg |
Gross Weight | Socket Version: 12kg / Cable Version: 18.8kg |
Single Pallet | Socket Version: 30 sets / Cable Version: 20 sets |
Container | 20‘ GP: Socket Version: 300 sets / Cable Version: 200 sets ; 40’GP: Socket Version: 630 sets / Cable Version: 440 sets |
Main documents
Documents
Take a Close Look
Dual Charging in One Compact Unit

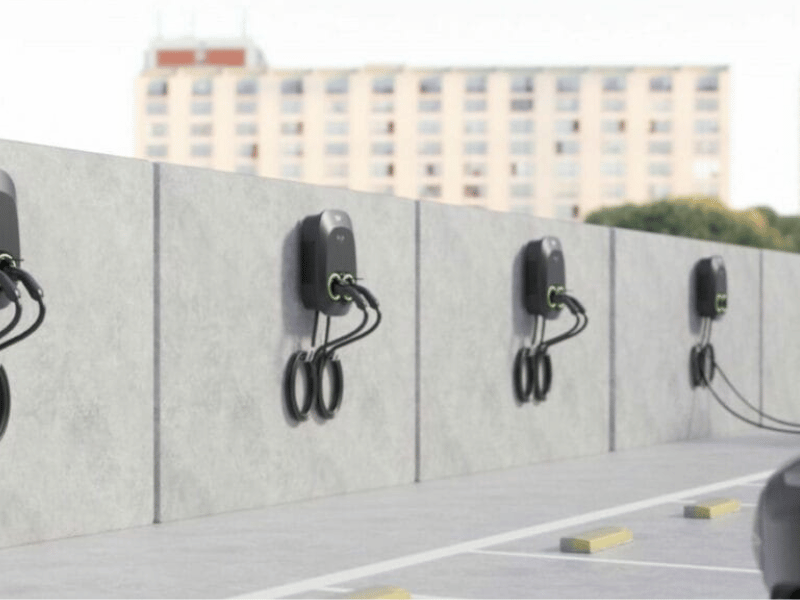

Two charging connectors are integrated into a single wallbox, allowing two electric vehicles to charge at the same time without installing multiple chargers.
Flexible Power Configuration Options
Available in two power configurations: a standard version with intelligent power sharing (11 kW per outlet during dual charging, up to 22 kW for single charging), and a high-power version delivering up to 22 kW per outlet simultaneously.
Multiple Connector Options

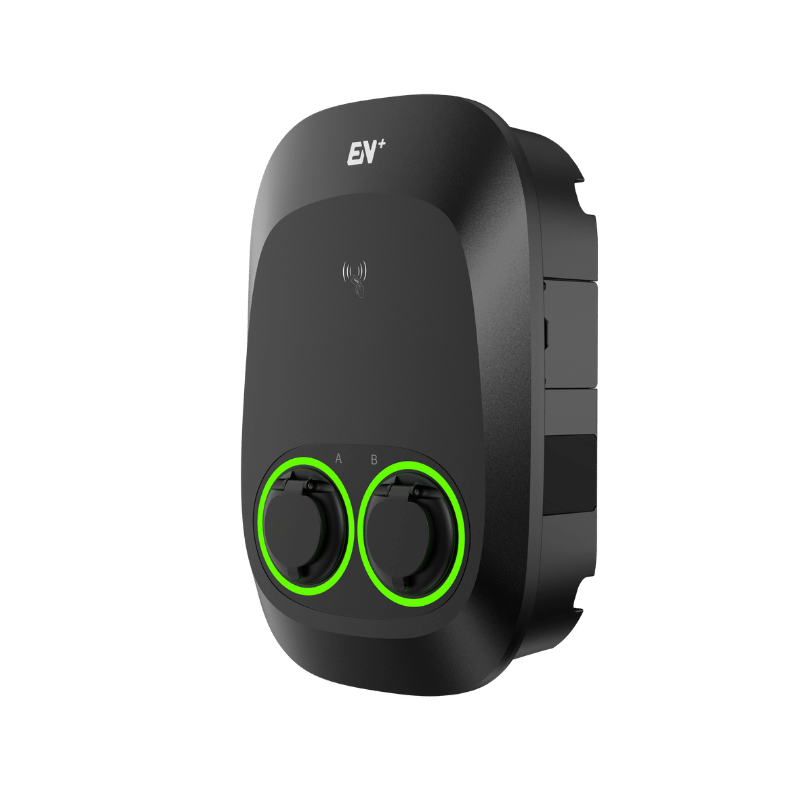

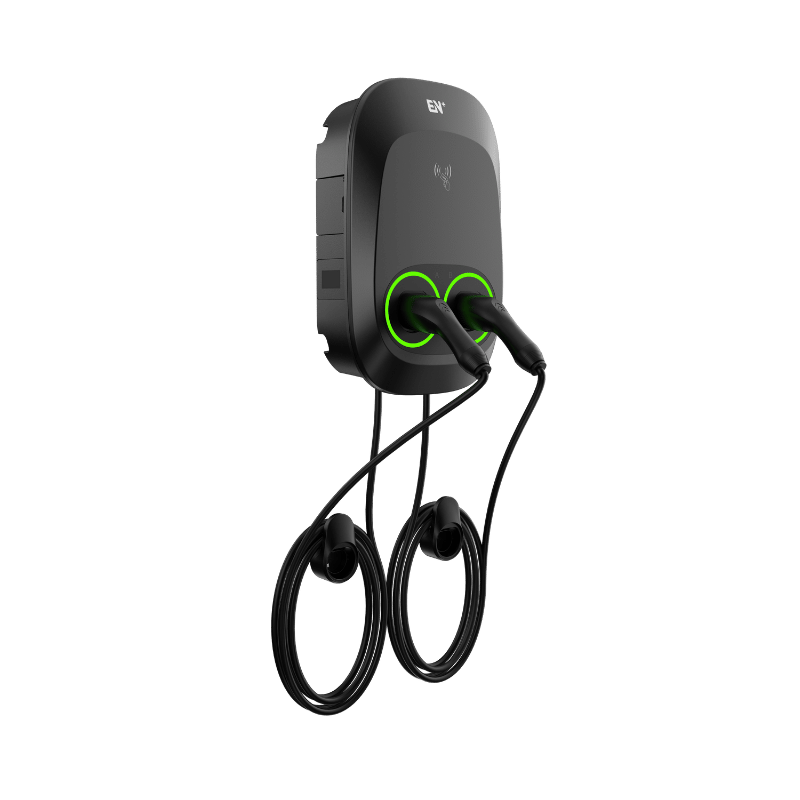

Available with Type 2 Cable, Type 2 Socket, and T2S Socket configurations to suit different regional standards and user preferences.
Multiple Charging Start and Payment Options
Supports Ad Hoc, RFID card, and App-based charging, enabling flexible use across private and semi-public scenarios.
OCPP 1.6J Connectivity
Supports OCPP 1.6J for backend connectivity, remote monitoring, and future platform integration.

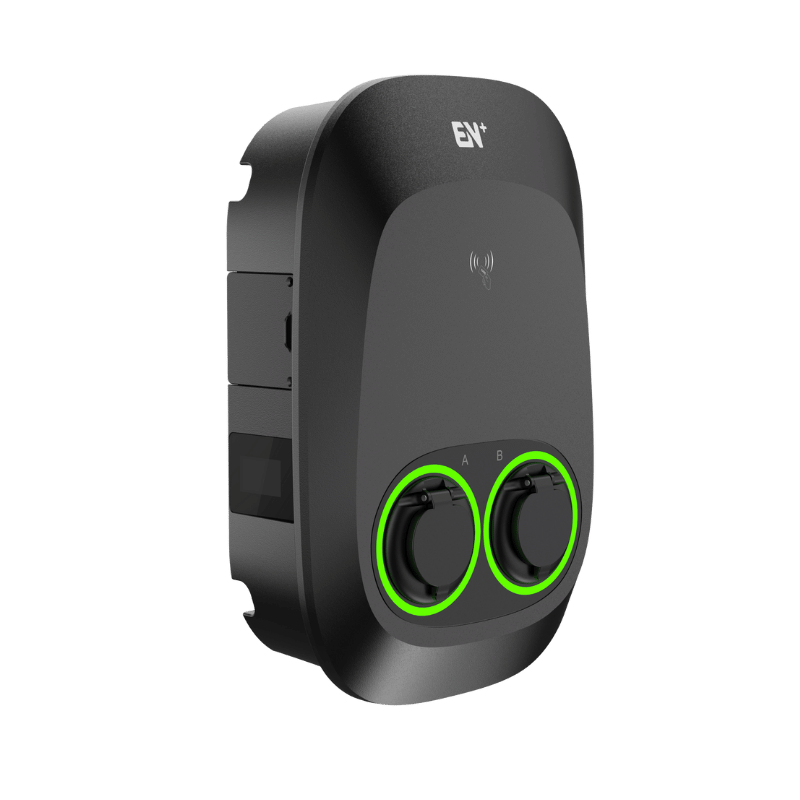

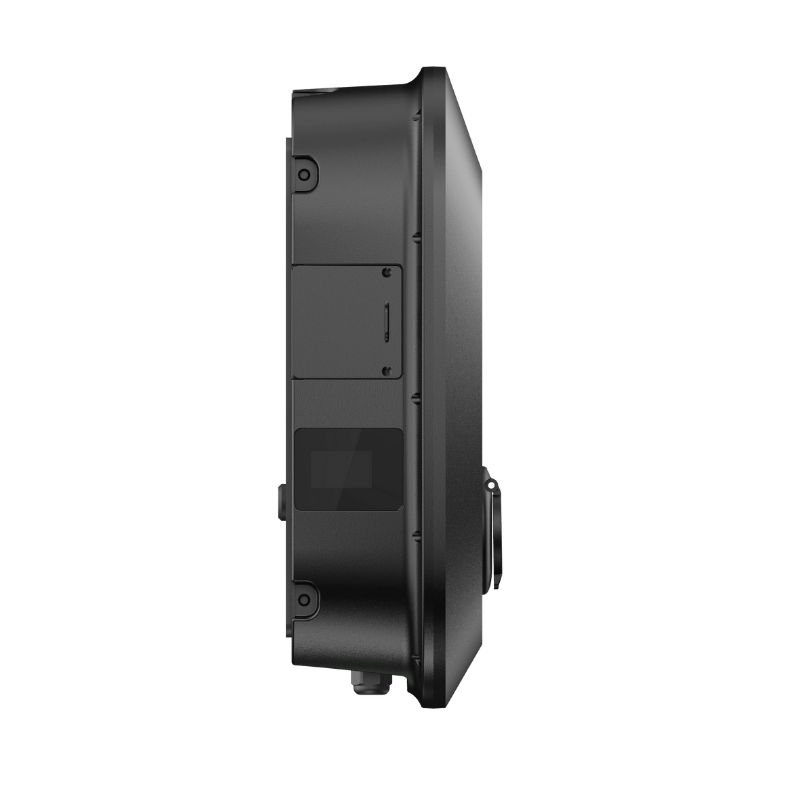

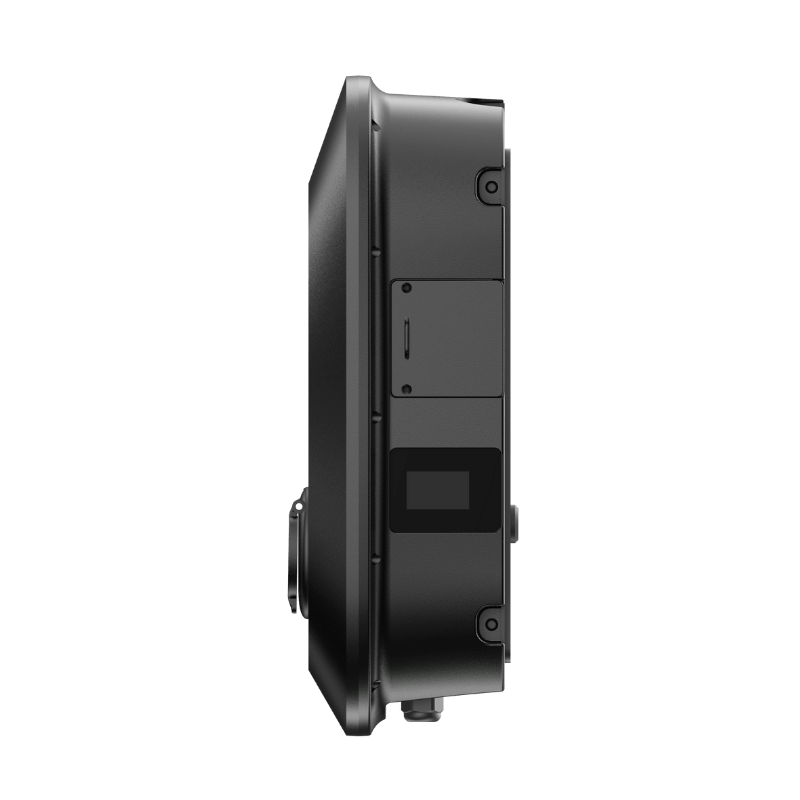

Optional MID-Certified Energy Meter
MID-certified energy metering is available as an option for accurate and compliant energy measurement.
PV and Load Management Ready
Compatible with photovoltaic systems and dynamic load balancing solutions to optimize household energy use and prevent overloads.
