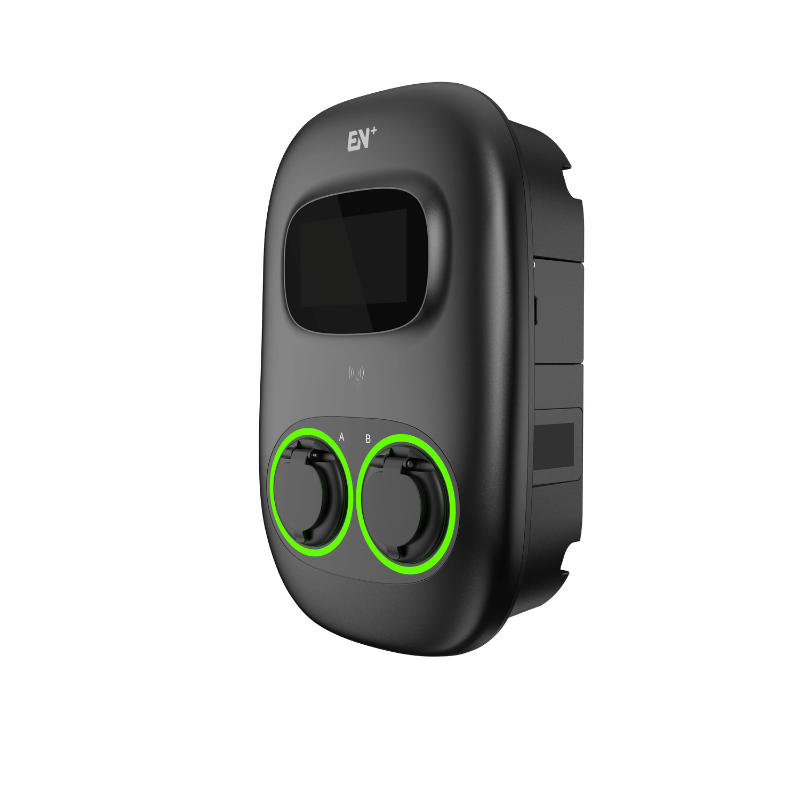

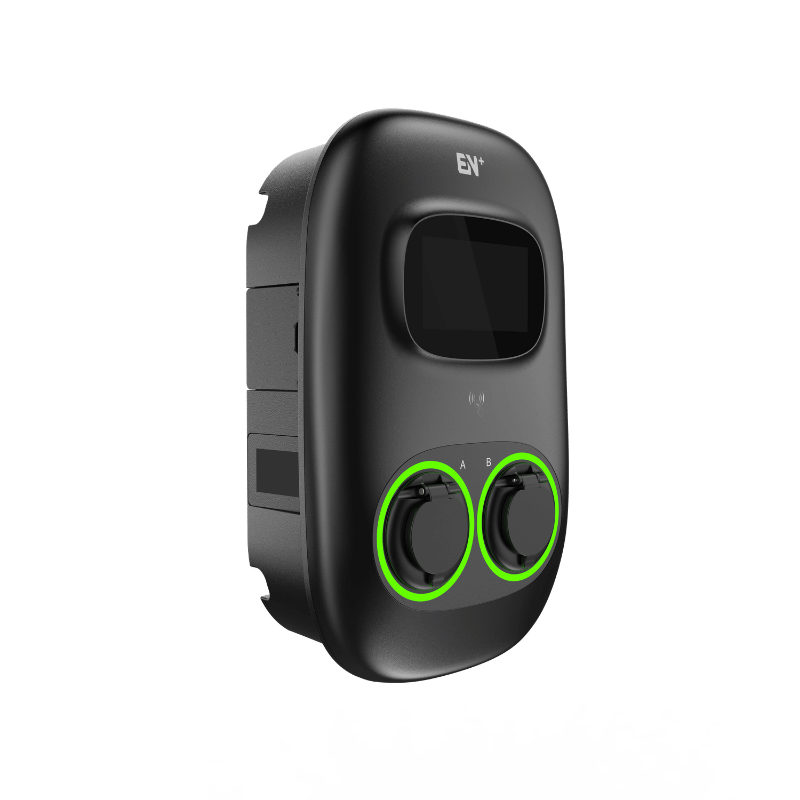

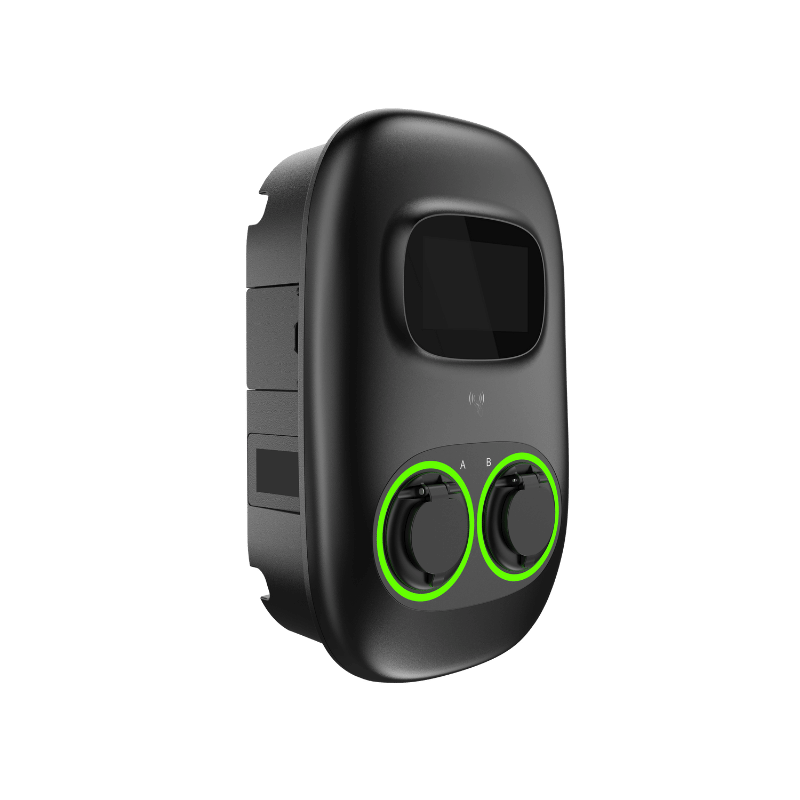

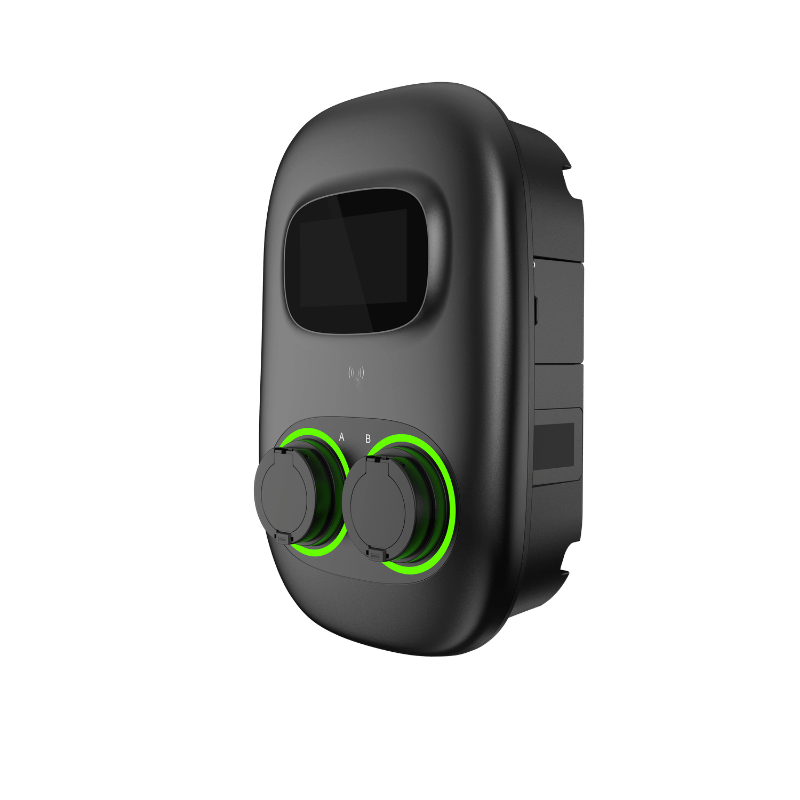

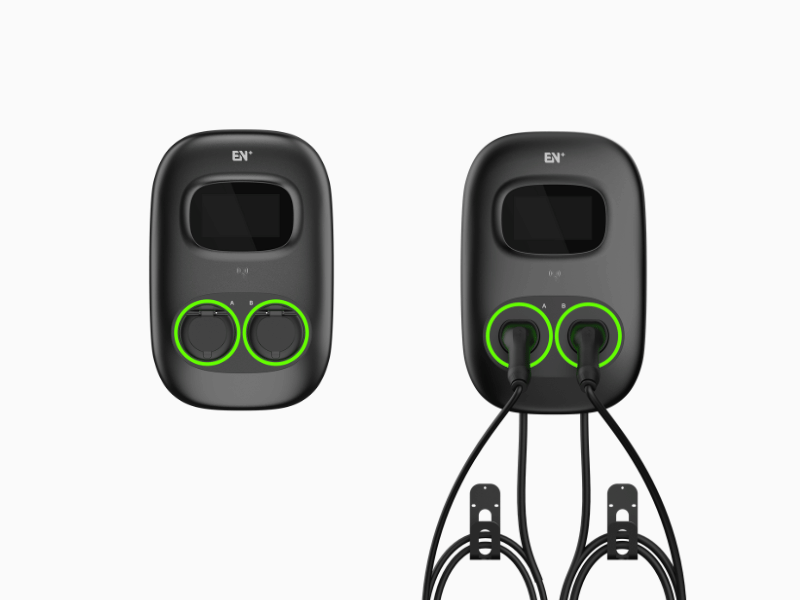

Nano Series Duo Business Wallbox
Standard:

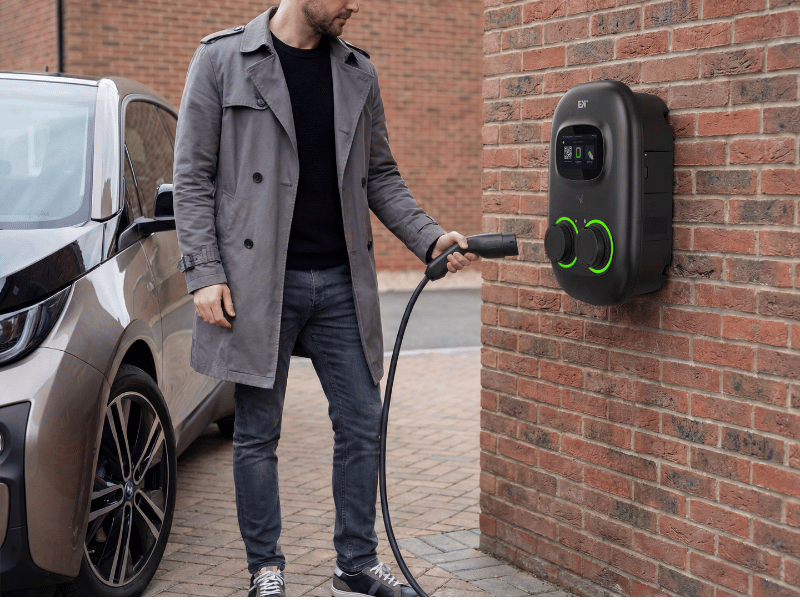

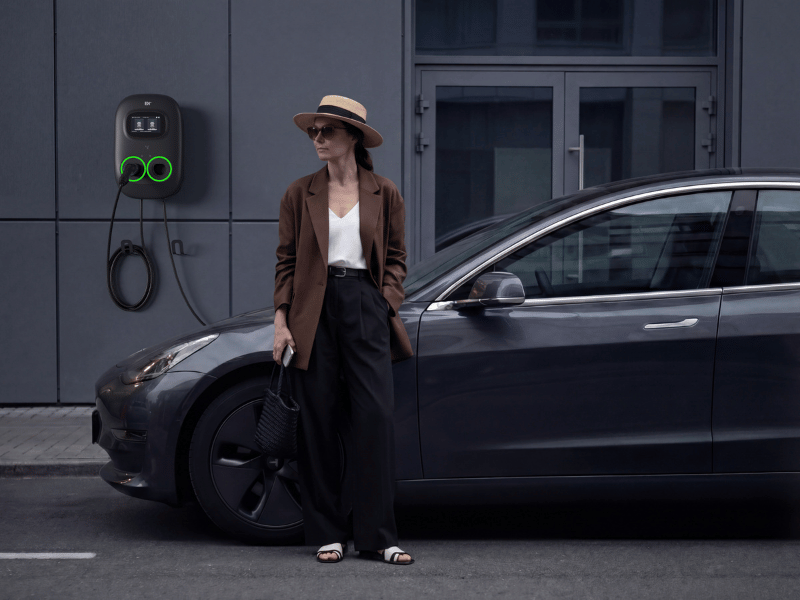

The Nano Dual EV AC charger is EN+’s cutting edge solution for the semi-public scenario such as workplace and residential units.

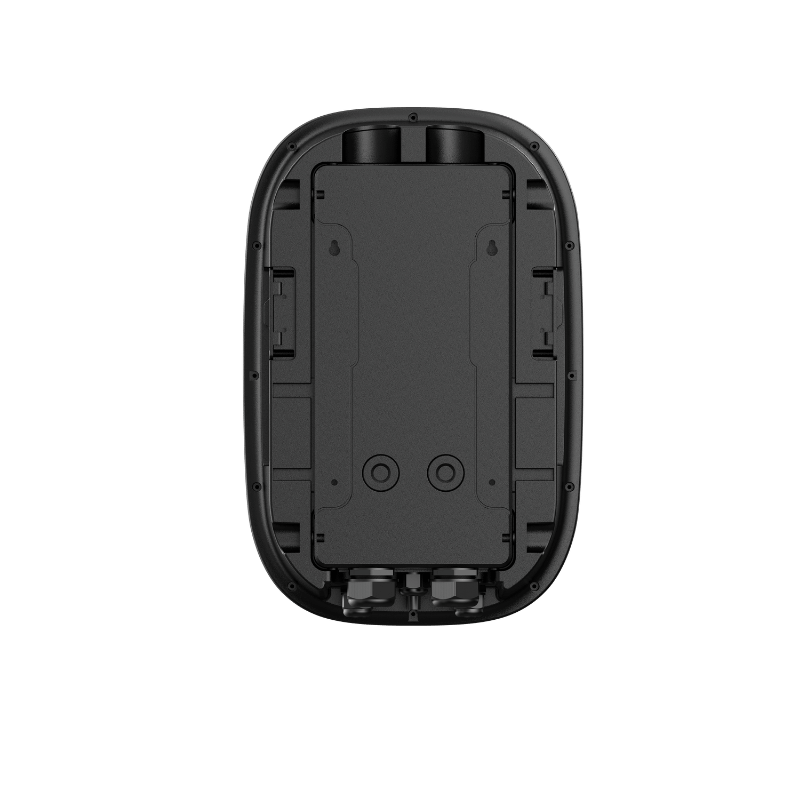

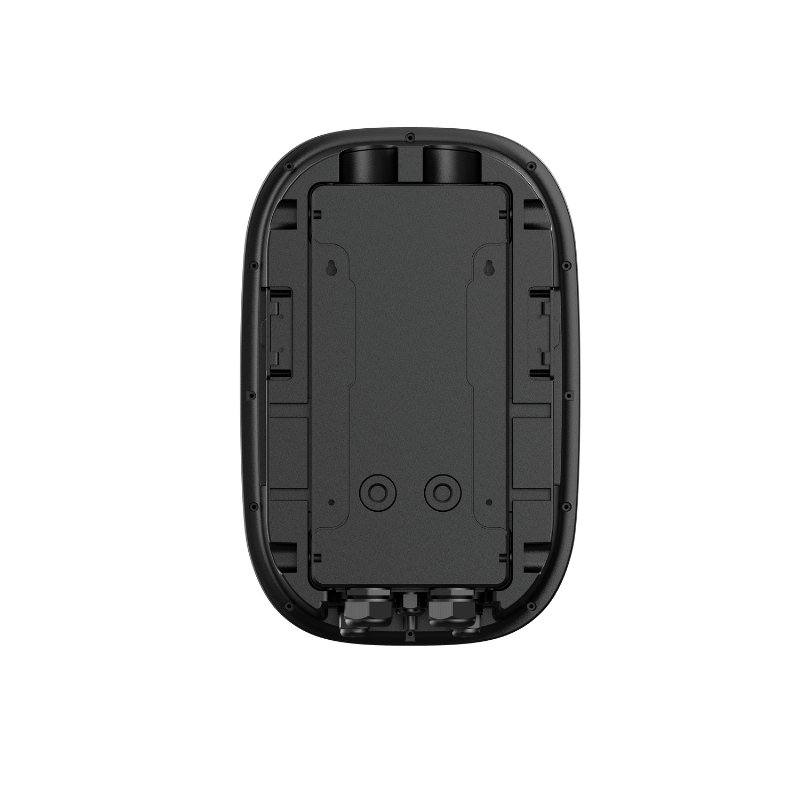

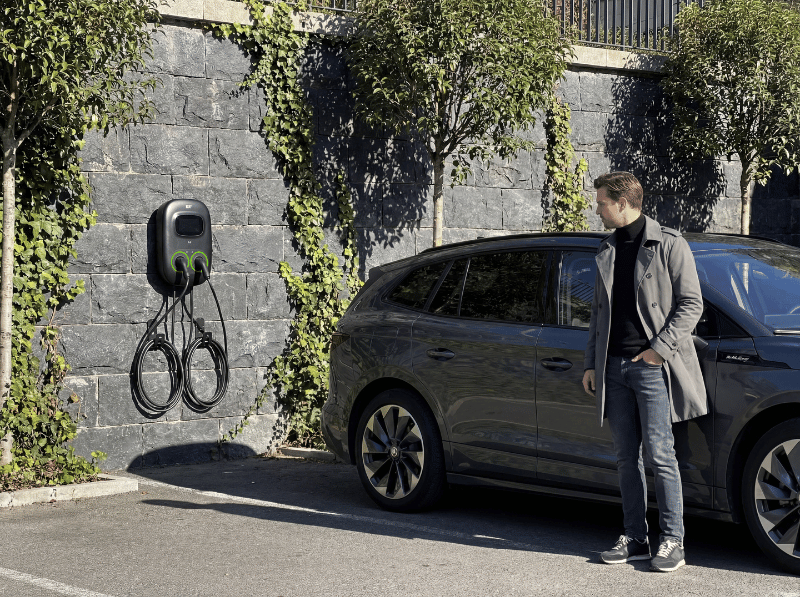

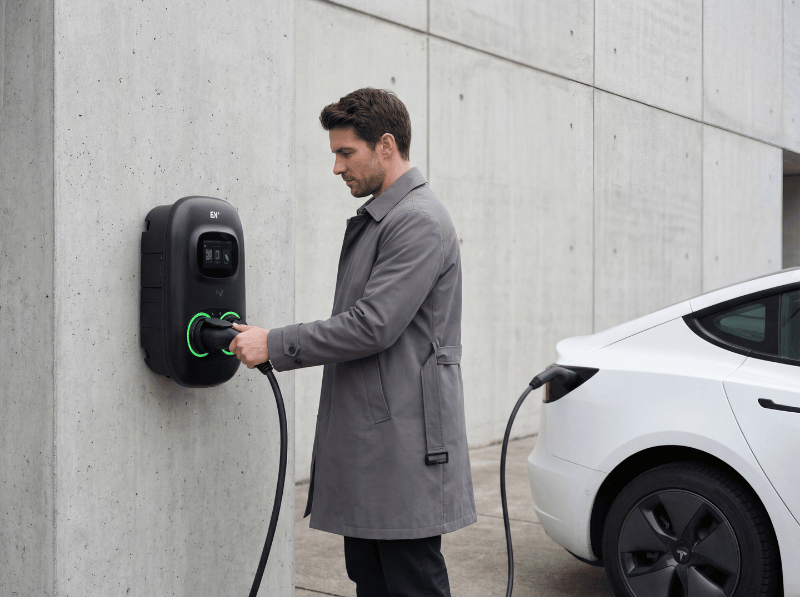

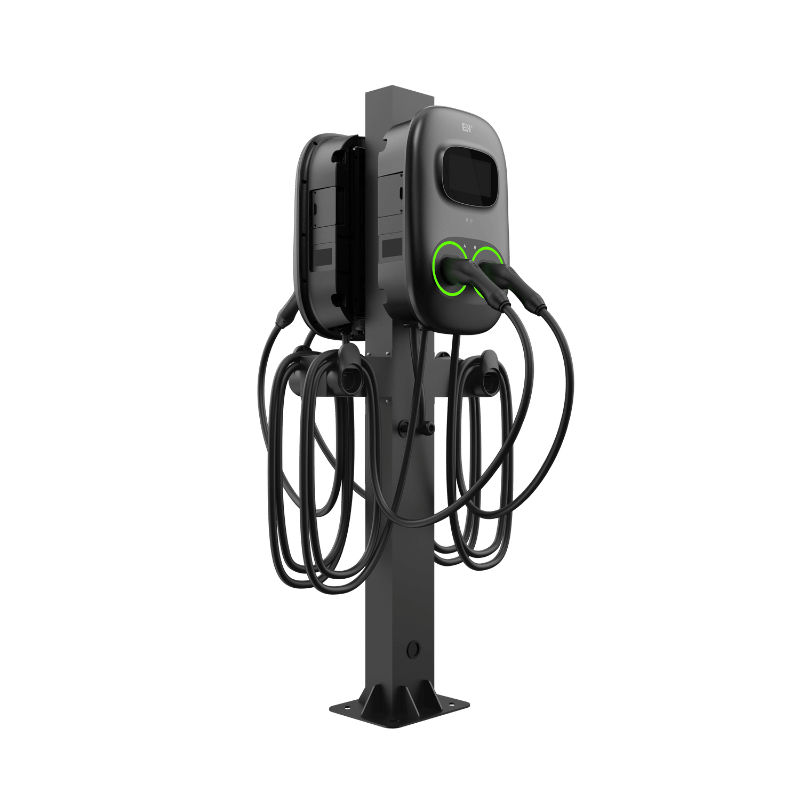

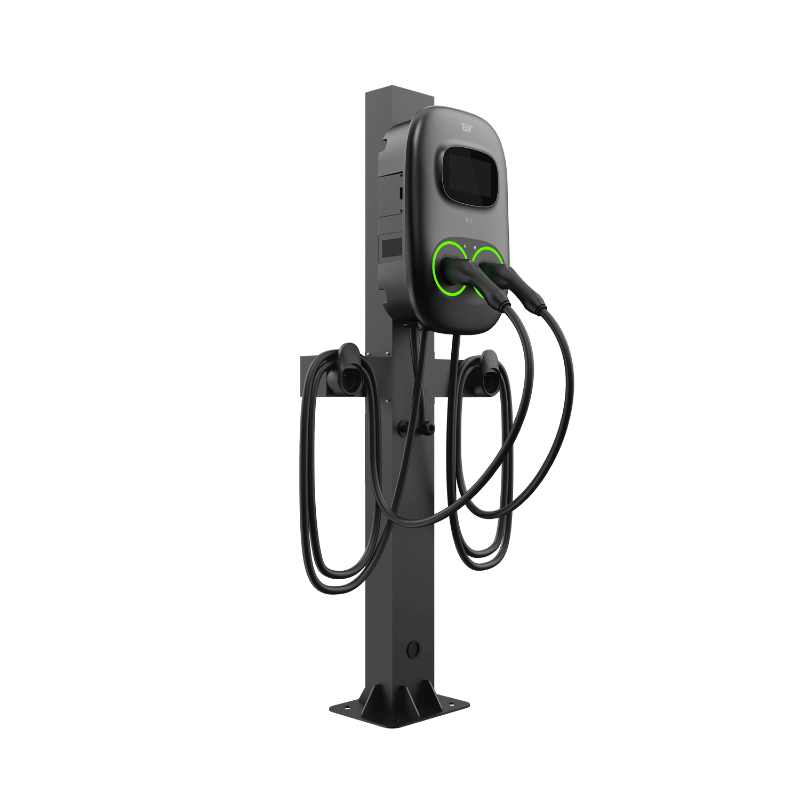

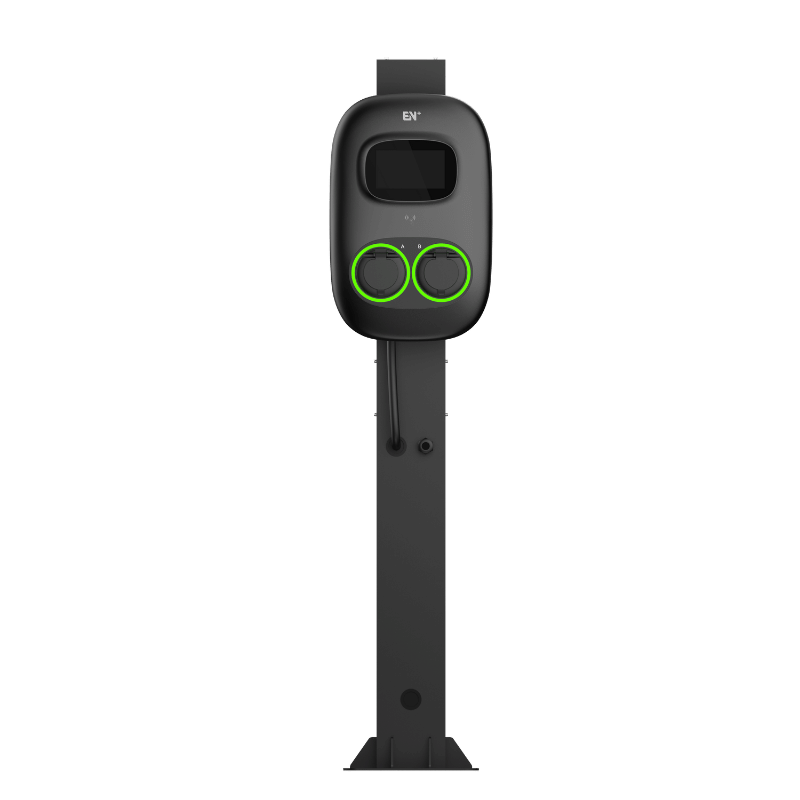

It can be wall or pole mounted with three inlet ways(Back wiring/Rear wiring/Bottom wiring). It houses two sockets, with optional load balancing controller box.
An integrated RFID reader supports user identification, and a MID-meter enables financial settlement.
Supporting three communication functions including Wi-Fi/LTE/Ethernet to connect to the Cloud platform which can be Monta and EV.Energy etc.
Need Help? Please contact us today for a free consultation and pricing.
* Please contact us directly for custom order or order in the large quantities.
Need an urgent quote?
7*24Hrs Online Chat for fastest price estimate
Specifications
Product Name
Nano Series Duo Business Wallbox
Electrical
2*22KW, 400V AC, 2*32A, 50/60Hz,
Product Standard
EU, FR
Cabling Method

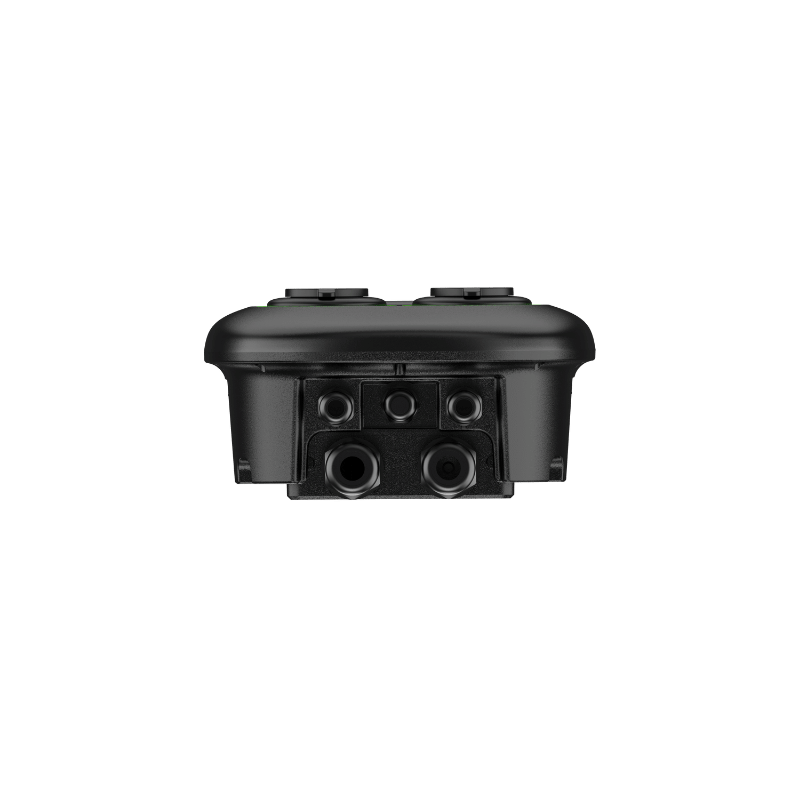

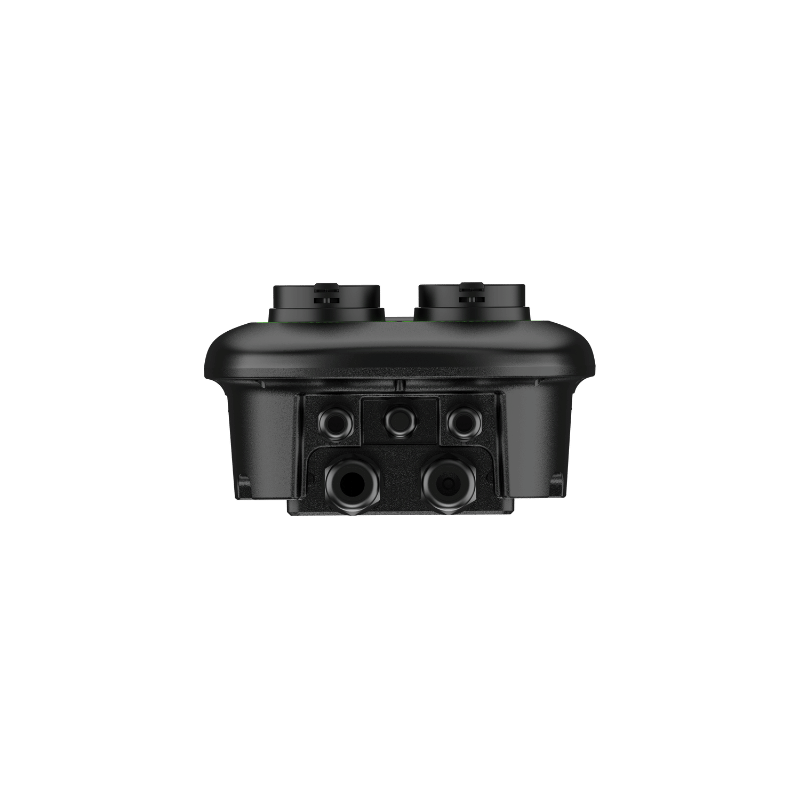

Top Cabling, Bottom Cabling, Rear Cabling
Certified
CE-RED, MID Cerified Meter, CE, CB, RoHS, Reach
OCPP
OCPP 1.6 Json
Payment
AD Hoc / Kiosk solution / App
Metering Accuracy
1% with MID
Connector Type

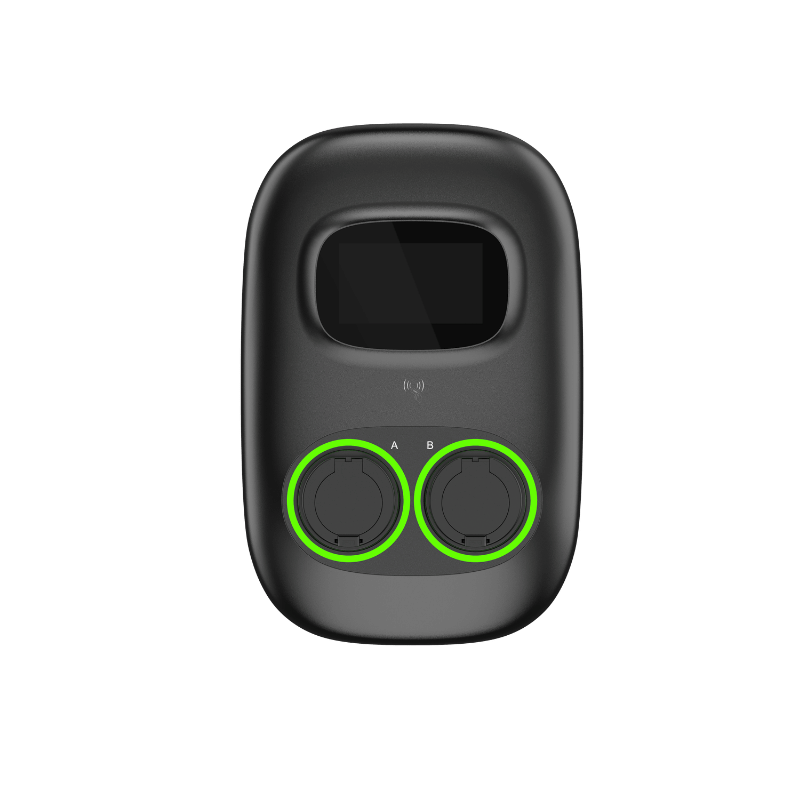

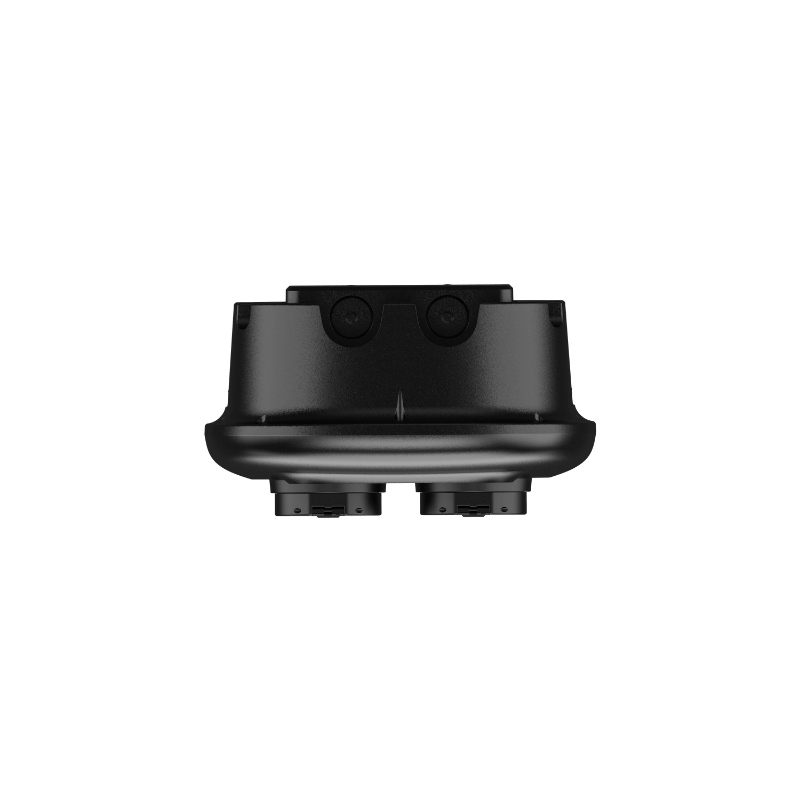

Type 2 Socket, Type 2 Cable (7M), T2S Socket
Enclosure Protection
IK10, IP54
Start Mode
Plug&Play/RFID card/App
Other Attributes
Manufacturer Location
Shenzhen, China
Enclosure Material
PC
Colour
Black (PANTONE Black C)
Warranty
2 years
Operating Temperature
-30℃~+50℃
Operating Humidity
5%-95%
Operating Altitude
≤2000 m
Installation

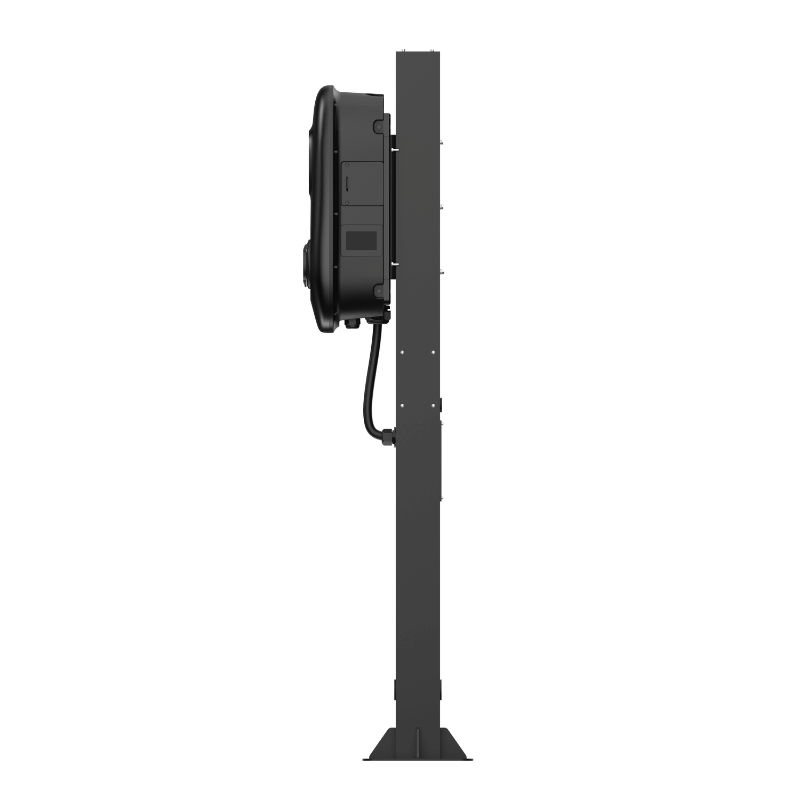

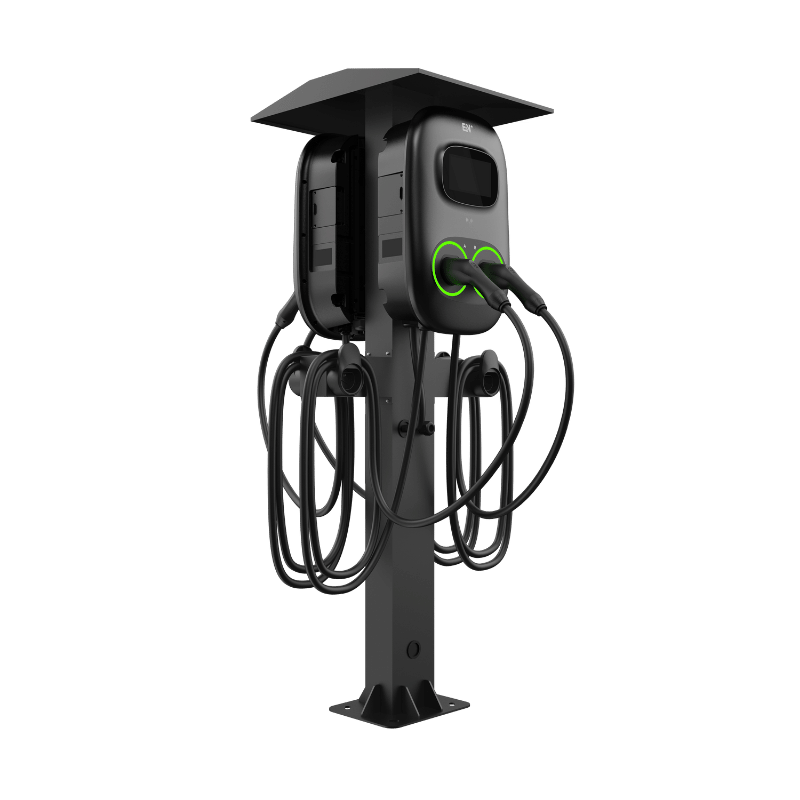

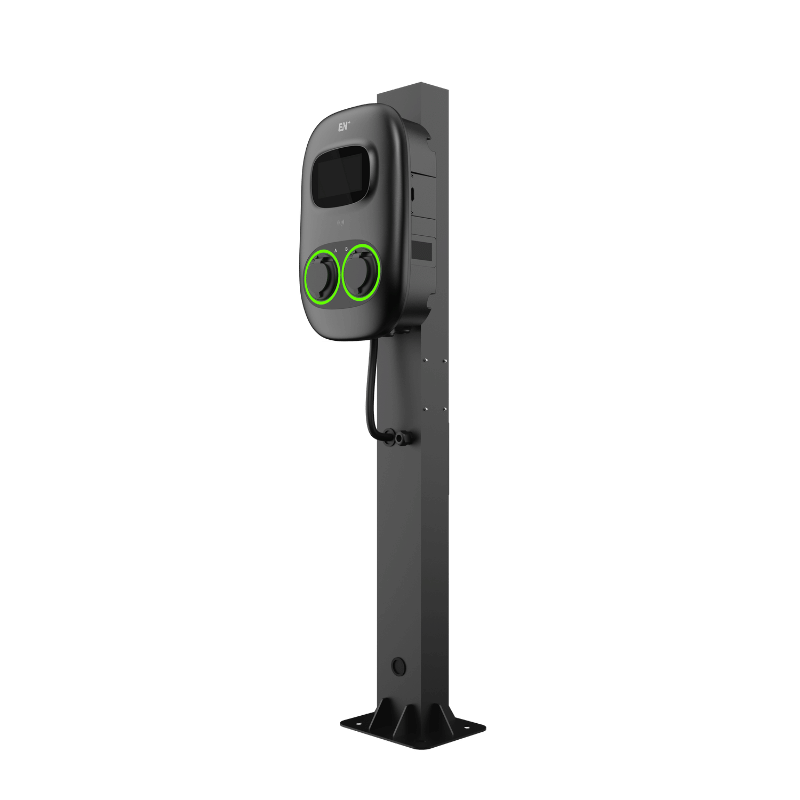

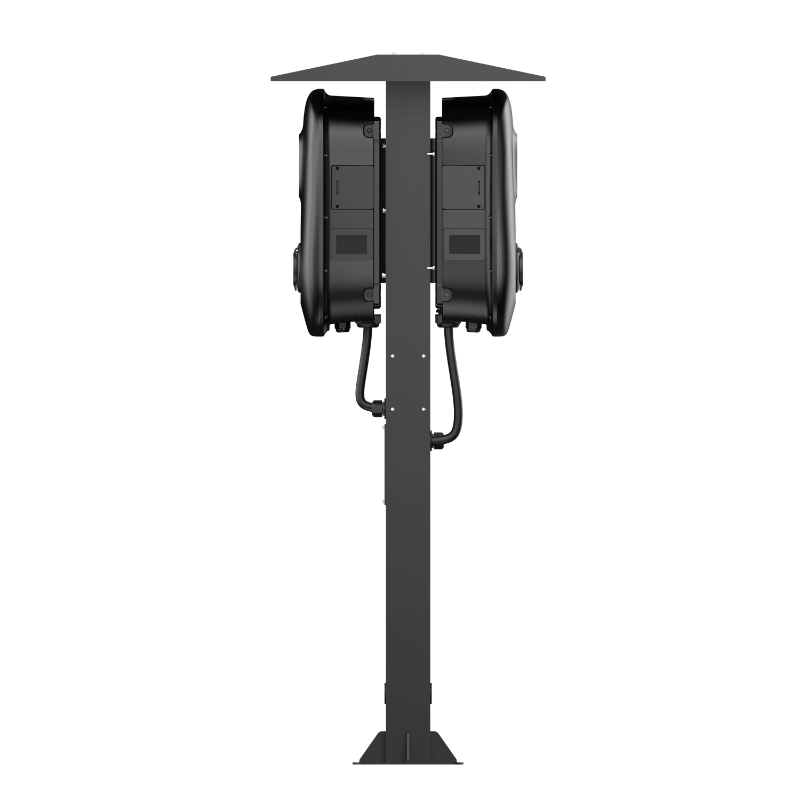

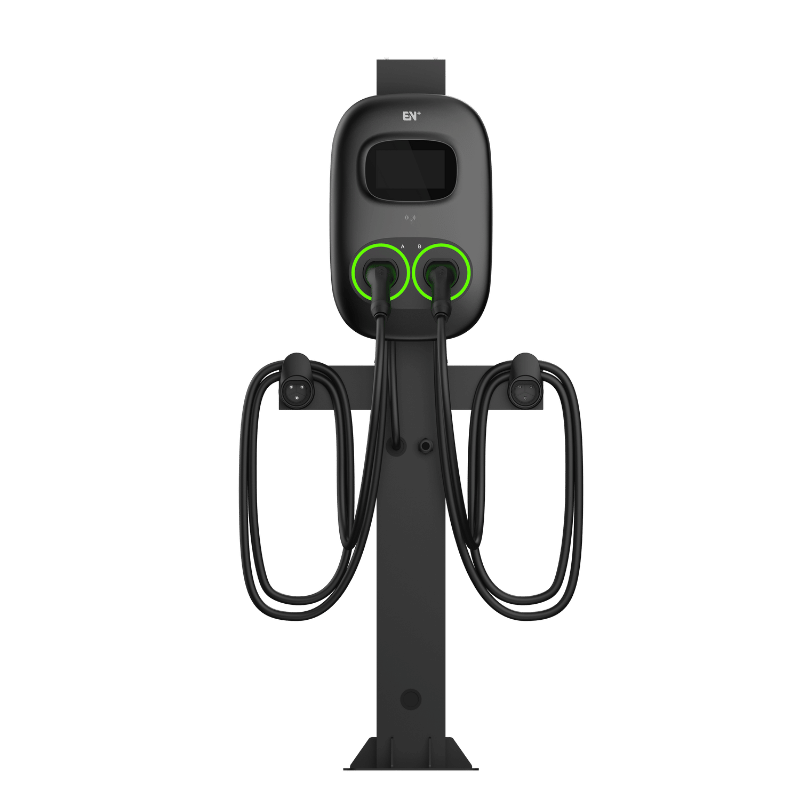

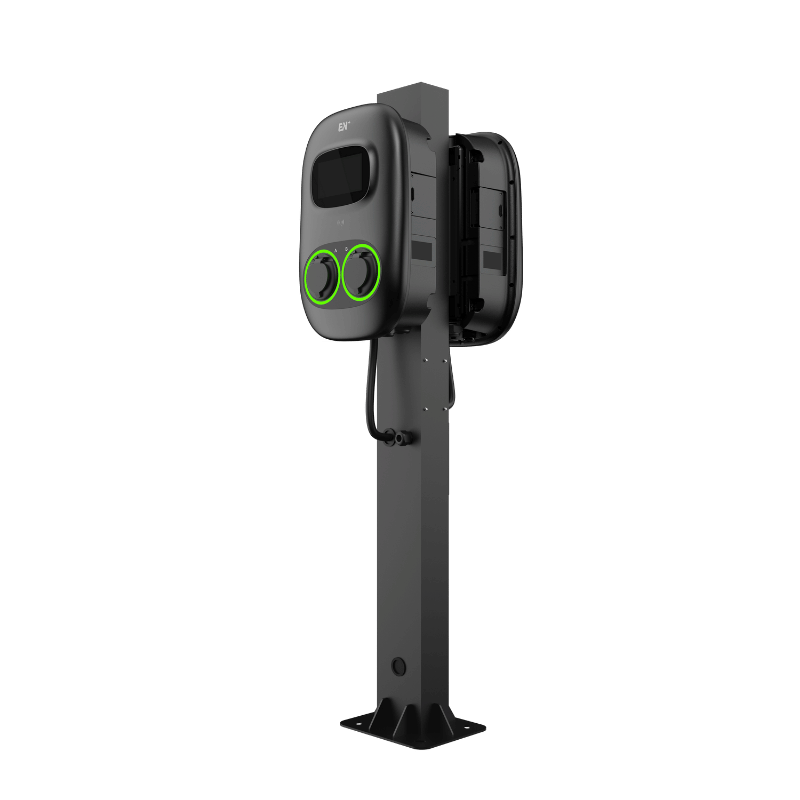

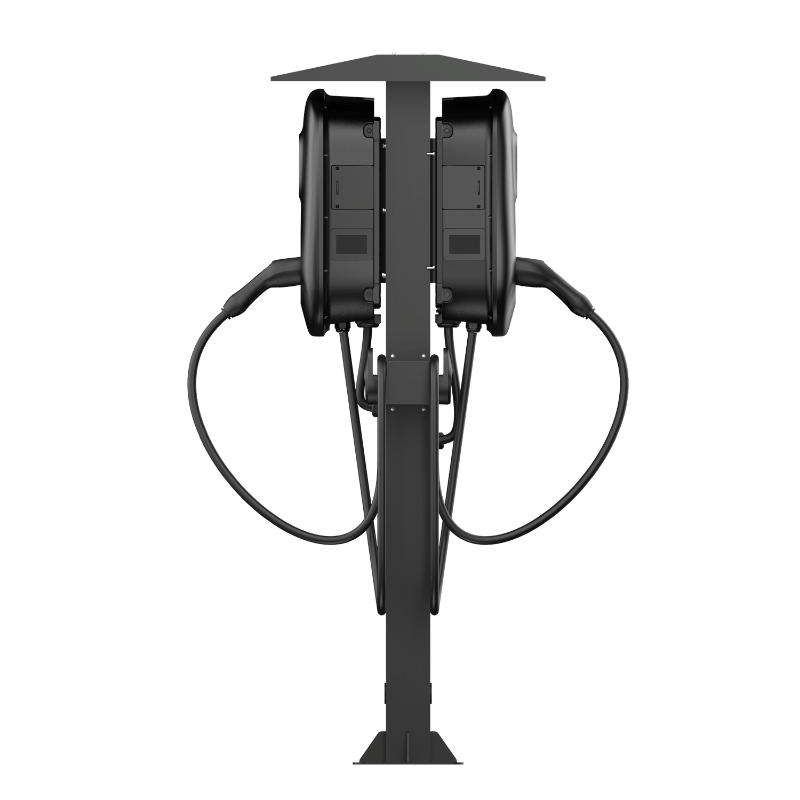

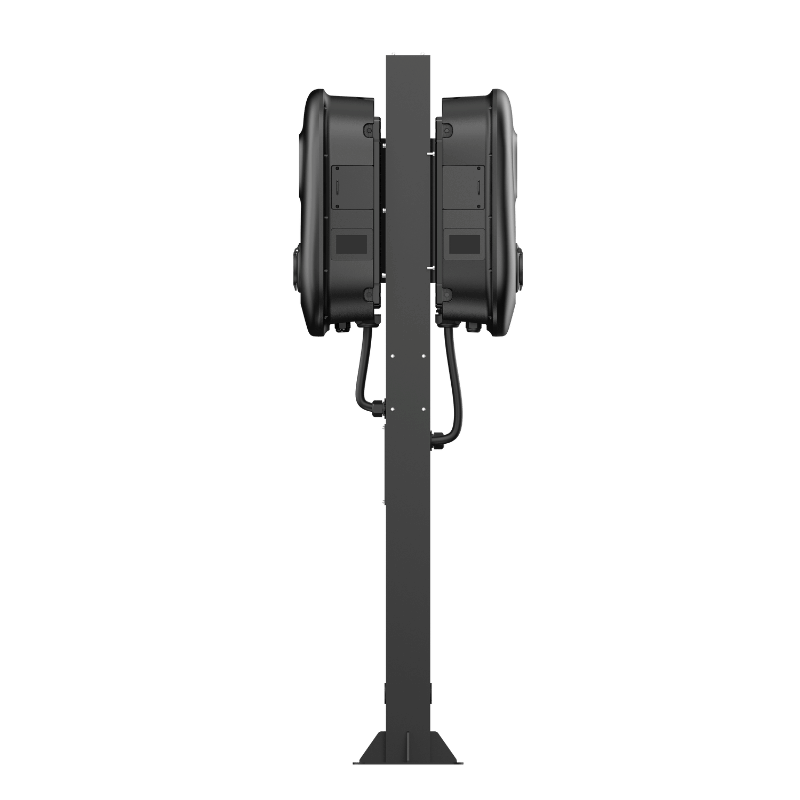

Wall-mount / Pole-mount (Optional)
RCD
30 mA Type A + 6 mA DC
RCBO
independent RCBO
Packaging and Lead Time
Product Dimension
540*360*199mm(H*W*D)
Package Dimension
Socket Version: 620*466*245mm(L*W*D) / Cable Version: 635*430*345mm(L*W*D)
External Package
Carton
Net Weight
Socket Version: 10kg / Cable Version: 15.7kg
Gross Weight
Socket Version: 12kg / Cable Version: 18.8kg
Single Pallet
Socket Version: 30 sets / Cable Version: 20 sets
Container
20‘ GP: Socket Version: 300 sets / Cable Version: 200 sets ; 40’GP: Socket Version: 630 sets / Cable Version: 440 sets
Main documents
Documents
Take a Close Look
22kW General Compatibility
The Nano series can provide up to 22 kW (Type 2) for every electric car.
25 pcs Load Balancing
The Nano series can achieve load balancing of 25 chargers on one circuit. It can operate in the cloud and locally as well. A WiFi network is required in larger facilities to guarantee 100% operation stability.
Multiple Connector Options

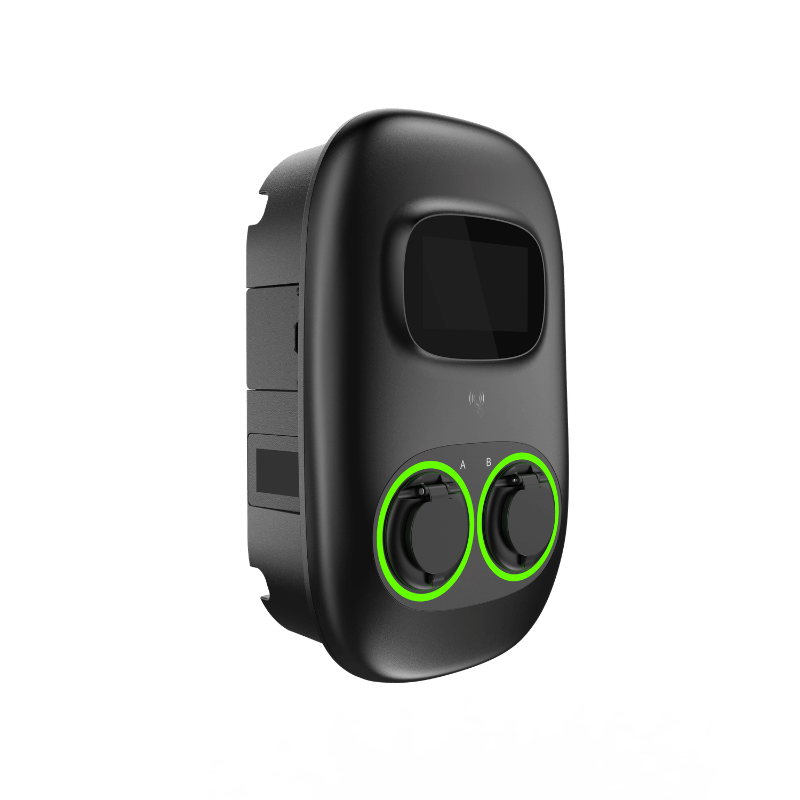

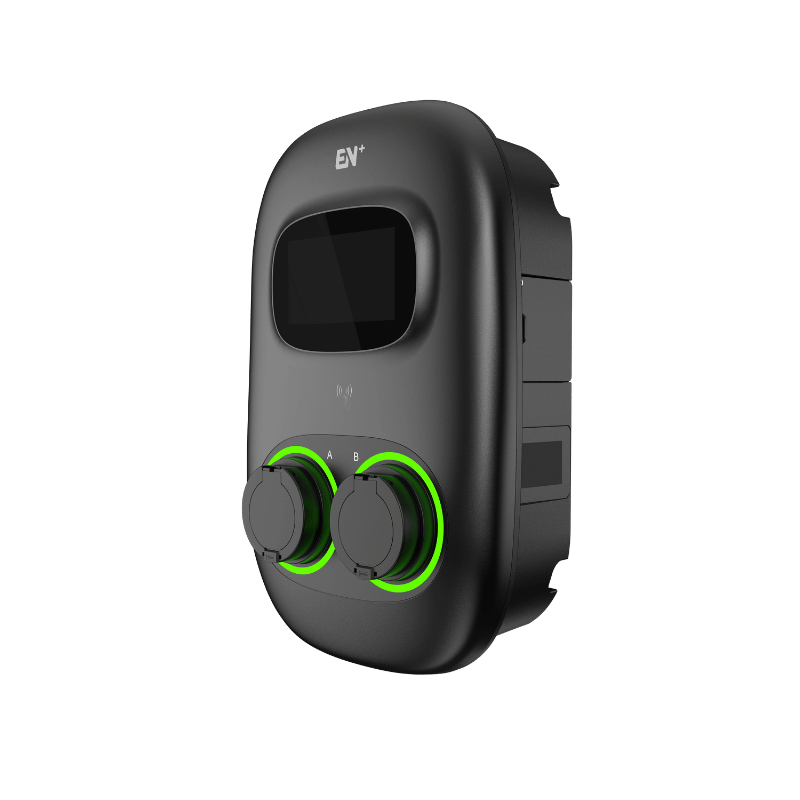

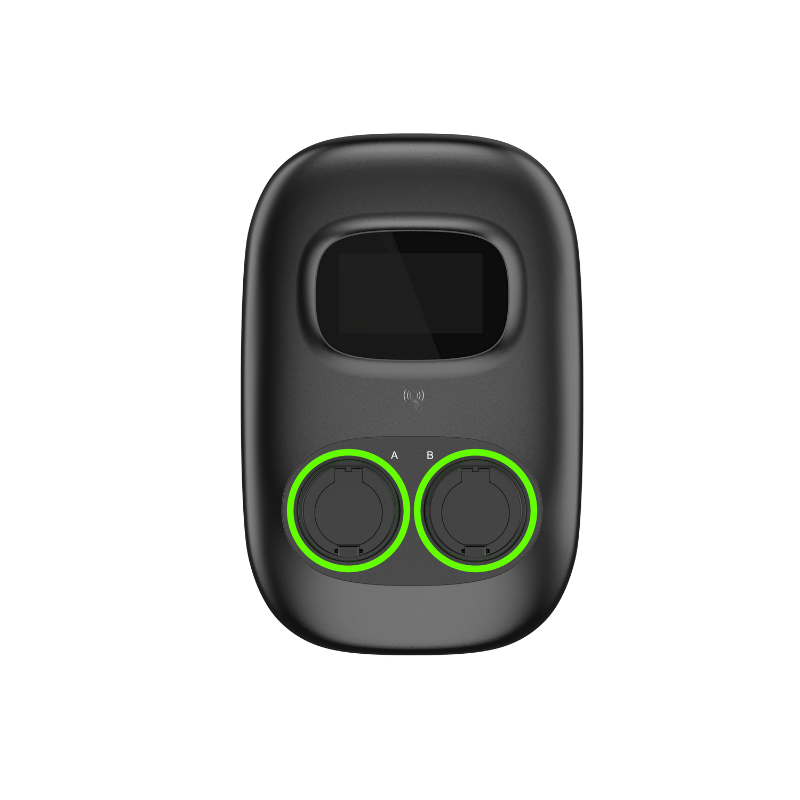

Available with Type 2 Cable, Type 2 Socket, and T2S Socket options to align with different regional regulations and user habits.

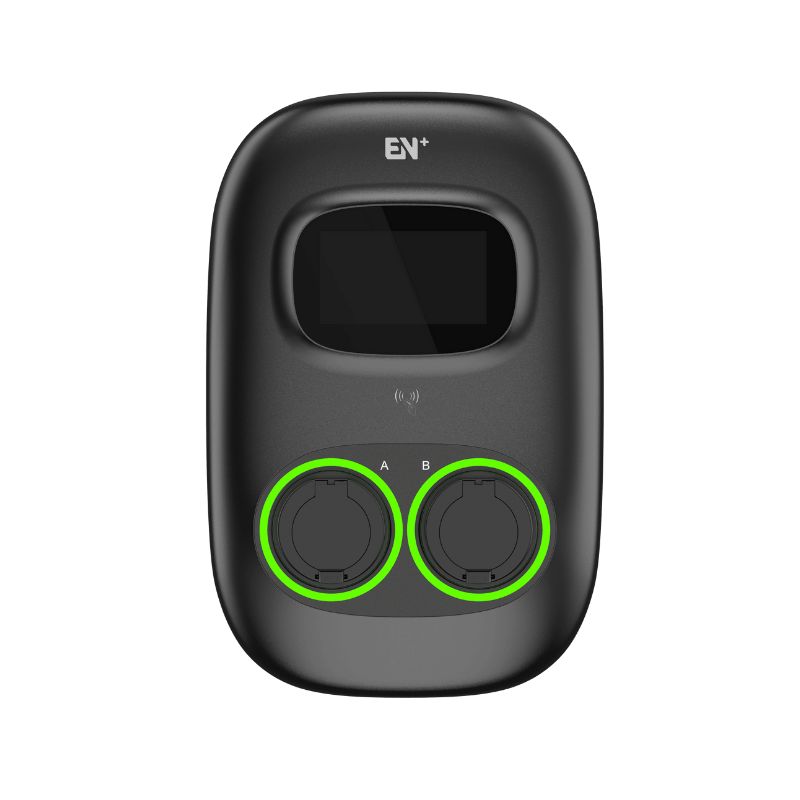

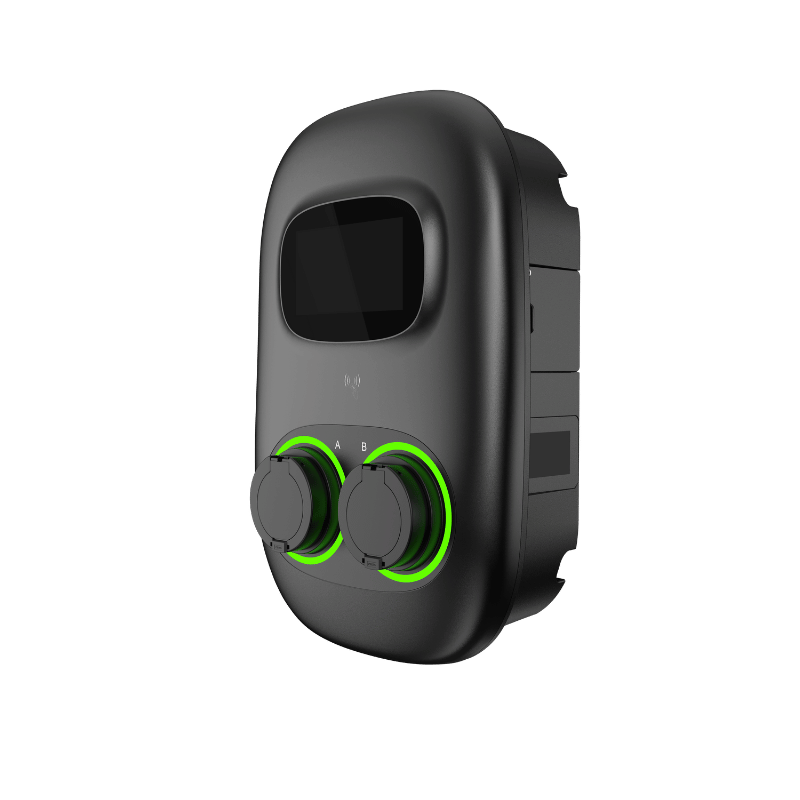

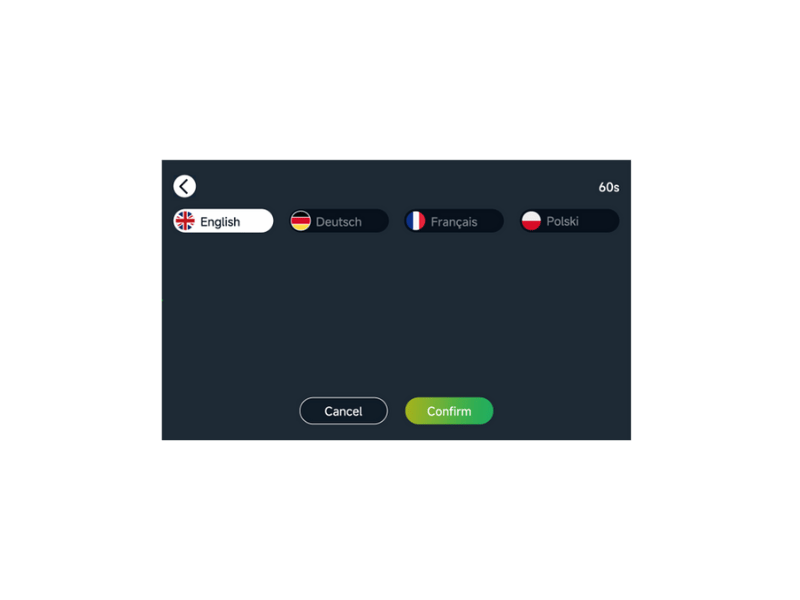

Integrated Touchscreen Display
The built-in touchscreen provides clear charging status and on-site user interaction for public and workplace charging.
MID Meter Certification
The Nano series can accurately measure the power consumption of each charging session, and store the relevant charging data in the evchargo app for easily monetization of the charging station.
PV Green Energy
The Nano series supports access to photovoltaic and energy management systems, effectively uses solar energy to charge electric vehicles, and reduces charging costs while being environmentally friendly.
3 yrs Warranty
The Nano series provides a 3-year product warranty, and free maintenance and consulting services can be enjoyed during the warranty period.
24/7 Stay Updated
The Nano series can receive automatic firmware updates and remote maintenance via WIFI or mobile phone connection.
