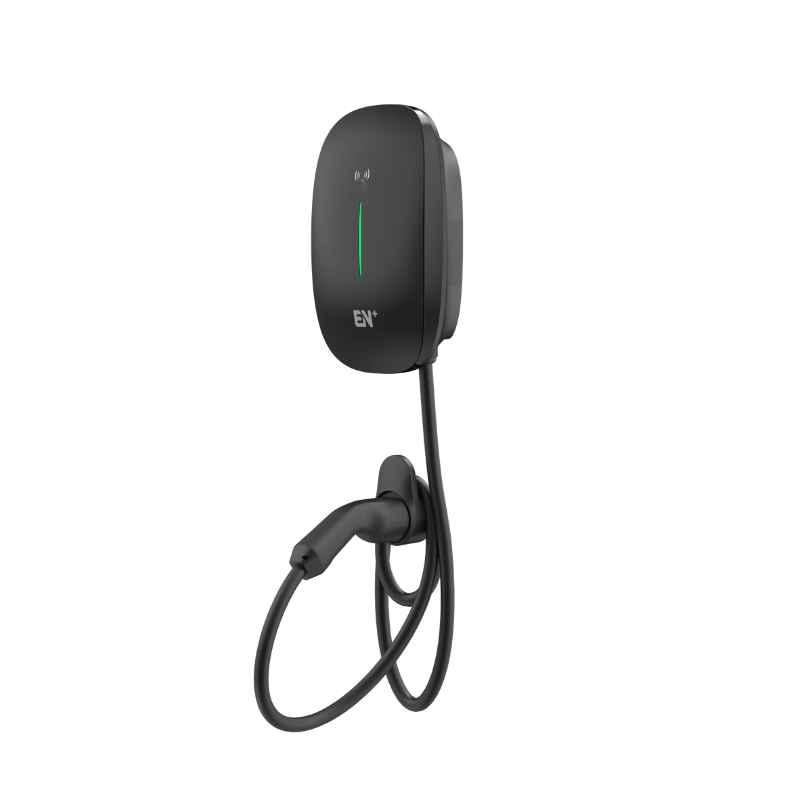

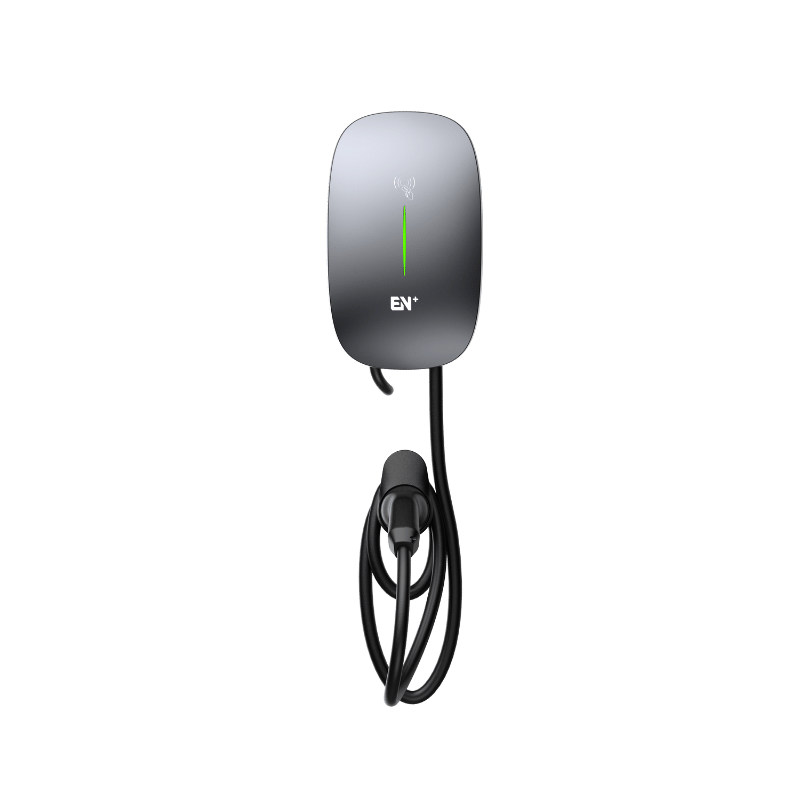

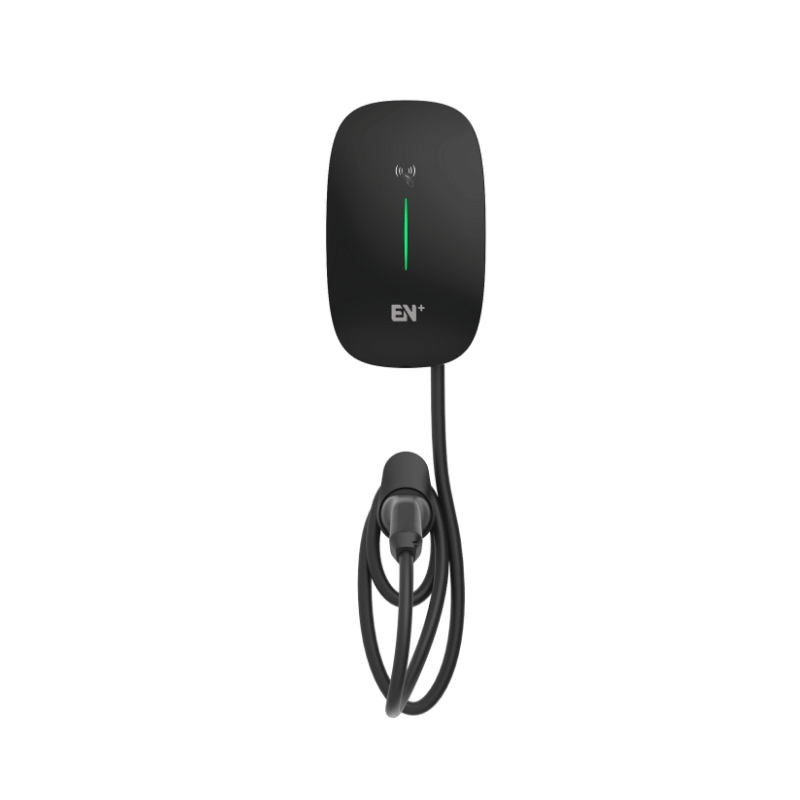

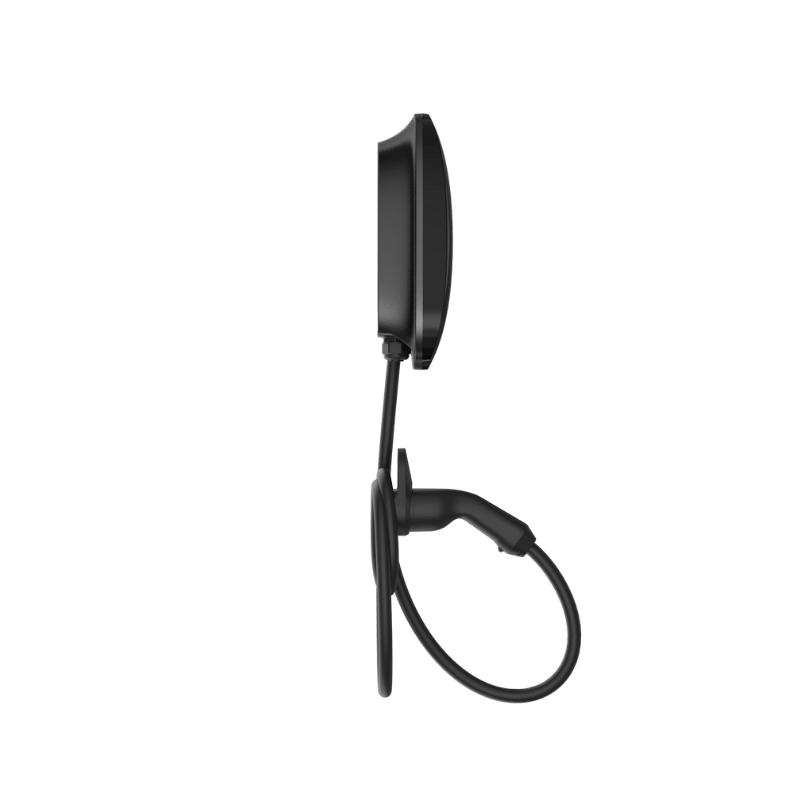

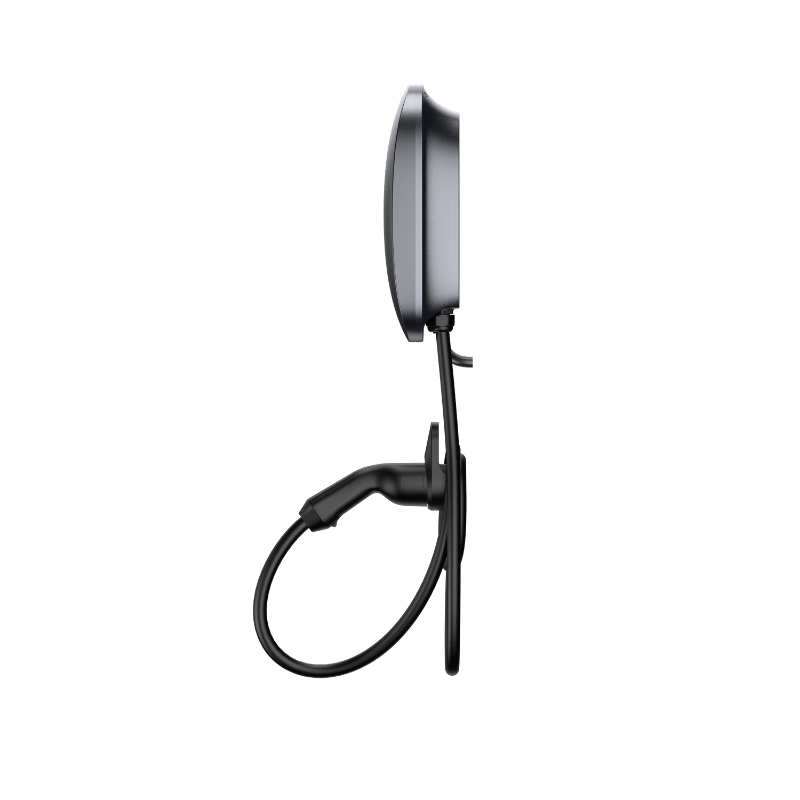

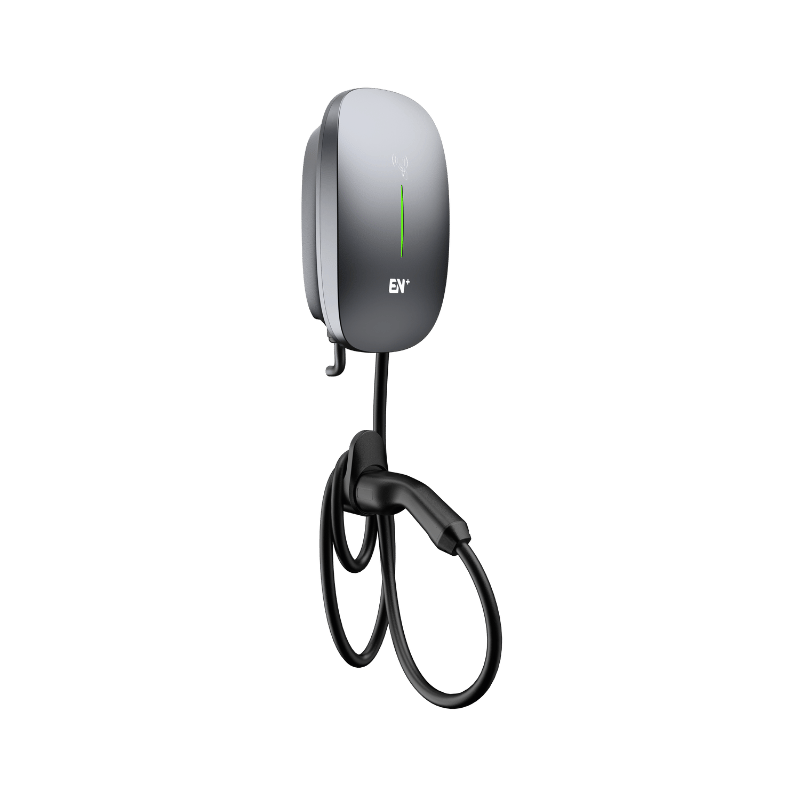

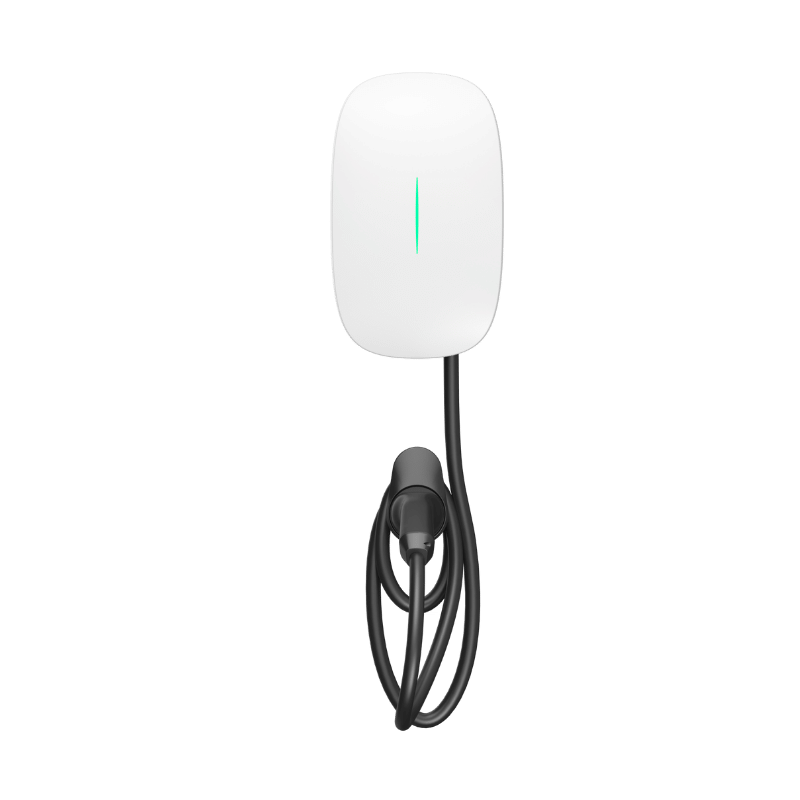

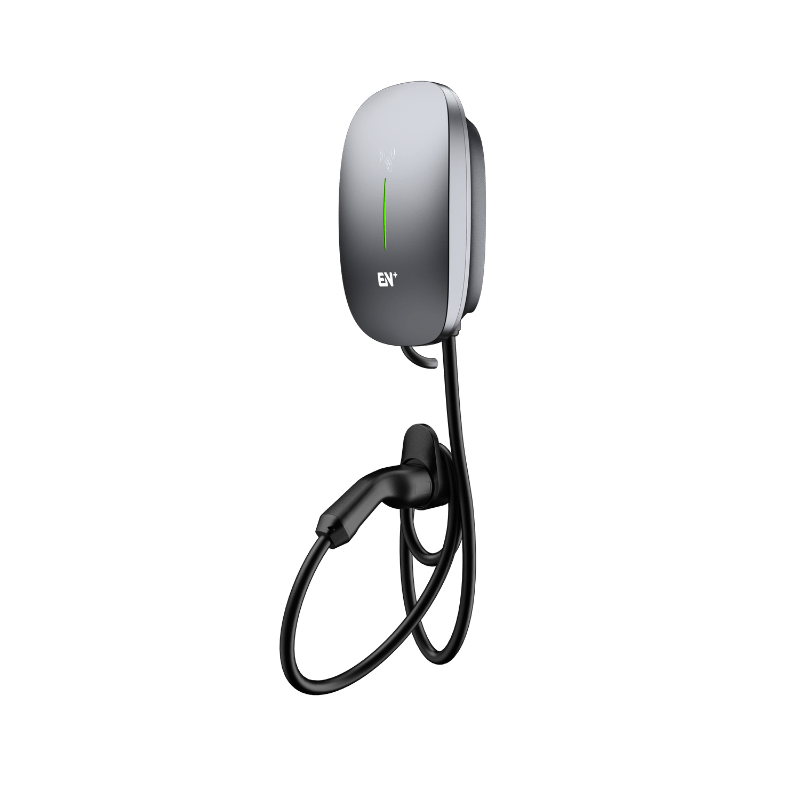

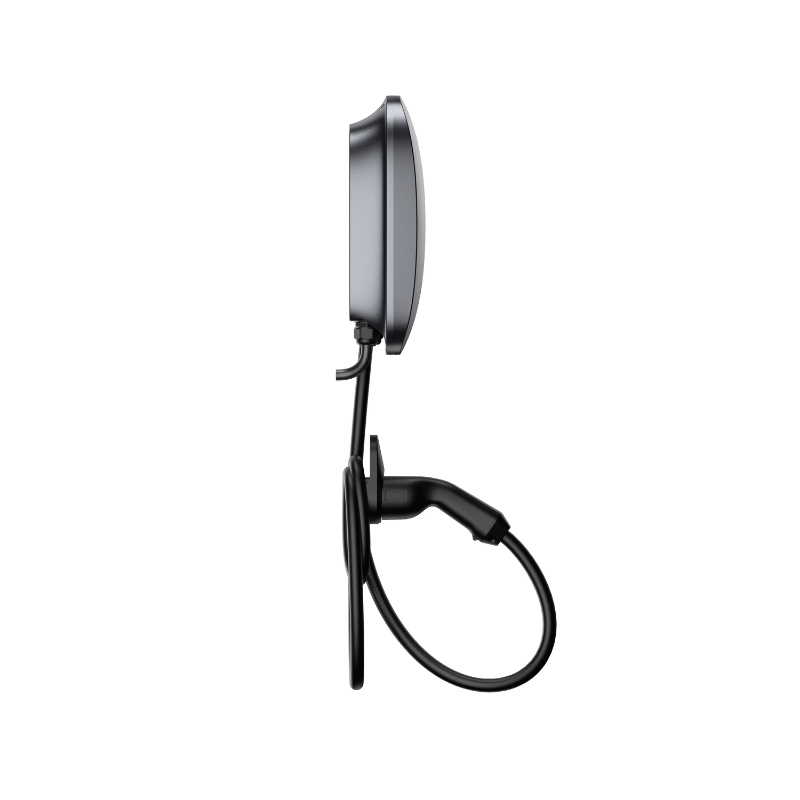

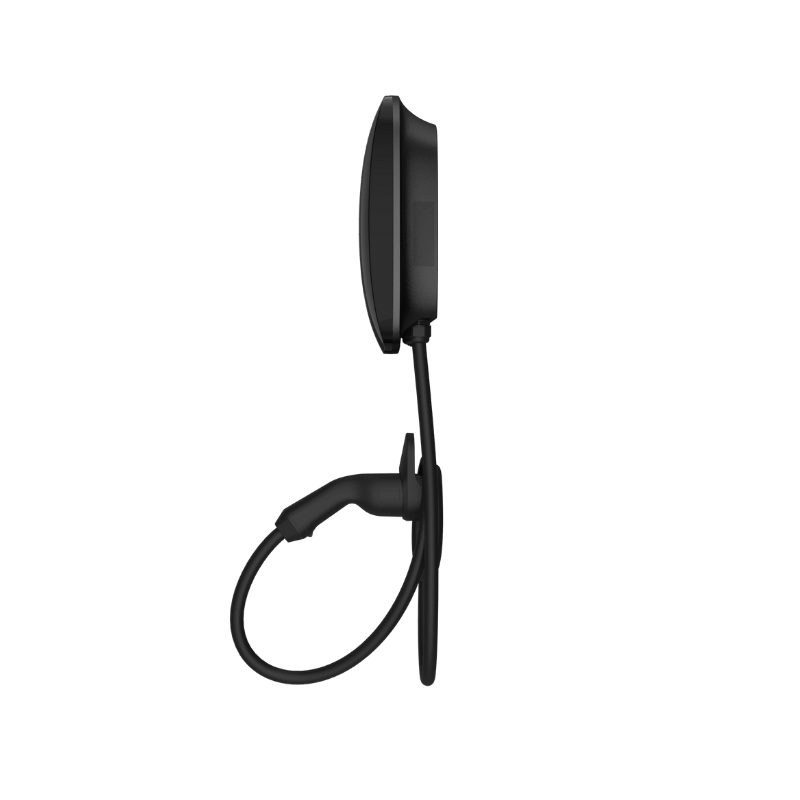

Caro Pro Series Home Wallbox

Standard:

Caro Pro Series Home Wallbox embodies simplicity and environmental responsibility. Not only does this wallbox support PV charging, it also incorporates dynamic load balancing to relieve the grid during peak hours. By harnessing solar power for eco-friendly charging, it helps reduce electricity costs and meets your green objectives. Its intelligent load management ensures optimised energy use through seamless PV integration.

Need Help? Please contact us today for a free consultation and pricing.

* Please contact us directly for custom order or order in the large quantities.

Need an urgent quote?

7*24Hrs Online Chat for fastest price estimate

Specifications

Product Name	Caro Pro Series Home Wallbox
Electrical	22 kW, 3P+N+PE, 400 V AC, 32 A, 50 / 60 Hz
Product Standard	EU
Certified	CE / CB / RoHS / Reach
OCPP	OCPP 1.6 Json
Connector Type	Type 2 Cable (7M)
Enclosure Protection	IK10, IP65
Start Mode	Plug to Charge / RFID card / App

Manufacturer Location	Shenzhen, China
Enclosure Material	PC
Colour	Black (PANTONE Black C)

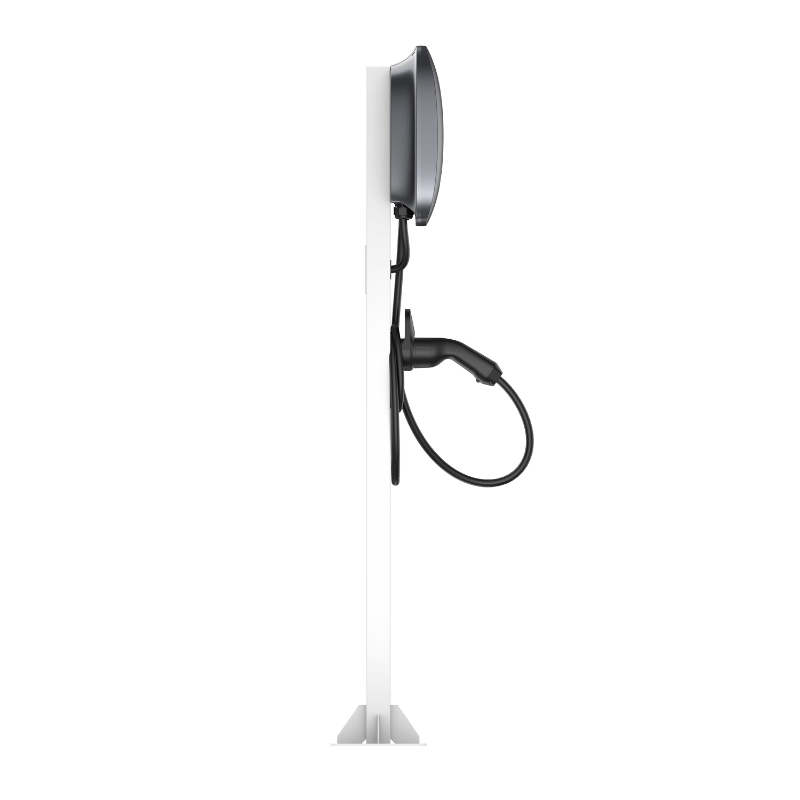

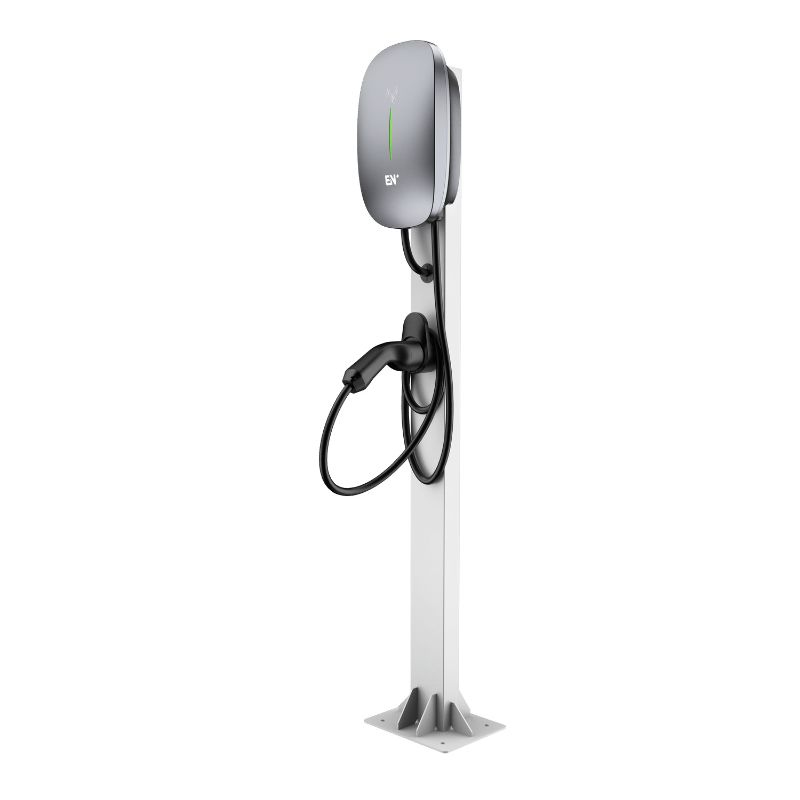

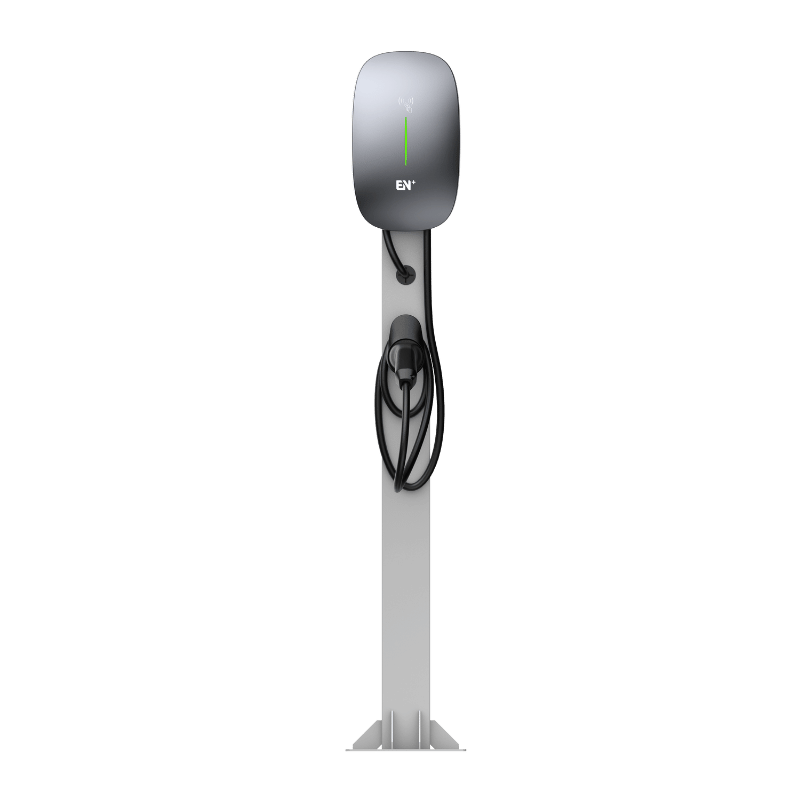

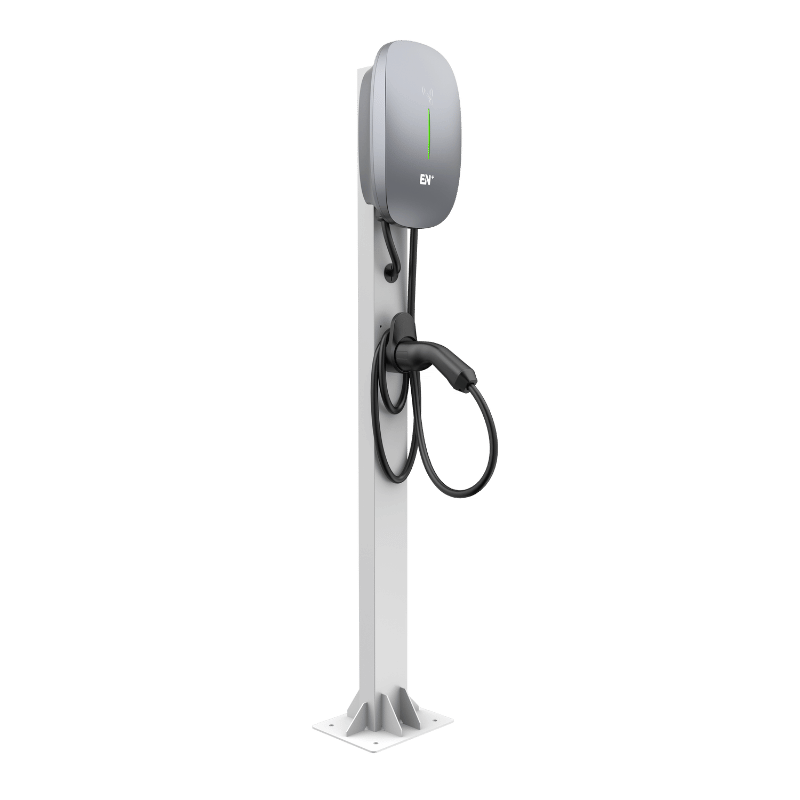

Installation	Wall-mount / Pole-mount (Optional)
RCD	30 mA Type A + 6 mA DC
Warranty	2 years
Operating Temperature	-30℃~+50℃
Operating Humidity	5%-95%
Operating Altitude	≤2000 m

Packaging and Lead Time

Product Dimension	374 x 226 x 164 mm (H x W x D)
Package Dimension	430 x 330 x 235 mm (L x W x H)
External Package	Carton
Net Weight	4 kg
Gross Weight	7 kg
Single Pallet	Socke Version: 56 sets
Container	20‘ GP: Socke Version: 560 sets / 40’GP: Socke Version: 1176sets

Main documents

Documents

Take a Close Look

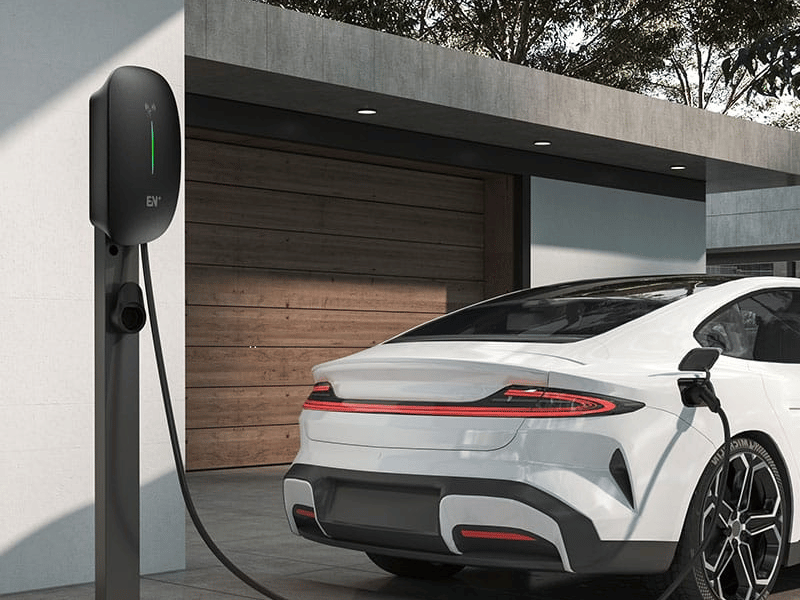

Savings on Electricity Bills

Caro Pro Series allows smart charging with solar energy，it optimize electricity use with dynamic load management, reducing costs and enhancing power savings.

Modernizing Home EV Experience

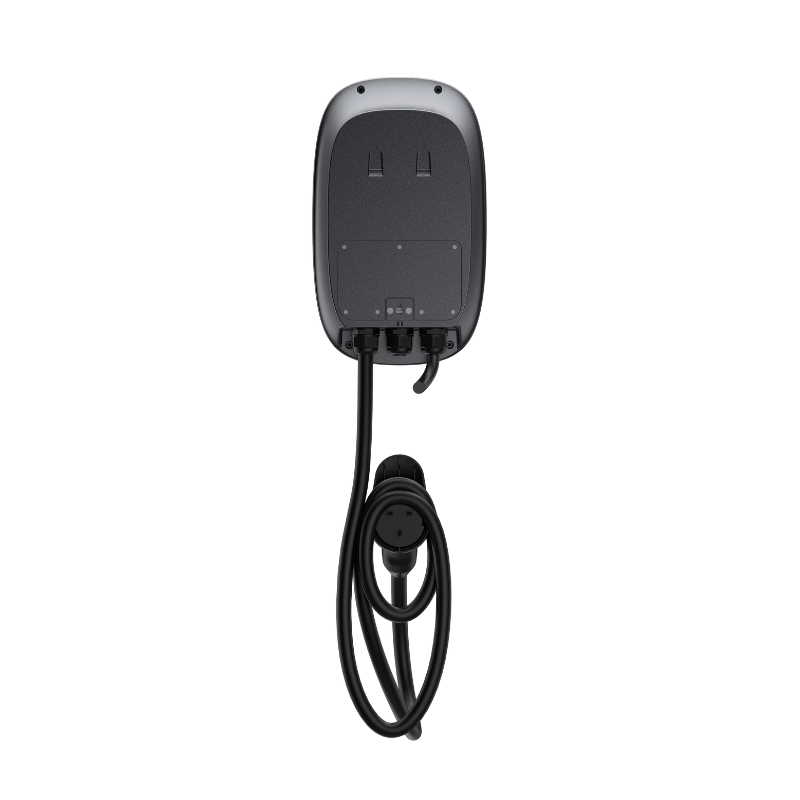

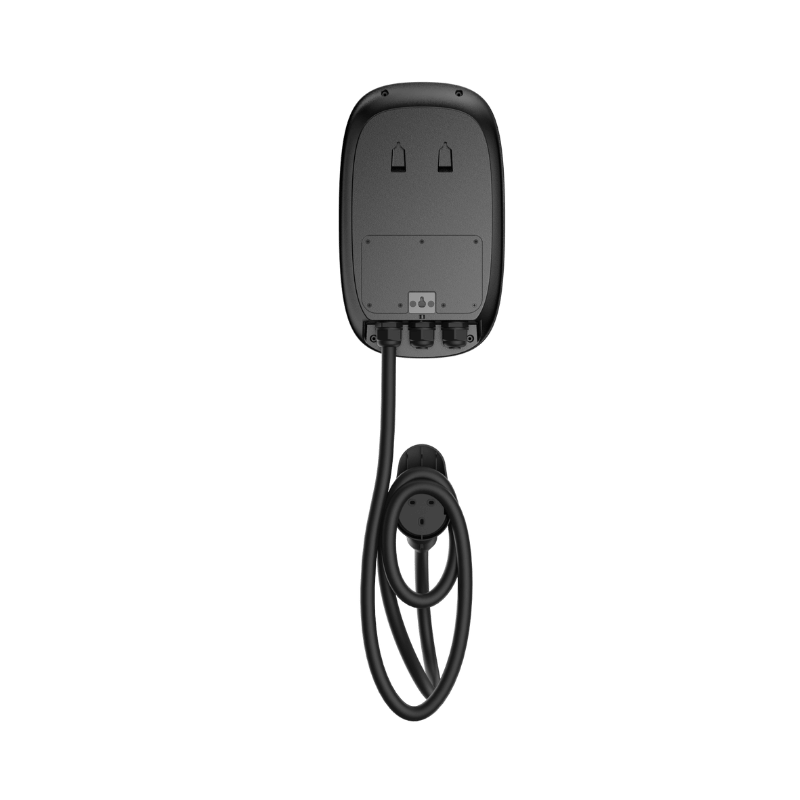

Caro Pro features a convenient back plate design for easy cable access and installation. Its lightweight construction and 7m cable option make it the top choice for residential charging.

FAQ

What technical specifications do I need to provide to start the customization project?

We require detailed information about your charging needs, such as charging speed, voltage, power, etc. If you have specific technical specifications, please provide them to us.

How long does the EVSE project (ODM/OEM) take?

The timeline for the EVSE customization project depends on its specific requirements and the current project schedule. Typically, the project takes at least 5 weeks to complete.

What kind of design drawings do I need to provide?

We require design drawings regarding the charging station’s size, shape, material, and color. If you don’t have these drawings, we can provide design services for you.

Do you offer any EV Chargers for testing the quality?

Yes, we offer a wide range of EV Chargers that have a proven track record of stability and reliability. You can select the one that best suits your requirements and conduct initial testing.

I’m not familiar with the EV charging field. Can I customize EVSE?

Don’t worry. We have many clients who are new to this field. We will communicate with you in detail and provide professional product suggestions.

Can I visit your factory?

Yes, you are welcome to visit our factory in Shenzhen, China. Many customers are impressed by our production capacity and management efficiency. However, please note that visits to our factory are by appointment only. Therefore, please confirm the visiting date with our sales personnel before making travel arrangements.

Can I distribute charging costs to different users?

Yes, you can easily manage and allocate charging costs to multiple users with our advanced EV Charger software. Our software offers flexible and customizable billing options, allowing you to set up user accounts and assign charging costs based on individual usage. This ensures a fair and transparent billing process for all users.
