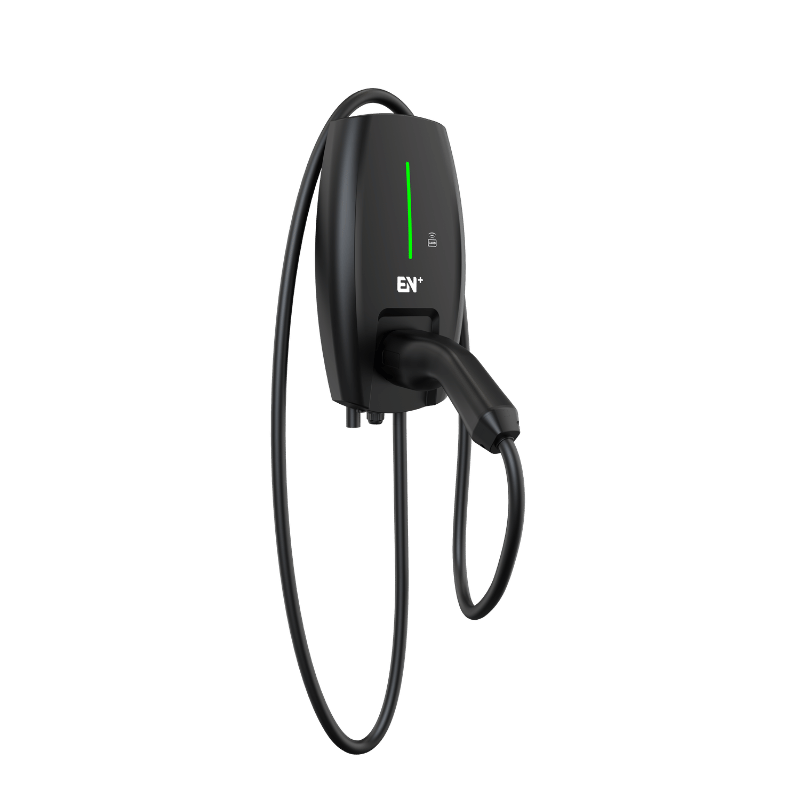

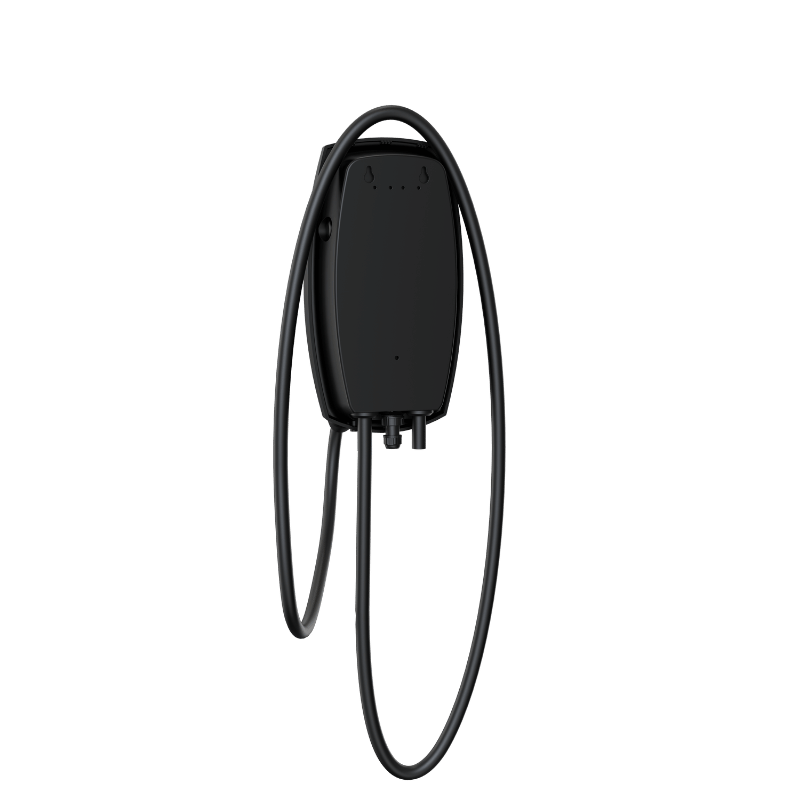

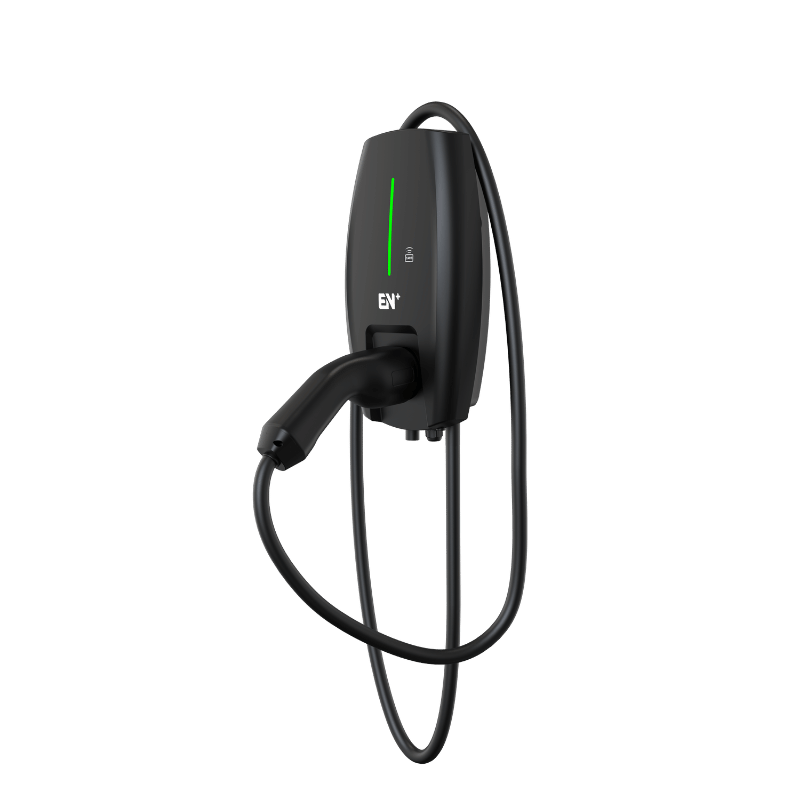

Alvis Series Home Wallbox

Standard:

The Alvis Series Home Wallbox is a stylish EV charger for Type 2 EVs with network connectivity and OCPP 1.6 compatibility, offering load balancing. Additionally, it provides network security for consumer IoT devices.

Need Help? Please contact us today for a free consultation and pricing.

* Please contact us directly for custom order or order in the large quantities.

Need an urgent quote?

7*24Hrs Online Chat for fastest price estimate

Specifications

Product Name

Alvis Series Home Wallbox

Electrical

7 kW, 1P+N+PE, 230 V AC, 32 A, 50 / 60 Hz

Product Standard

EU

Certified

CE / CB / RoHS

Connector Type

Type 2 Cable (7M)

Enclosure Protection

IK08, IP65

Start Mode

Plug to Charge / RFID Card / App

Manufacturer Location

Shenzhen, China

Enclosure Material

PC

Colour

Black (PANTONE Black C)

Warranty

2 years

Operating Temperature

-30℃~+50℃

Operating Humidity

5%-95%

Operating Altitude

≤2000 m

Packaging and Lead Time

Product Dimension

328 x 181 x 87 mm (H x W x D)

Package Dimension

420 x 280 x 190 mm (L x W x H)

External Package

Handbag / Carton

Net Weight

3 kg

Gross Weight

4 kg

Single Pallet

72 sets

Container

20‘ GP: 720 sets ; 40’GP: 1512 sets

Main documents

Documents

Take a Close Look

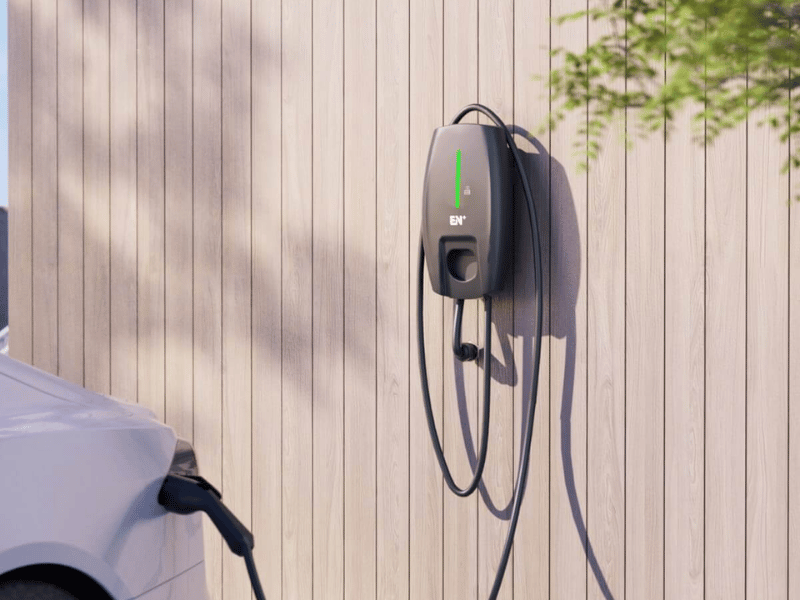

Modernize Home EV Experience

Alvis Series’ attractive design, compact footprint, and lightweight construction make it the premier choice for residential charging.

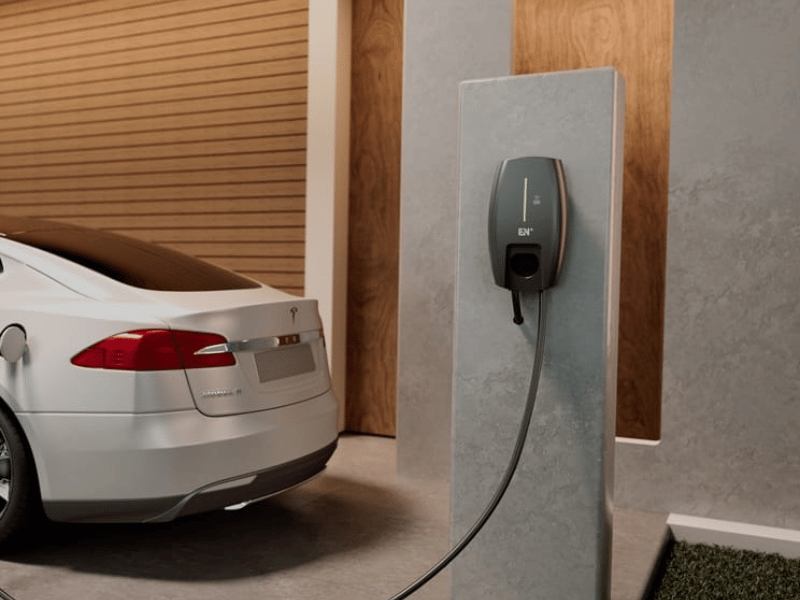

Energize Your Charging Safety

Attained global certifications. Its security protocols provide high-level protection, established against the ESTI EN 303 645 certificate, facilitating the secure handling of personal data whilst charging EVs.

FAQ

What technical specifications do I need to provide to start the customization project?

We require detailed information about your charging needs, such as charging speed, voltage, power, etc. If you have specific technical specifications, please provide them to us.

How long does the EVSE project (ODM/OEM) take?

The timeline for the EVSE customization project depends on its specific requirements and the current project schedule. Typically, the project takes at least 5 weeks to complete.

What kind of design drawings do I need to provide?

We require design drawings regarding the charging station’s size, shape, material, and color. If you don’t have these drawings, we can provide design services for you.

Do you offer any EV Chargers for testing the quality?

Yes, we offer a wide range of EV Chargers that have a proven track record of stability and reliability. You can select the one that best suits your requirements and conduct initial testing.

I’m not familiar with the EV charging field. Can I customize EVSE?

Don’t worry. We have many clients who are new to this field. We will communicate with you in detail and provide professional product suggestions.

Can I visit your factory?

Yes, you are welcome to visit our factory in Shenzhen, China. Many customers are impressed by our production capacity and management efficiency. However, please note that visits to our factory are by appointment only. Therefore, please confirm the visiting date with our sales personnel before making travel arrangements.

Can I distribute charging costs to different users?

Yes, you can easily manage and allocate charging costs to multiple users with our advanced EV Charger software. Our software offers flexible and customizable billing options, allowing you to set up user accounts and assign charging costs based on individual usage. This ensures a fair and transparent billing process for all users.
