| Main | Product name | Rocket Series DC Charger |
| Model | DC160K | DC240K | DC300K |
| Product standard | EU |
| Product type | Floor-standing high-power DC fast charger |
| Power module architecture | 40 kW constant power module architecture |
| Power allocation | Dual connectors with intelligent power allocation / smart power distribution |
| Input Electrical Specification | Power supply | 3P + N + PE |
| Input voltage | 400 V AC ±10% |
| Input current | 252 A | 377 A | 471 A |
| Input frequency | 50 / 60 Hz |
| Output Electrical Specification | Maximum output power | 160 kW | 240 kW | 300 kW |
| Output voltage | 200–1000 V DC |
| Series current reference | 282 A | 376 A | 470 A |
| Maximum output current | 350 A |
| Number of DC outputs | 2 DC outputs |
| Connector | Standard charge connector | CCS2 + CCS2 |
| Alternative connector configuration | CCS2 + GB/T by project confirmation; optional CHAdeMO / CCS1 / GB/T support should be confirmed according to market and order configuration |
| Cable length | 5 m |
| Cable management | Optional |
| Basic Attributes | Enclosure material | Galvanized steel |
| Colour | Granite Gray (RAL 7026) |
| Installation method | Floor stand |
| Cabinet design | Integrated high-power DC cabinet with dual front charging interface |
| Interactive Interface | LED indicator | Green / Yellow / Red |
| LCD display | 10.1-inch colour touch display |
| RFID reader | Mifare Classic ISO/IEC 14443-A; DESFire Duox ISO/IEC 14443-A; FeliCa JIS X 6319-4 |
| Language switch | English, Japanese, French, German, Italian, Swedish |
| Start / Payment | Start mode | App / QR code / RFID card / POS optional |
| POS terminal | Optional; contactless card payment configuration should be confirmed by project |
| Metering accuracy | 1% with MID meter |
| Public charging compliance note | Final public charging, billing, payment, metering and data reporting requirements should be confirmed according to the local market |
| Communication | Network connection | Wi-Fi / Ethernet / 4G |
| OCPP | OCPP 1.6 JSON |
| Remote O&M | Supported through charging management platform and OCPP-based operation path |
| OTA upgrades | Supported according to platform and project configuration |

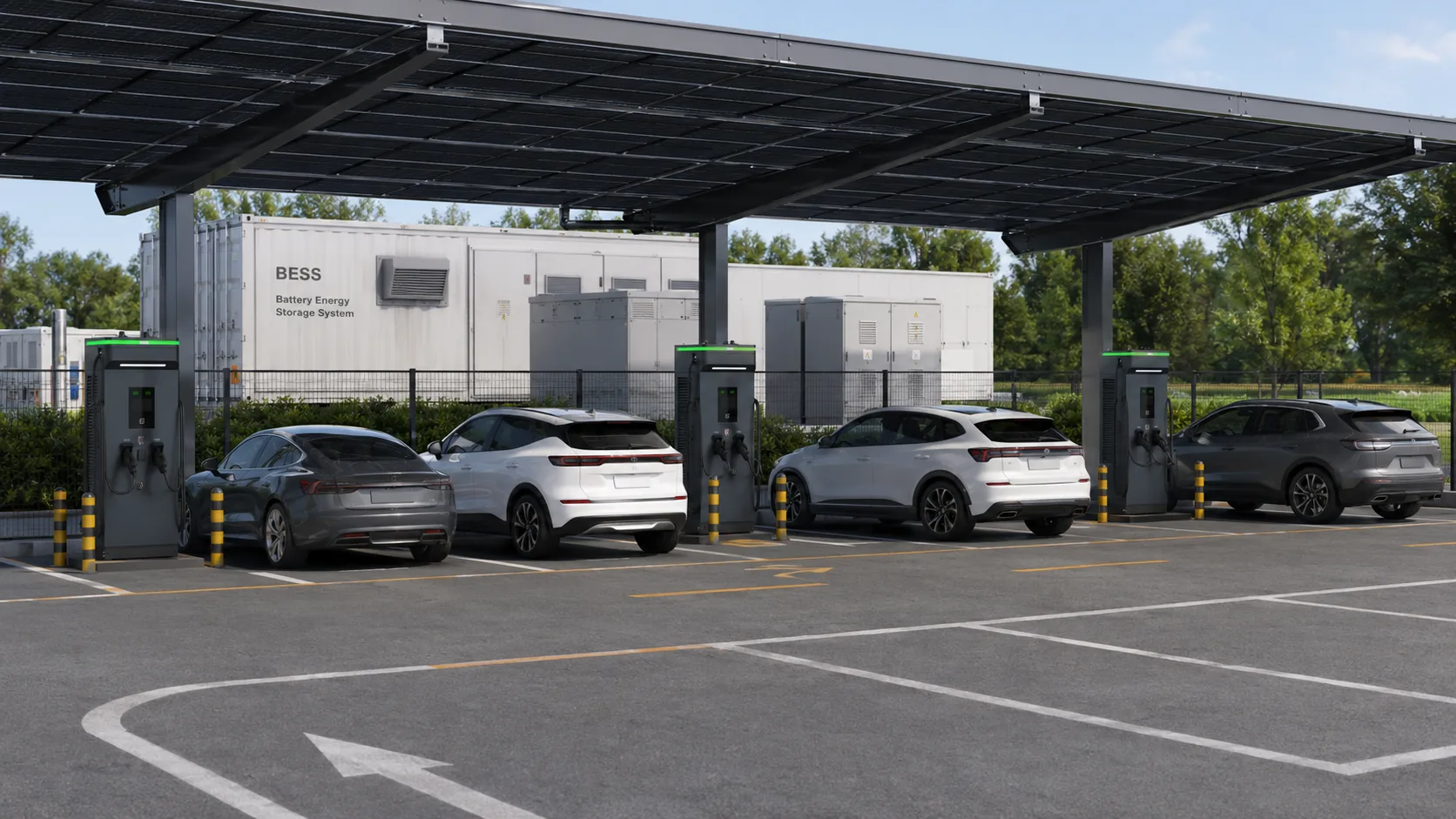

| Energy Integration | PV + BESS project path | Project-level EMS integration via Modbus TCP; charging operation and monitoring through charging management platform |
| Dynamic load management | Project / platform configuration should be confirmed according to site architecture |
| Electrical Parameter | Efficiency | Max. 95.5% |
| Power factor | ≥0.99 @ 50%–100% loading |
| THD | ≤5% @ 100% loading |
| Ripple factor | ≤±1% |
| Safety | RCD | Type A |
| Emergency stop | Yes |
| Electrical protection | Overcurrent protection; residual current protection; short circuit protection; surge protection; over / under voltage protection; over / under frequency protection; over / under temperature protection |
| Protection | Ingress protection | IP54 |
| Impact protection | IK10 without screen |
| Cybersecurity protection | High cybersecurity protection / cybersecurity requirements support according to EN Plus documentation |
| Certification | Certification | CE / CB |
| Applicable standards | EN IEC 61851-1:2019; IEC 61851-1:2017; IEC 61851-21-2:2012; EN 61851-23:2014; EN 61851-24:2014 |
| Regional certification boundary | Optional MID / POS / connector variants should not be treated as automatic compliance for all public charging regulations; confirm local requirements before deployment |
| Working Environment | Cooling method | Fan cooling |
| Operating temperature | -30°C to +50°C |
| Operating humidity | 5%–95% |
| Operating altitude | ≤2000 m |
| Dimensions | Charger dimension | 800 × 750 × 2000 mm (W × D × H) |
| Cable management dimension | 1060 × 804 × 222 mm (W × D × H) |
| Package | Charger package dimension | 960 × 908 × 2200 mm (L × W × H) |
| Cable management package dimension | 1320 × 480 × 390 mm (L × W × H) |
| Net weight | 417 kg | 445 kg | 481 kg |
| Gross weight | 461 kg | 489 kg | 525 kg |
| External packing | Wood case |
| Warranty & Documents | Warranty | 2 years |
| Main documents | Product datasheet; brochure; instruction sheet |
