| Main | Product name | Nano Series Duo Business Wallbox |
| Representative model | AC044K-TE-41D for T2S socket configuration; final SKU should be confirmed by connector and order setup |
| Product type | Dual-output business AC wallbox for managed commercial and semi-public charging |
| Product standard | EU |
| Product dimension | 540 × 360 × 199 mm (H × W × D) |
| Enclosure material | PC |
| Color | Black (PANTONE Black C) |
| Electrical | Power supply | 3P + N + PE |
| Rated voltage | 400V AC |
| Rated current | 2 × 32A |
| Frequency | 50 / 60Hz |
| Rated power | 2 × 22kW |

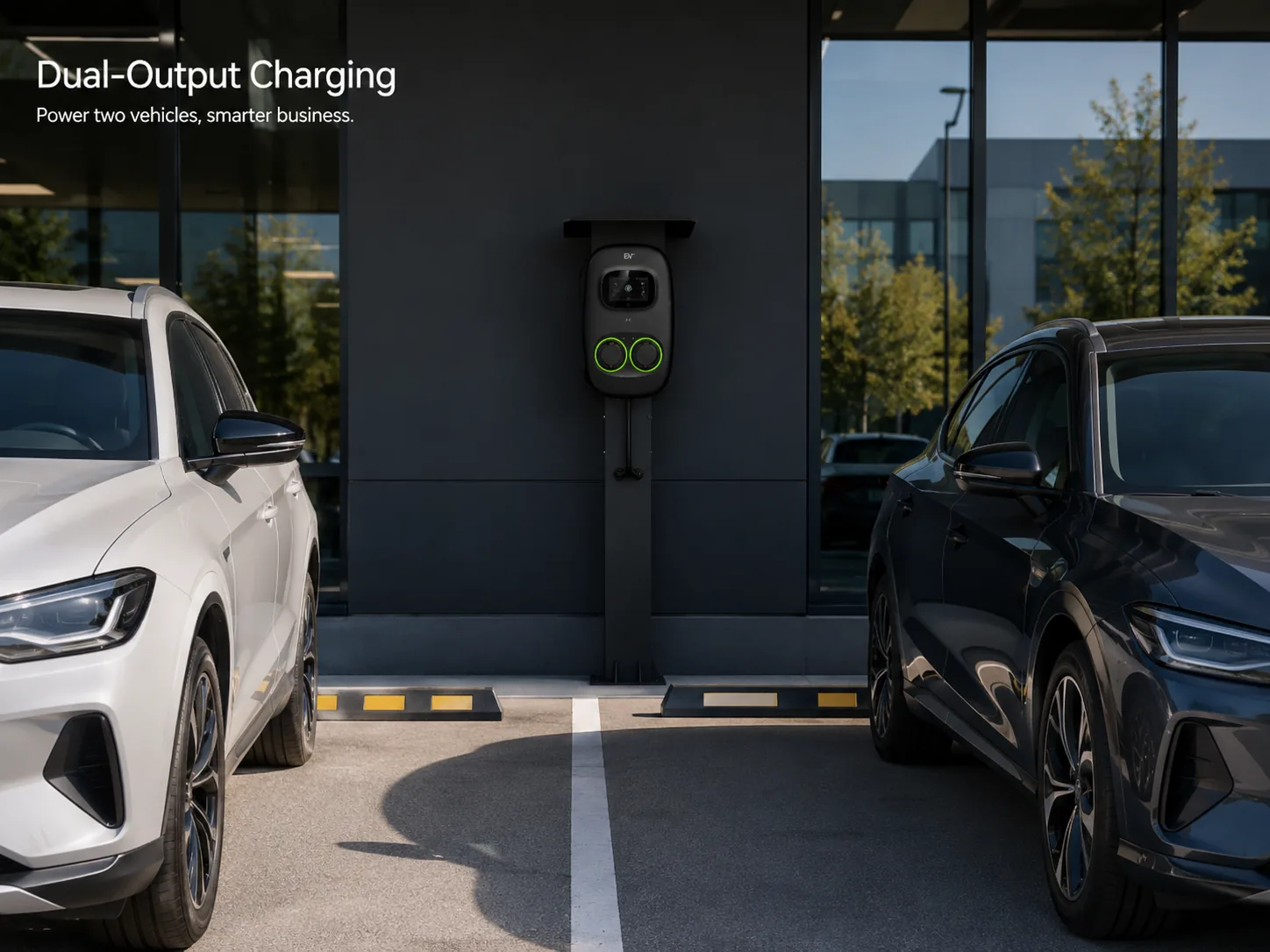

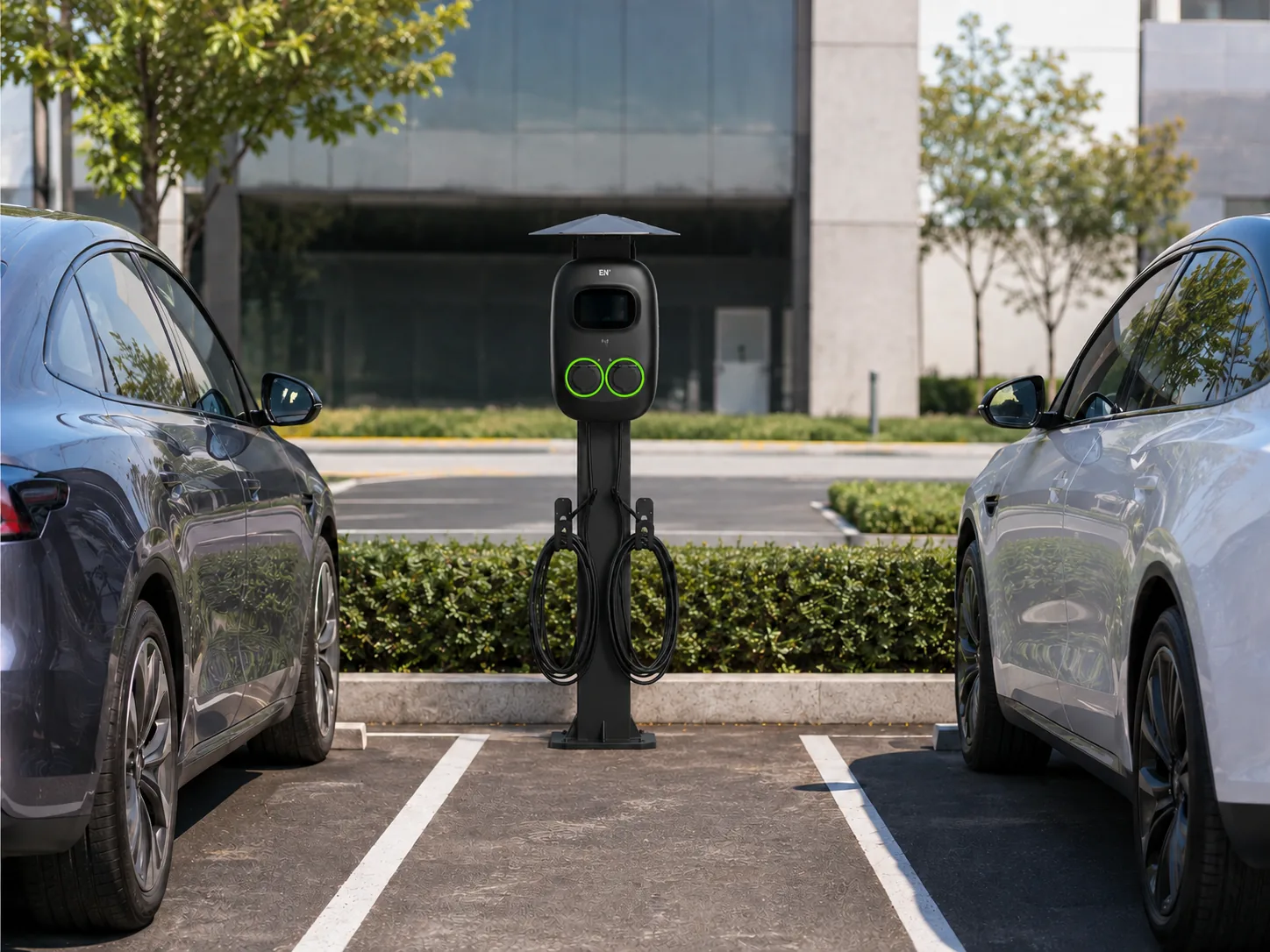

| Charging output | Simultaneous dual charging with up to 22kW per outlet |
| Connector, Installation & Maintenance | Connector type | Type 2 Socket / Type 2 Cable (7m) / T2S Socket |
| T2S usage | T2S socket option for France-specific projects |
| Cabling method | Top cabling / bottom cabling / rear cabling |

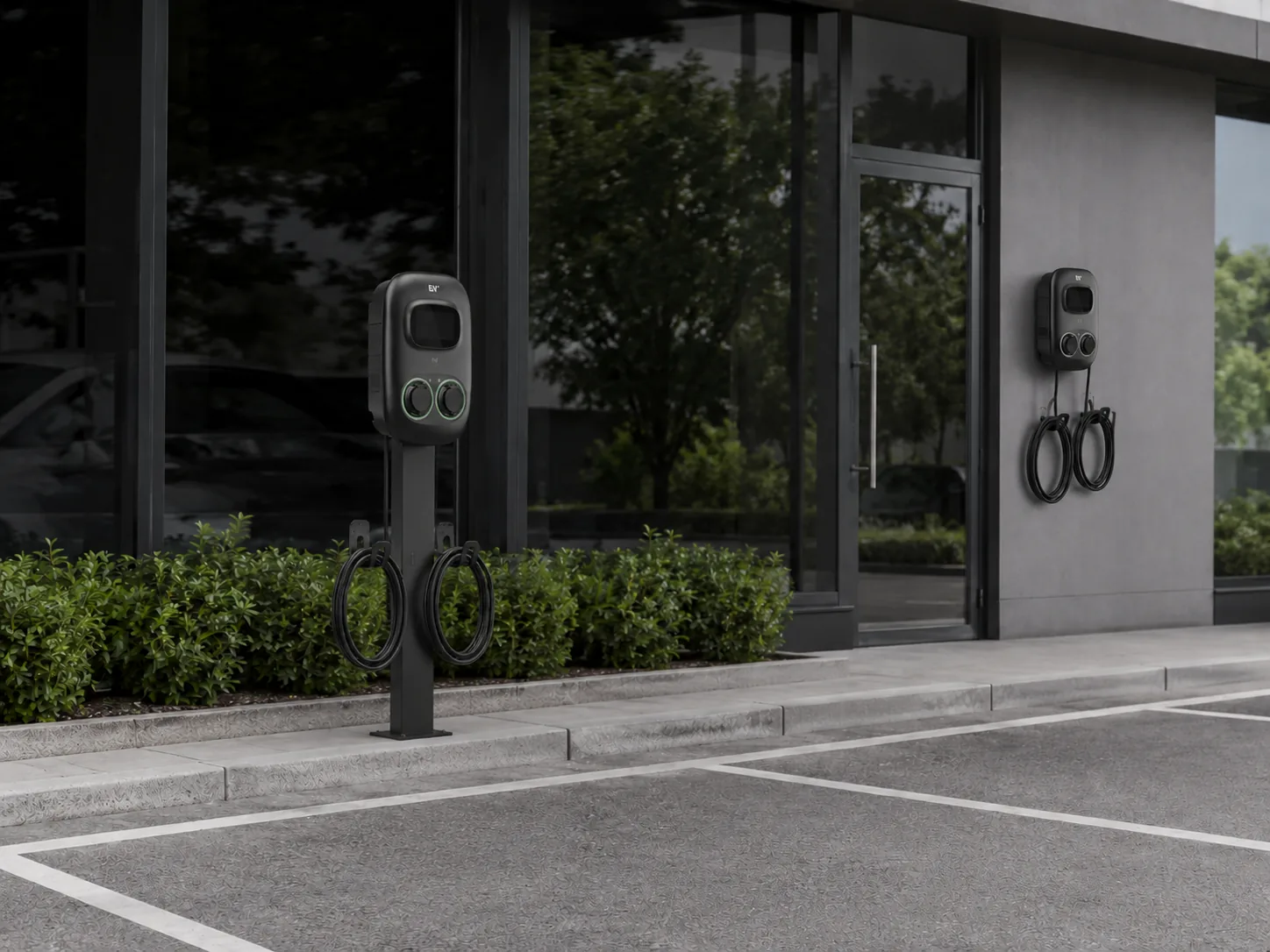

| Installation | Wall-mount / pole-mount optional |
| Backplate installation | Plug-in backplate design supports faster installation and easier charger removal for maintenance |
| Maintenance access | Side RCBO access, reset button and color status indication support service checks |
| Network access during installation | RJ485 / Ethernet connection and 4G insertion access by project configuration |
| Application fit | Workplace, commercial property, hotel, residential community, semi-public and operator-led AC charging projects |
| Interactive Interface | Touchscreen | 7-inch color touchscreen |
| Display interaction | Standby status, payment selection, charging status, countdown process, language selection and charging completion workflow |
| Payment | Ad Hoc / Kiosk solution / App; kiosk solution can support multiple AC chargers by project configuration |
| Start mode | Plug & Play / RFID card / App |
| RFID reader | Mifare ISO / IEC 14443A |
| User operation | Supports different commercial scenarios and user groups through touchscreen, RFID, Ad Hoc and App-based workflows |
| Commercial operation note | Payment and public charging requirements should be confirmed according to local market rules |
| Communication & Platform | OCPP | OCPP 1.6 JSON / OCPP 1.6J compatibility |
| Communication | Wi-Fi + 4G + Bluetooth + Ethernet |
| Backend integration | Supports integration with charging management portals, third-party platforms and customer backend systems |
| Cloud management | Optional cloud-based management for payment, invoicing, monitoring and remote O&M by project configuration |
| Remote operation | Charger monitoring, operating records, remote settings and remote management through platform configuration |

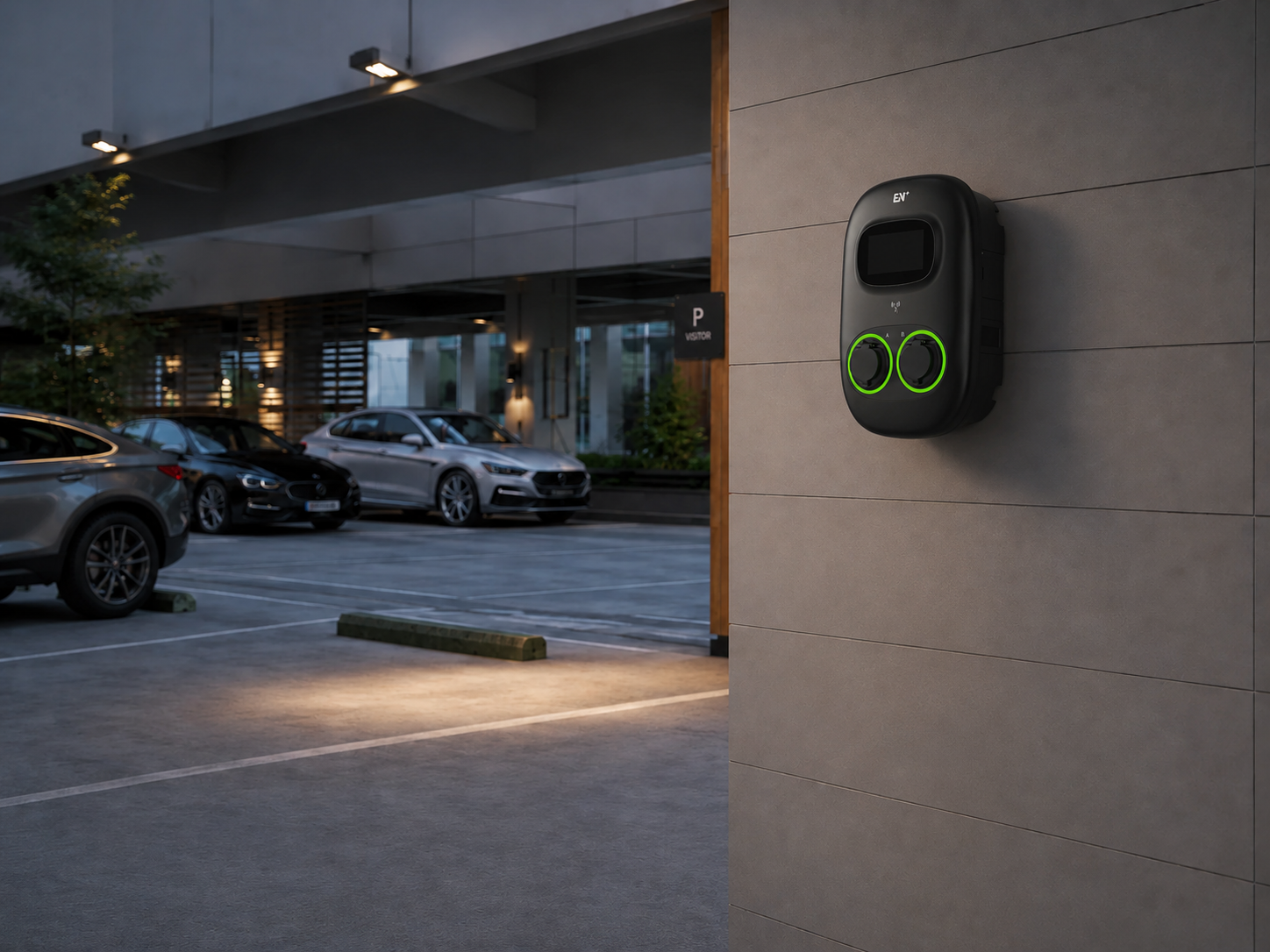

| Load management | Supports integration with load balancing solutions to optimize power distribution across multiple chargers |
| Ethernet cascade | Ethernet daisy-chain path can support simplified networking; suggested maximum 15 chargers by project design |
| Local / cloud management | Cloud management for hybrid networking scenarios; local management path for selected no-network scenarios |
| Platform boundary | Final third-party platform integration should be confirmed according to project requirements |

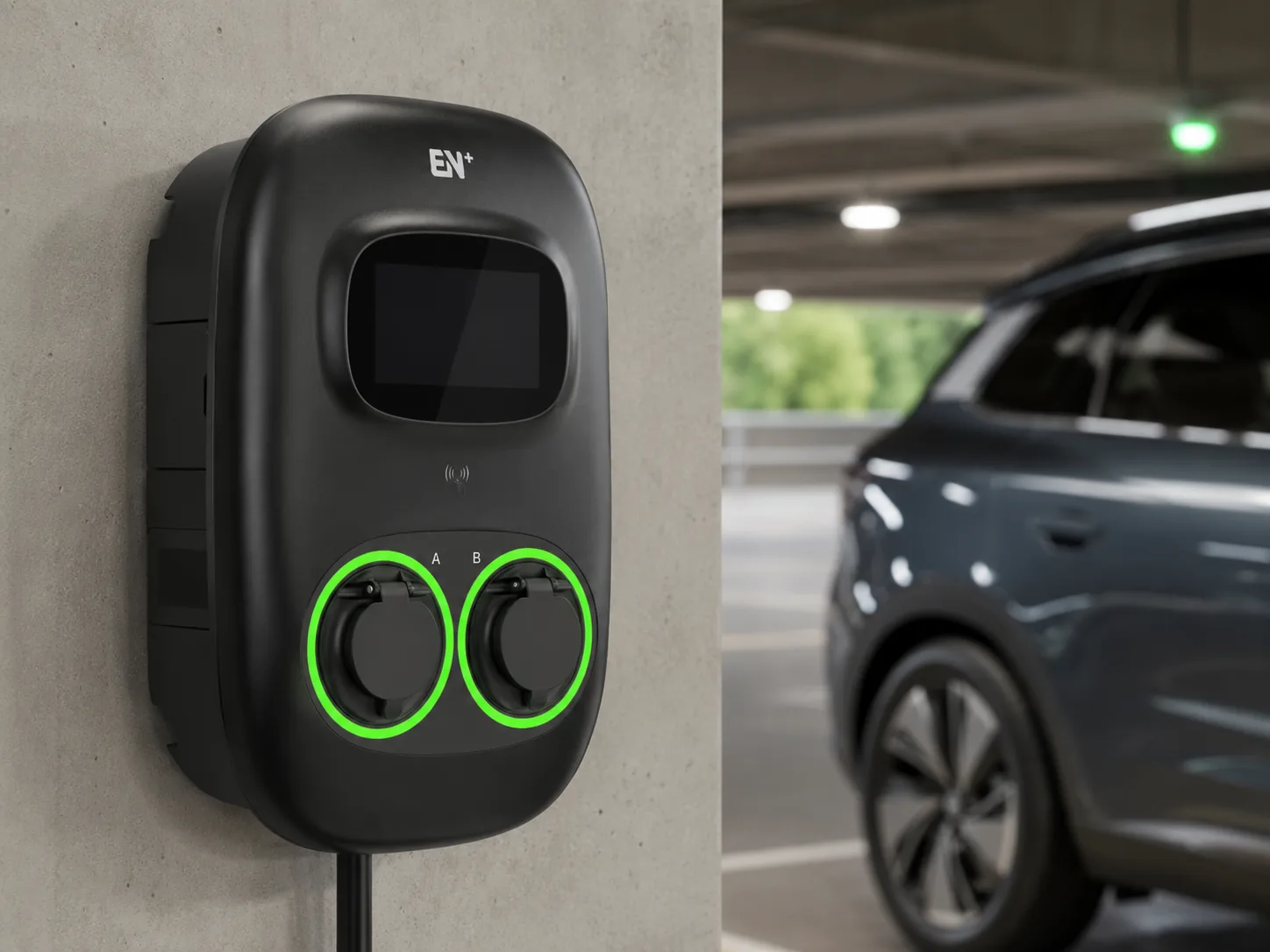

| Metering & Settlement | MID meter | MID-certified energy meter as standard |
| Metering accuracy | 1% with MID |
| Session measurement | Accurate session-level energy measurement for commercial operation records |
| Billing boundary | MID metering supports selected commercial measurement needs; local billing and reporting rules require market confirmation |
| Safety & Protection | RCD | 30mA Type A + 6mA DC |
| RCBO | Independent RCBO |
| Enclosure protection | IP54 |
| Impact protection | IK10 |
| Electrical protection | Overcurrent protection; residual current protection; surge protection; over / undervoltage protection; over / under frequency protection; overtemperature protection |
| Installation safety | Installation and circuit protection must be confirmed by qualified electricians according to local regulations |
| Operating altitude | ≤2000 m |
| Certification & Standards | Certification | CE-RED, MID Certified Meter, CE, CB, RoHS, REACH |
| Charging standards | IEC 61851-1:2017; EN IEC 61851-1:2019; EN IEC 61851-21-2:2021 |
| Radio / EMC standards | EN 300 328 V2.2.2:2019; EN 300 330 V2.1.1:2017; EN 301 489 series by final certificate |
| Market compliance note | Country-level public charging, payment and billing requirements should be confirmed before promotion |
| France configuration note | T2S socket option should be used only for France-oriented configurations when required |
| Working Environment | Operating temperature | -30°C to +50°C |
| Operating humidity | 5%–95% |
| Operating altitude | ≤2000 m |
| Warranty | 2 years |
| Package | Package dimension | Socket version: 620 × 466 × 245 mm (L × W × D); cable version: 635 × 430 × 345 mm (L × W × D) |
| Net weight | Socket version: 10 kg; cable version: 15.7 kg |
| Gross weight | Socket version: 12 kg; cable version: 18.8 kg |
| External package | Carton |
| Single pallet | Socket version: 30 sets; cable version: 20 sets |
| Container loading | 20'GP: socket version 300 sets / cable version 200 sets; 40'GP: socket version 630 sets / cable version 440 sets |
