Mobox DC Charger, 40kW, DC040K

Model: DC040K

Manufacturer Location: Shenzhen, China

Mobox Series DC Charger features an integrated portable design characterised by compact size
and lightweight construction. This design allows for quick power connection, easy mobility and
convenient vehicle transport.

Need Help? Please contact us today for a free consultation and pricing.

GET A QUOTE

* Please contact us directly for custom order or order in the large quantities.

Need an urgent quote?

7*24Hrs Online chat for fasted price estimate

Description

Specifications

Main

Model

DC040K

Product Standard

EU

Power Supply

3P+N+PE

Input Voltage

400 V AC ±10%

Input Current

63 A

Input Frequency

50 / 60 Hz

Output Voltage

200-1000V DC

Maximum Output Current

133.3 A

Maximum Output Power

40 kW

Basic Attributes

Charge Connector

CCS2

Number of Cable

1

Cable Length

5 m

Enclosure Material

  • Galvanized Steel

Colour

Granite Gray (RAL 7026)

Installation

Wall-mount / Pole-mount (Optional)

Interactive Interface

LED Indicator

Green / Yellow / Red

LCD Display

10' Colour Touch Display

RFID Reader

  • Mifare Classic ISO/IEC 14443-A
  • DESFire Duox ISO/IEC 14443-A
  • FeliCa JIS X 6319-4

Start Mode

App / QR code / RFID Card / POS (Optional)

Communication

Wi-Fi & Ethernet & 4G

Yes

OCPP

  • OCPP 1.6 Json

Electrical Parameter

Efficiency

Max 95.5%

Power Factor

  • ≥0.99@50%~100% Loading

THD

  • ≤5%@100% Loading

Ripple Factor

  • ≤±1%

Safety

RCD

Type A

Emergency Stop

Yes

Impact Protection

IK10 (w / o Screen)

Ingress Protection

IP54

Electrical Protection

  • Overcurrent protection
  • Residual current protection
  • Short circuit protection
  • Surge protection
  • Over / Under voltage protection
  • Over / Under frequency protection
  • Over / Under temperature protection

Certification

CE / CB

Certification Standard

  • EN IEC 61851-1:2019
  • IEC 61851-1:2017
  • IEC 61851-21-2:2021
  • EN 61851-23:2014
  • EN 61851-24:2014
  • EN 18031-1:2024

Warranty

2 Years

Working Environment

Cooling Method

  • Fan Cooling

Operating Temperature

  • -30°C to +50°C

Operating Humidity

5%-95%

Operating Altitude

≤2000 m

Package

Product Dimension

550 x 300 x 850 mm (W x D x H)

Package Dimension

746 x 450 x 1215 mm (L x W x H)

Net Weight

79 kg

Gross Weight

110 kg

External Packing

Wood Case

Documents

Main documents

Documents

  • Product Datasheet
  • Brochure
  • Instruction sheet

You May Also Like

Nano Business, 2*22kW, MID Certified Meter, 7” Colour Touch Screen, T2S Socket * 2 Connectors, 3P+N, 2*32 A, AC044K-TE-41D

Learn More
Send Price

Nano Business, 2*22kW, MID Certified Meter, 7” Colour Touch Screen, Type2 Socket * 2 Connectors, 3P+N, 2*32 A, AC044K-BE-41D

Learn More
Send Price

Nano Business, 2*22kW, MID Certified Meter, 7” Colour Touch Screen, Type2 Cable * 2 Connectors, 3P+N, 2*32 A, AC044K-AE-41D

Learn More
Send Price

Argo Pro, 22kW, 4.3″ LCD, No MID Certified Meter, Type2 Cable, 3P+N, 32 A, AC022K-AE-53A

Learn More
Send Price

Argo Pro, 22kW, 4.3″ LCD, No MID Certified Meter, Type2 Socket, 3P+N, 32 A, AC022K-BE-53A

Learn More
Send Price

FAQ

What technical specifications do I need to provide to start the customization project?

We require detailed information about your charging needs, such as charging speed, voltage, power, etc. If you have specific technical specifications, please provide them to us.

The timeline for the EVSE customization project depends on its specific requirements and the current project schedule. Typically, the project takes at least 5 weeks to complete.
What kind of design drawings do I need to provide?
We require design drawings regarding the charging station’s size, shape, material, and color. If you don’t have these drawings, we can provide design services for you.
Yes, we offer a wide range of EV Chargers that have a proven track record of stability and reliability. You can select the one that best suits your requirements and conduct initial testing.
I’m not familiar with the EV charging field. Can I customize EVSE?
Don’t worry. We have many clients who are new to this field. We will communicate with you in detail and provide professional product suggestions.

Yes, you are welcome to visit our factory in Shenzhen, China. Many customers are impressed by our production capacity and management efficiency. However, please note that visits to our factory are by appointment only. Therefore, please confirm the visiting date with our sales personnel before making travel arrangements.

Yes, you can easily manage and allocate charging costs to multiple users with our advanced EV Charger software. Our software offers flexible and customizable billing options, allowing you to set up user accounts and assign charging costs based on individual usage. This ensures a fair and transparent billing process for all users.

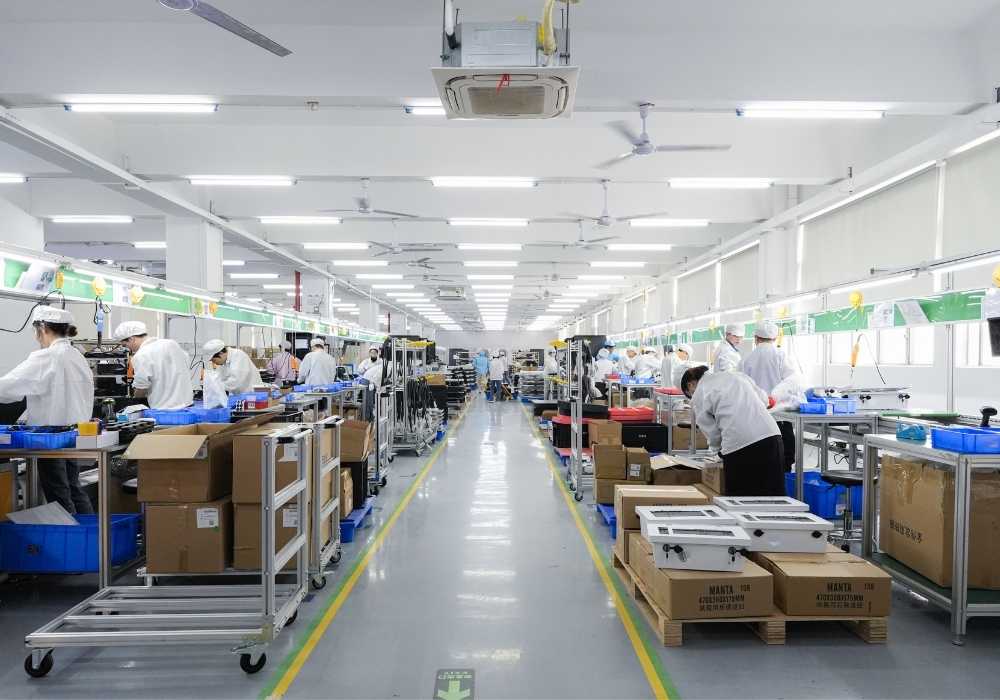

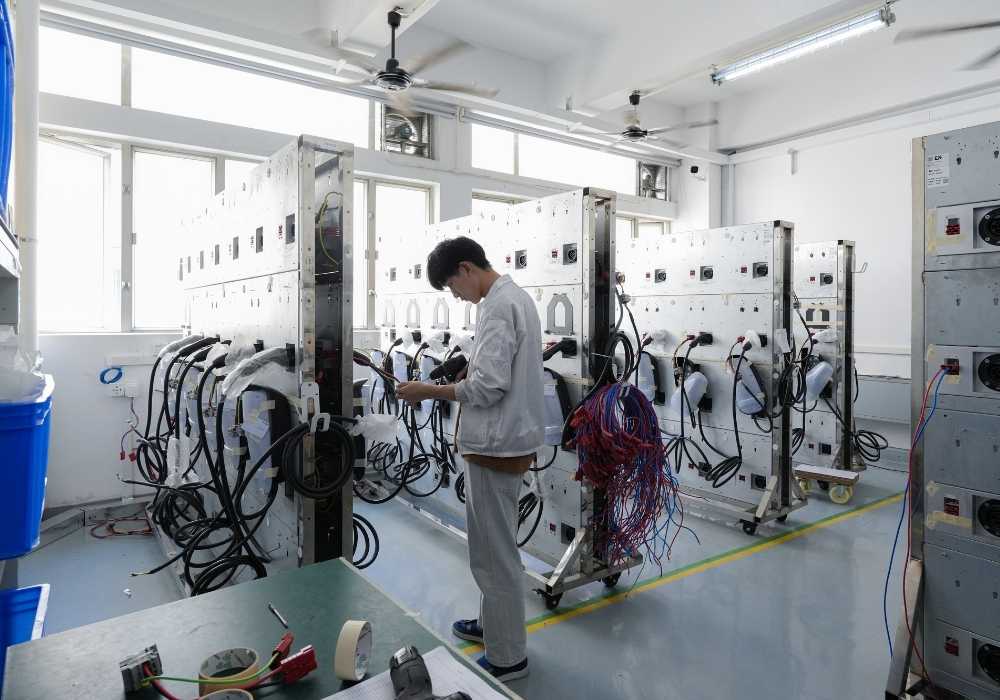

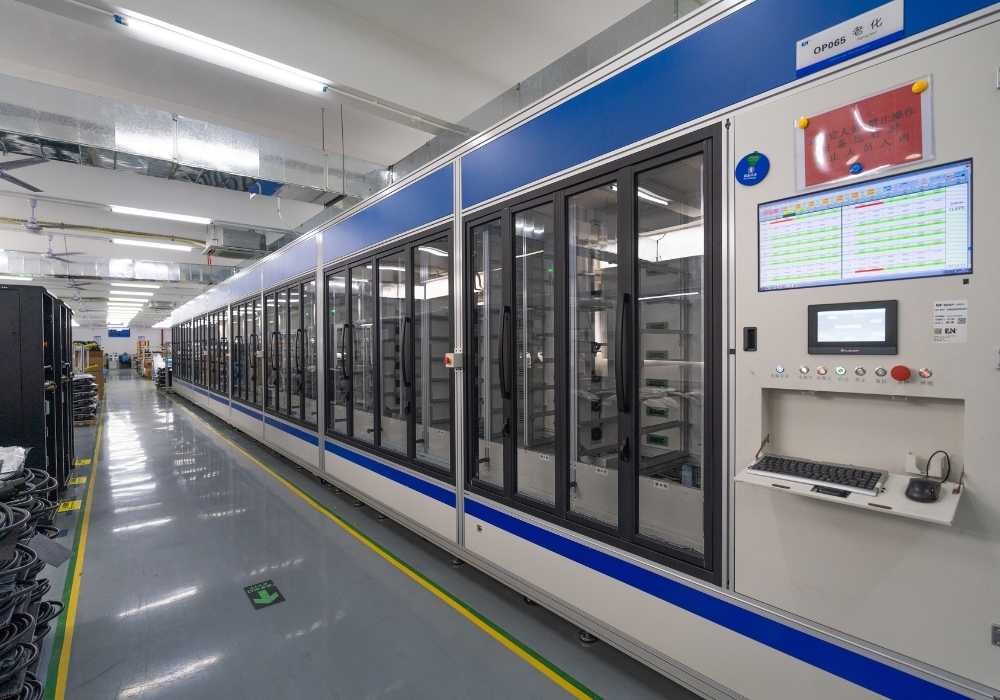

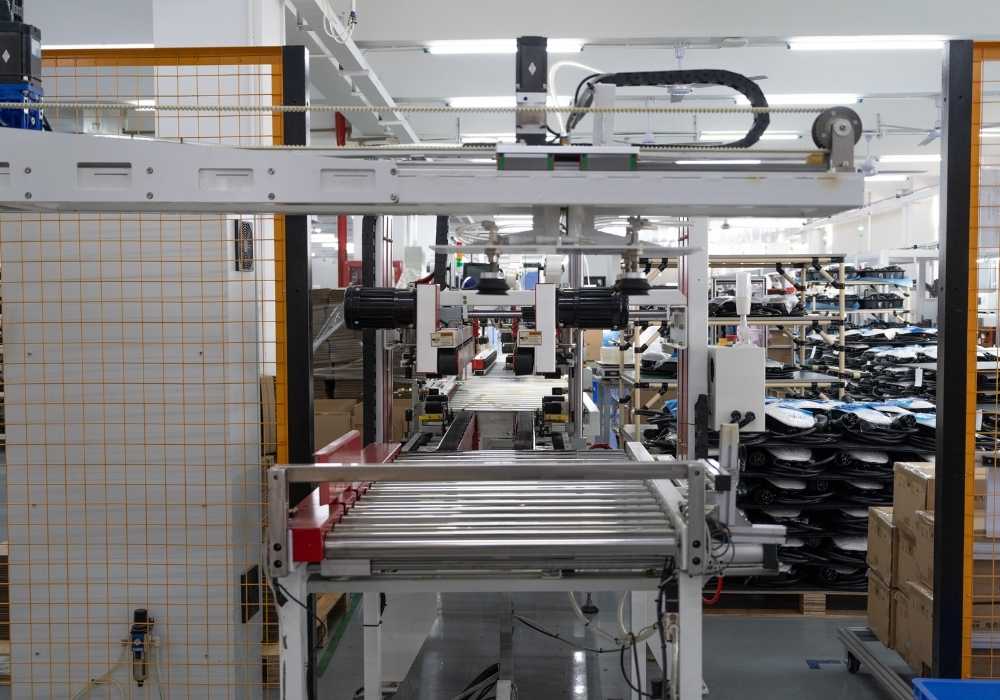

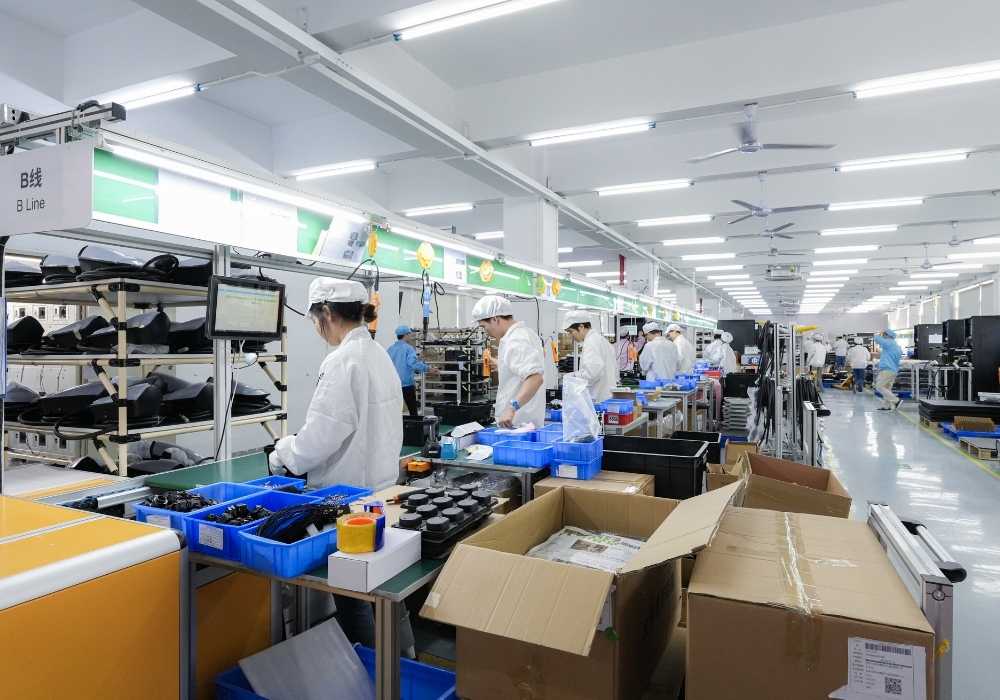

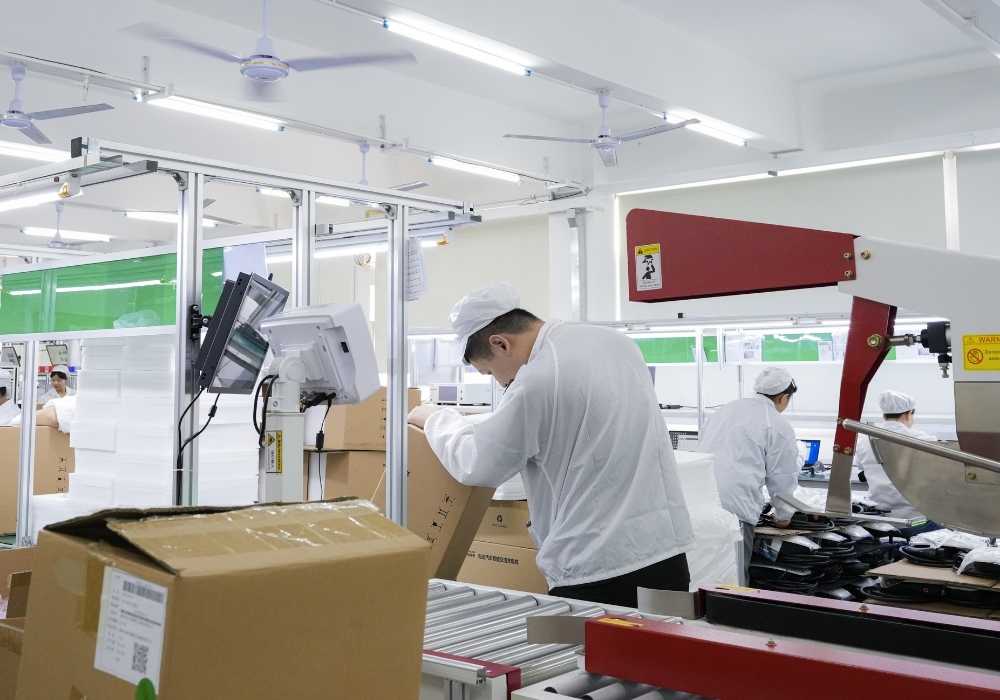

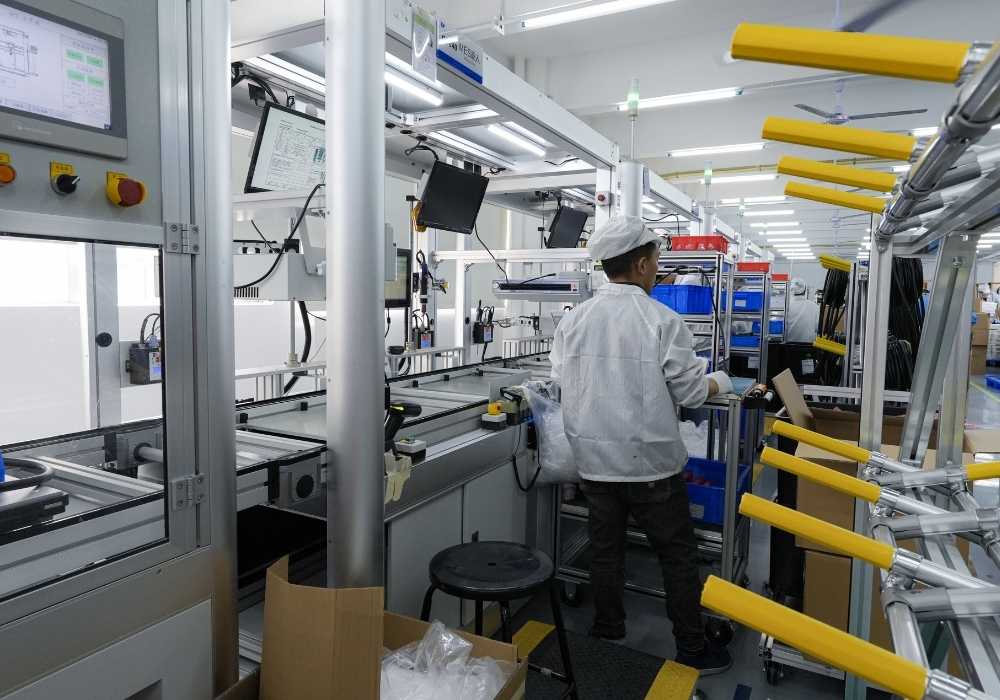

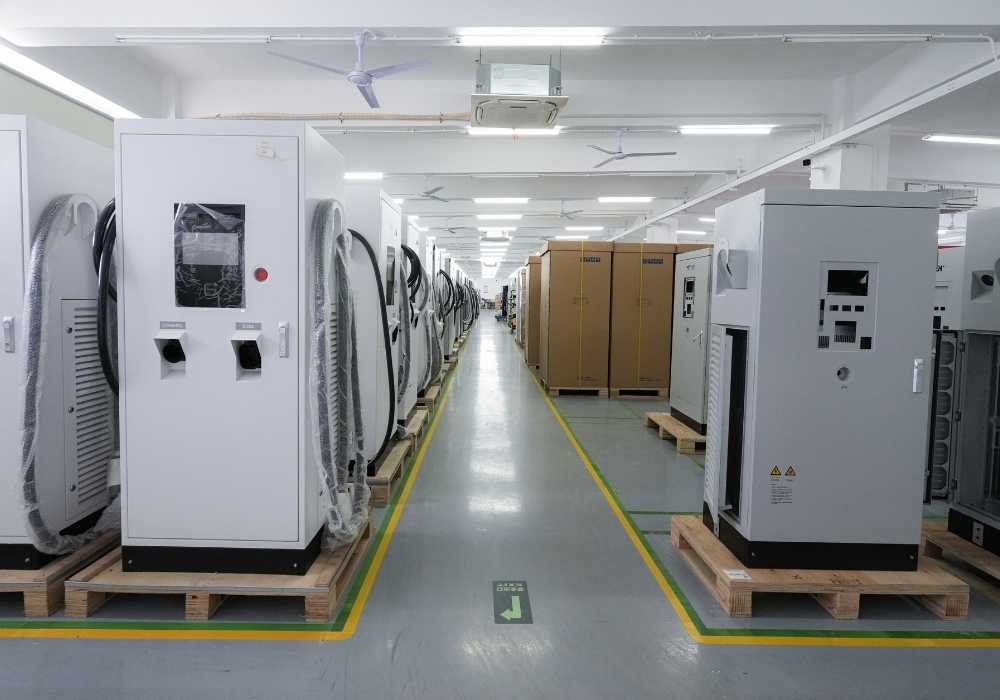

Wecome to Visit Our Factory
