A compact 22kW three-phase AC business wallbox for workplace, residential community, hotel, destination and controlled-access parking projects. Argo Pro supports optional MID metering, internal RCBO, payment paths and connected operation for business charging scenarios.
* Please contact us directly for custom order or order in the large quantities.
7*24Hrs Online Chat for fastest price estimate
Argo Pro is positioned for buyers who need a commercial AC wallbox with flexible access control, communication options, optional metering, clear user guidance and installation choices for managed parking environments.
Built for AC charging projects that need stronger daily charging capacity than basic residential wallboxes.
Type 2 socket supports many European commercial deployments, while 5 m cable supports tethered-use sites.
OCPP 1.6 JSON and multiple communication methods support operator management and remote visibility.
The 298 × 262 × 135 mm body supports practical wall mounting in parking and commercial building environments.
The following project advantages translate Argo Pro hardware and connectivity into practical procurement value for distributors, installers, operators and commercial property owners.
Argo Pro gives B2B buyers a stronger AC charger option for commercial parking sites where access control, backend connectivity and reliable daily operation matter.

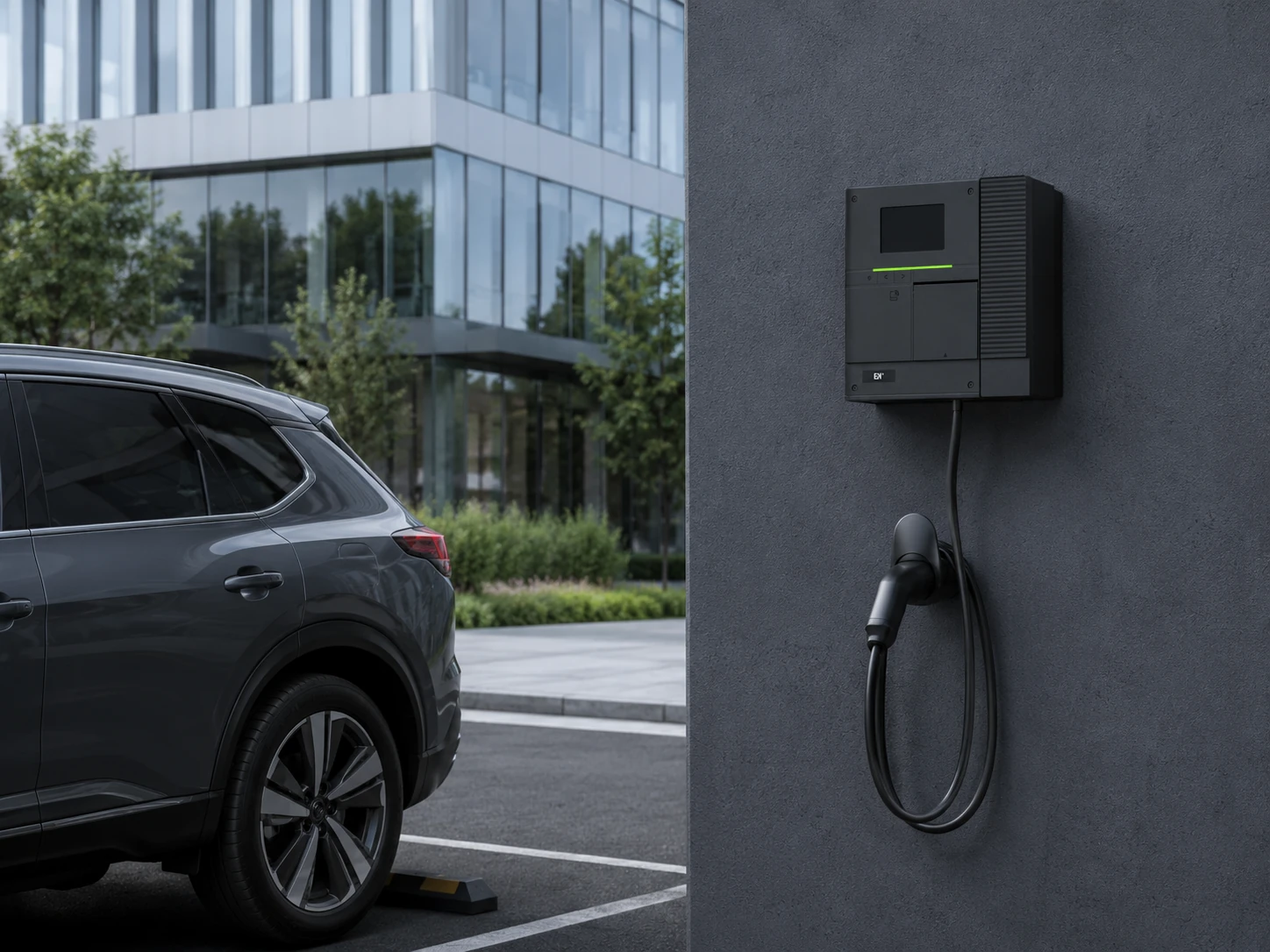

The Type 2 socket version is often preferred for European commercial AC charging because it keeps the charger cleaner when not in use and gives drivers more flexibility. The 5 m cable version is useful when a tethered connector is preferred.

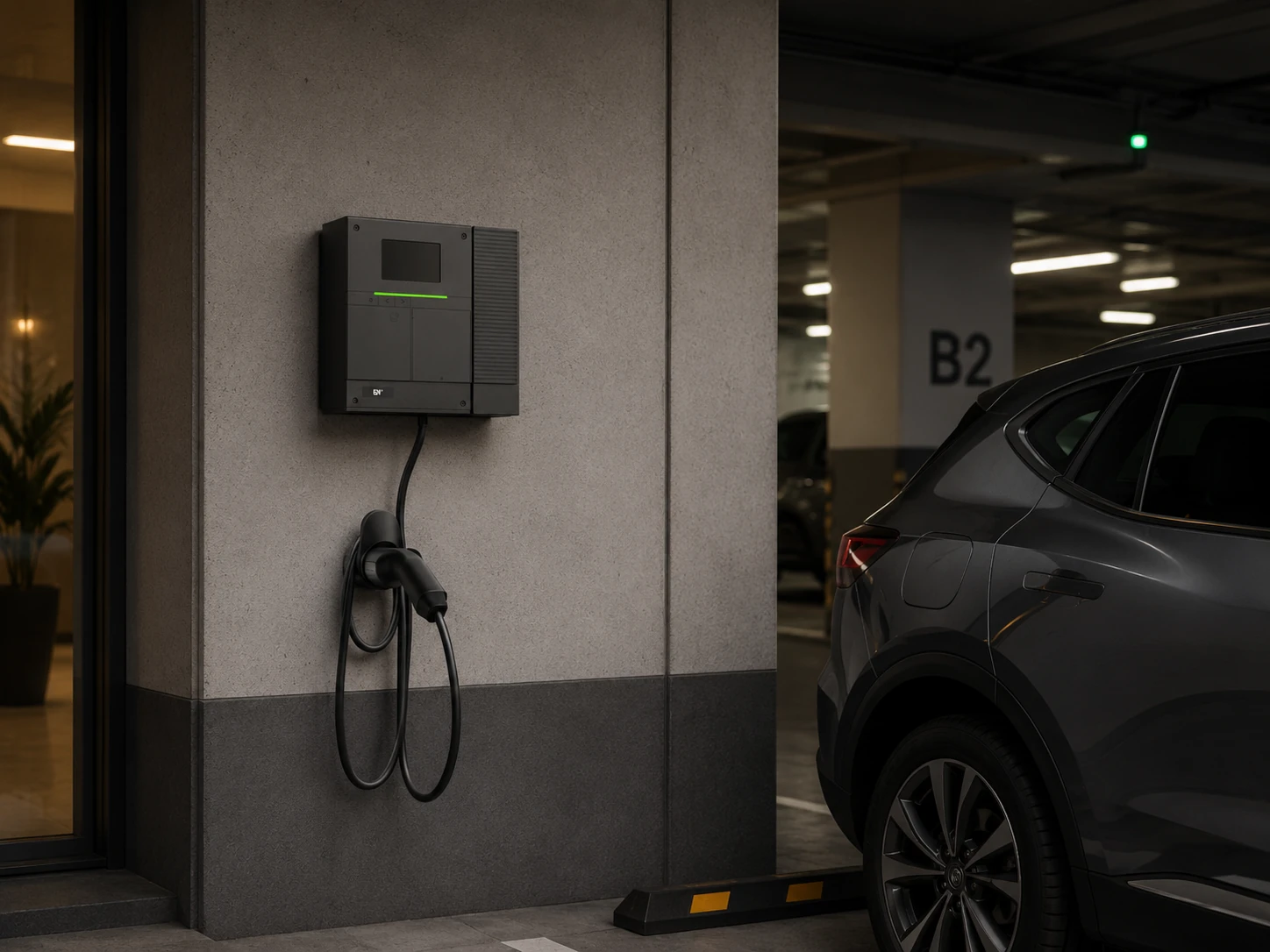

Argo Pro works well in indoor parking garages and managed parking environments where equipment should not interfere with vehicle movement, door opening or daily parking flow.

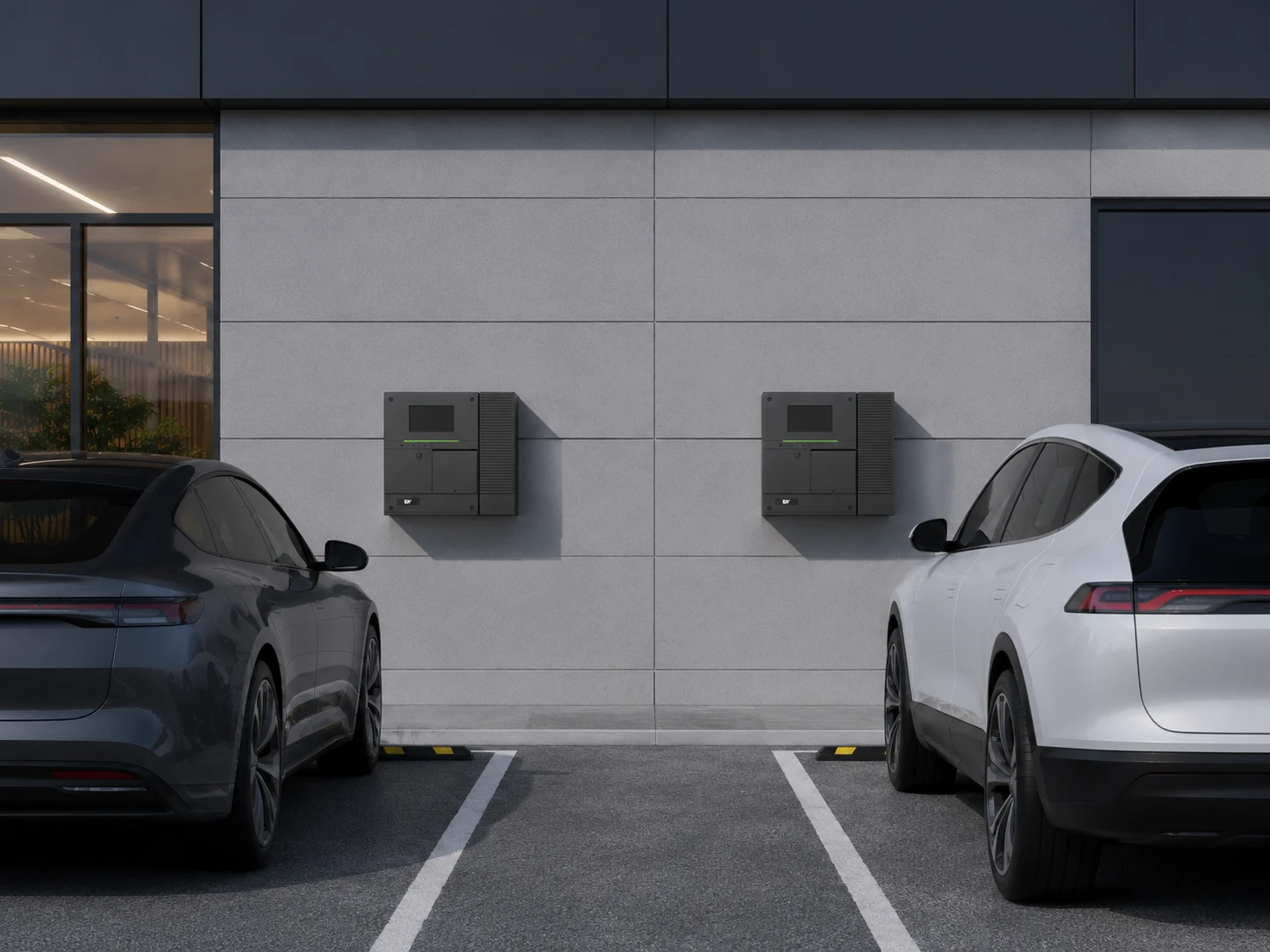

For larger parking projects, Argo Pro can be deployed across multiple bays with consistent product appearance and platform-ready communication, helping operators build a cleaner AC charging network.

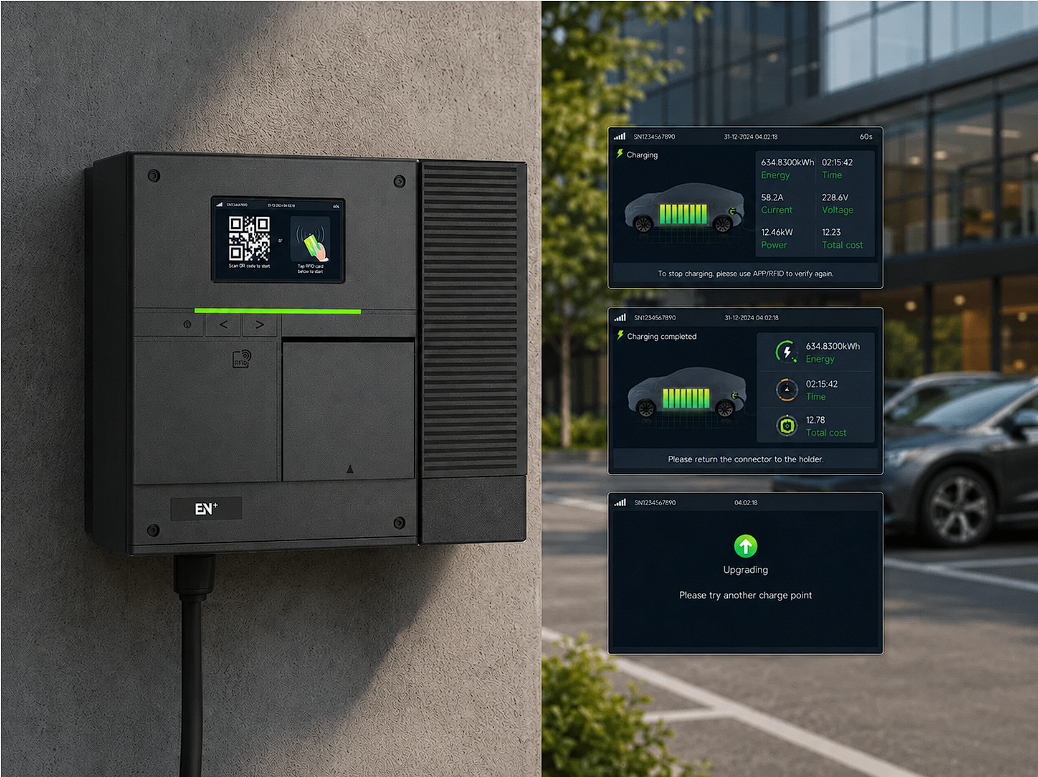

Selected Argo Pro versions include a 4.3-inch LCD display for user guidance. The interface supports practical charging steps such as start method selection, charging status and completion prompts.
Argo Pro is most persuasive when the buyer needs a compact commercial AC charger with flexible access control, platform connectivity and practical deployment options.

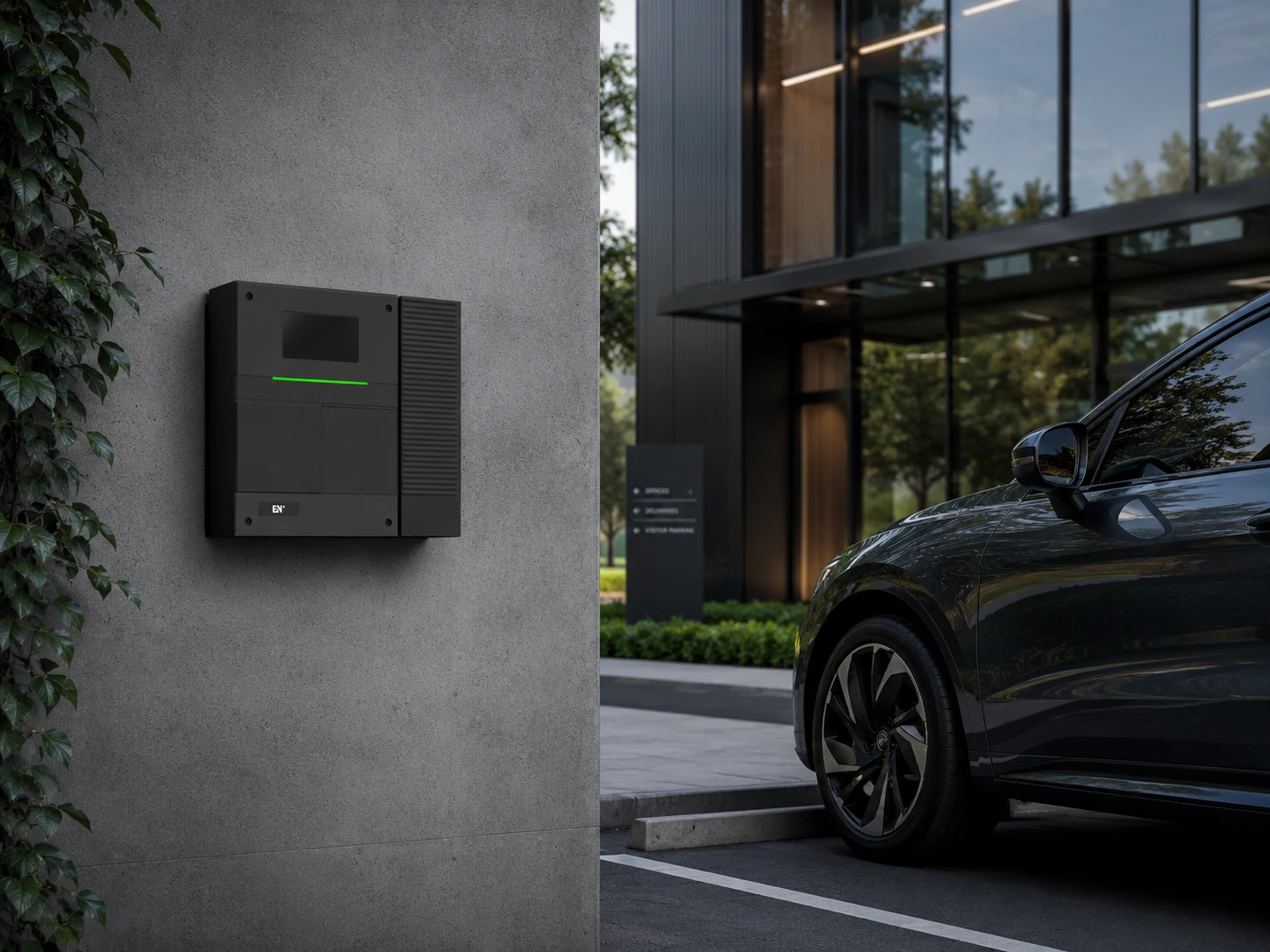

For offices, industrial parks and corporate parking areas that need employee and visitor charging management.
For retail, office buildings and mixed-use projects that need scalable AC charging without oversized DC infrastructure.
For guest parking areas where clear user guidance, RFID access and APP-based workflows can improve charging experience.
For shared parking spaces that need controlled access, backend monitoring and consistent product deployment.
For managed AC charging points where payment, user authorization and platform connection may be required.
For partners that need a commercial AC charger to complement home wallboxes and DC charging products.
If the project needs a simpler AC wallbox, dual-output business charging, or a more home-focused product, these adjacent models may be more suitable.
For projects that need a simpler Argo-family wallbox with practical AC charging performance.
View product
For shared parking projects that need dual-output AC charging and a more business-oriented interface.
View product
For residential and PV-ready home charging projects that need a more home-focused wallbox.
View productComplete parameters for project evaluation, distributor comparison and AC charging site configuration.
| Category | Parameter | Argo Pro 22 kW |
|---|---|---|
| Main | Product name | Argo Pro Series Business Wallbox |
| Main | Product positioning | Commercial AC wallbox for workplace, hospitality, residential community, semi-public and operator-managed charging projects |
| Main | Model references | AC022K-BE-51A / AC022K-AE-51A; AC022K-BE-53A / AC022K-AE-53A; AC022K-BE-56A / AC022K-AE-56A; AC022K-BE-57A / AC022K-AE-57A |
| Electrical | Power supply | 3P + N + PE |
| Electrical | Rated voltage | 400 V AC |
| Electrical | Rated current | 32 A |
| Electrical | Frequency | 50 / 60 Hz |
| Electrical | Rated power | 22 kW |
| Electrical | Power measurement accuracy | 51A and 56A: 1% with MID; 53A and 57A: 2% |
| Connector | Connector options | BE: Type 2 socket; AE: Type 2 cable, 5 m |
| Basic attributes | Enclosure material | PC |
| Basic attributes | Size | 298 × 262 × 135 mm (W × D × H) |
| Basic attributes | Colour | Black, PANTONE Black C |
| Basic attributes | Installation | Wall-mount / Pole-mount optional |
| Interactive interface | LED indicator | Green / Yellow / Red |
| Interactive interface | RFID reader | ISO/IEC 14443 Type-A, MIFARE Classic, MIFARE DESFire Duox |
| Interactive interface | Start mode | Plug to Charge / RFID card / APP |
| Interactive interface | LCD display | 51A and 53A: 4.3-inch LCD; 56A and 57A: screenless |
| Communication | Communication | Wi-Fi + Ethernet + Bluetooth + 4G |
| Communication | OCPP | OCPP 1.6 JSON |
| Communication | Payment workflow | Ad Hoc / Kiosk solution / APP, depending on project configuration |
| Safety | Embedded leakage current protection | 30 mA Type A + 6 mA DC |
| Safety | Internal RCD | RCBO |
| Safety | Impact protection | IK10, except screen |
| Safety | Ingress protection | IP54 |
| Safety | Electrical protection | Overcurrent protection, residual current protection, surge protection, over / under voltage protection, over / under frequency protection, over temperature protection |
| Certification | Certification | CE / CB / RoHS / REACH |
| Certification | Certification standards | EN IEC 61851-1:2019; EN IEC 61851-21-2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2007+A1; EN IEC 61000-6-4:2019; EN 300 328 V2.2.2:2019; EN 300 330 V2.1.1:2017; EN 301 489-1 V2.2.3:2019; EN 301 489-3 V2.1.1:2019; EN 301 489-17 V3.2.0:2017; EN 62311:2020; EN 18031-1:2024 |
| Warranty | Standard warranty | 2 years |
| Working environment | Operating temperature | -30°C to +40°C |
| Working environment | Operating humidity | 5%–95% |
| Working environment | Operating altitude | ≤ 2000 m |
| Package | External package | Carton |
EN Plus supports global partners with AC chargers, DC chargers, software platforms and project-oriented OEM / ODM cooperation. Argo Pro fits into a broader AC charging portfolio for commercial, semi-public and operator-led projects.
Offer residential, commercial, dual-output and project-oriented AC charger options for different deployment roles.
Connect chargers to backend systems for visibility, remote management, operating records and third-party platform integration by project scope.
Support branding, connector configuration, market adaptation and project-specific requirements according to order conditions.
Support different installation, communication, metering and product-configuration paths according to site and operating requirements.
Share your market, connector preference, installation method, metering requirement, payment workflow and platform requirements. EN Plus can help match the right Argo Pro configuration for your project.
