Compact footprint for tighter parking layouts
A small enclosure helps distributors and installers position Stella for garages, apartment parking and residential sites where visible wall space is limited.

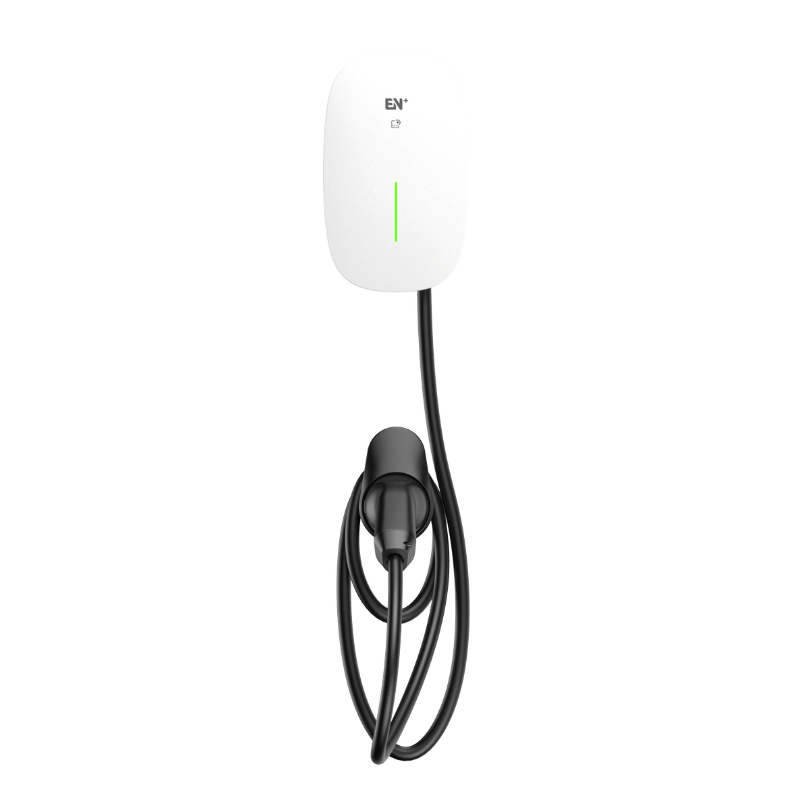

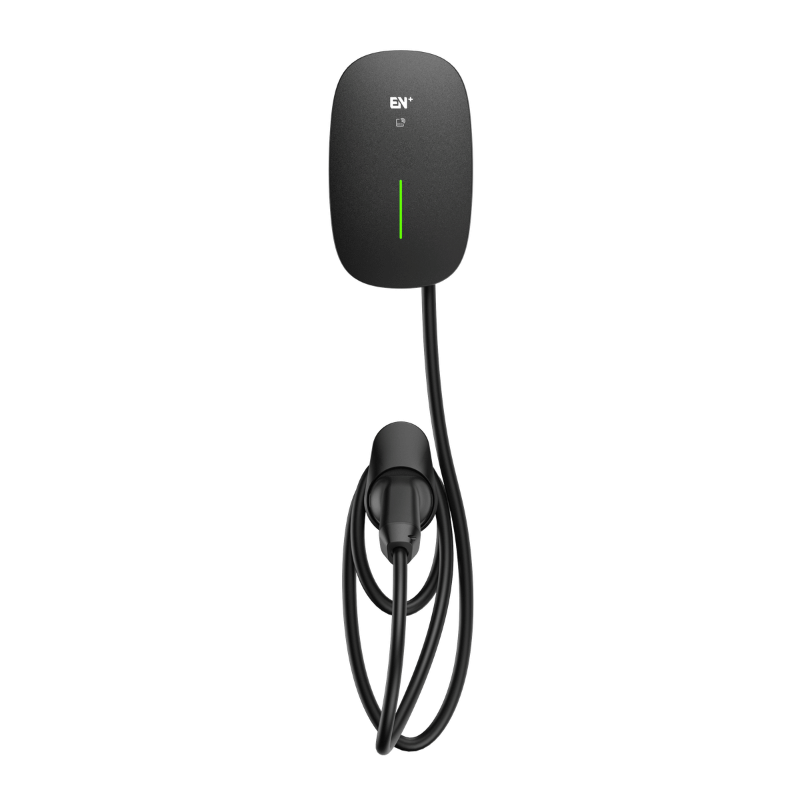

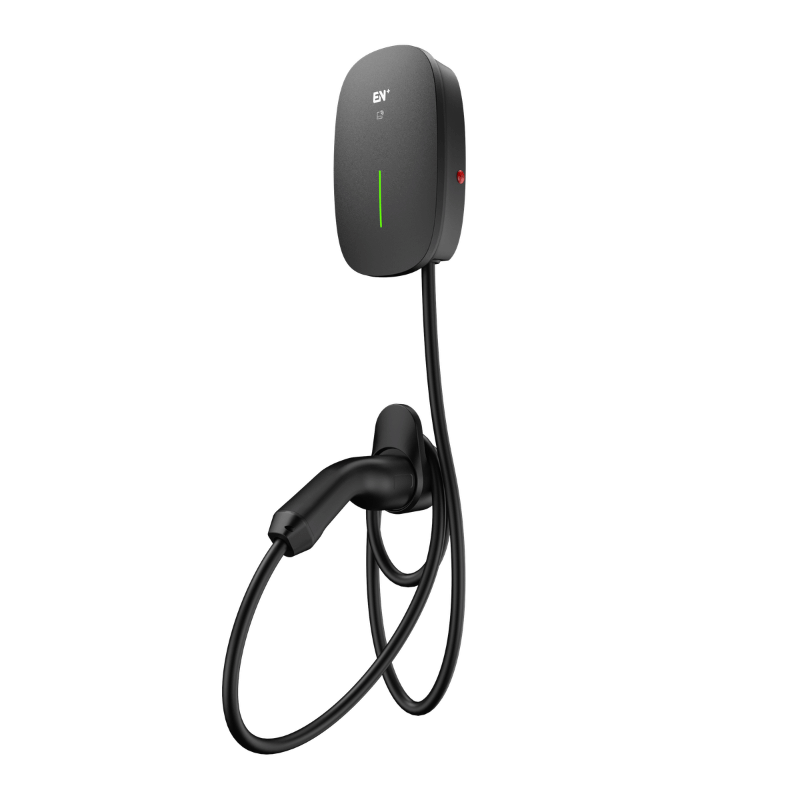

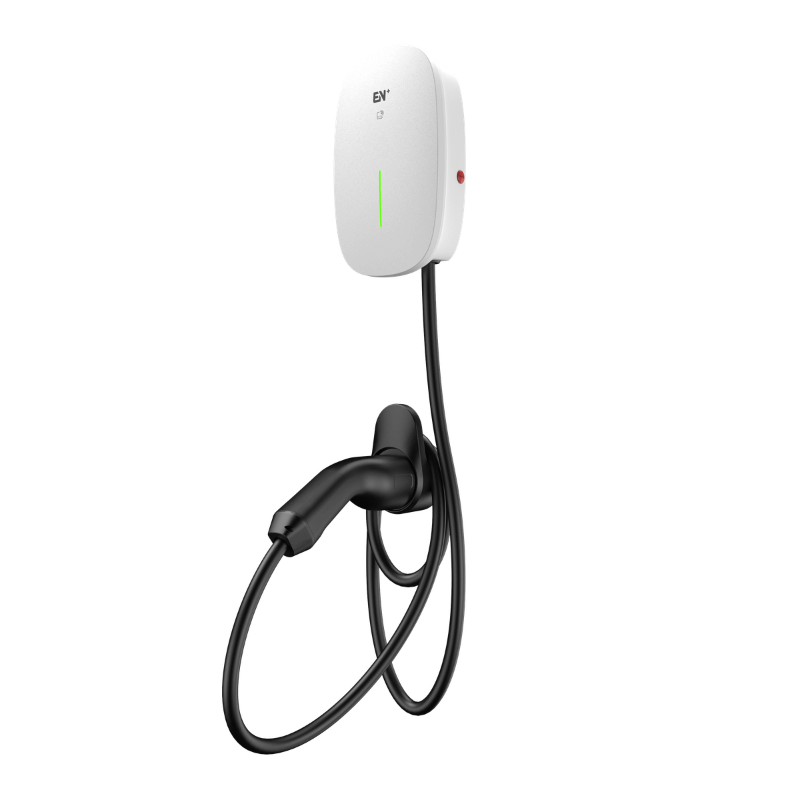

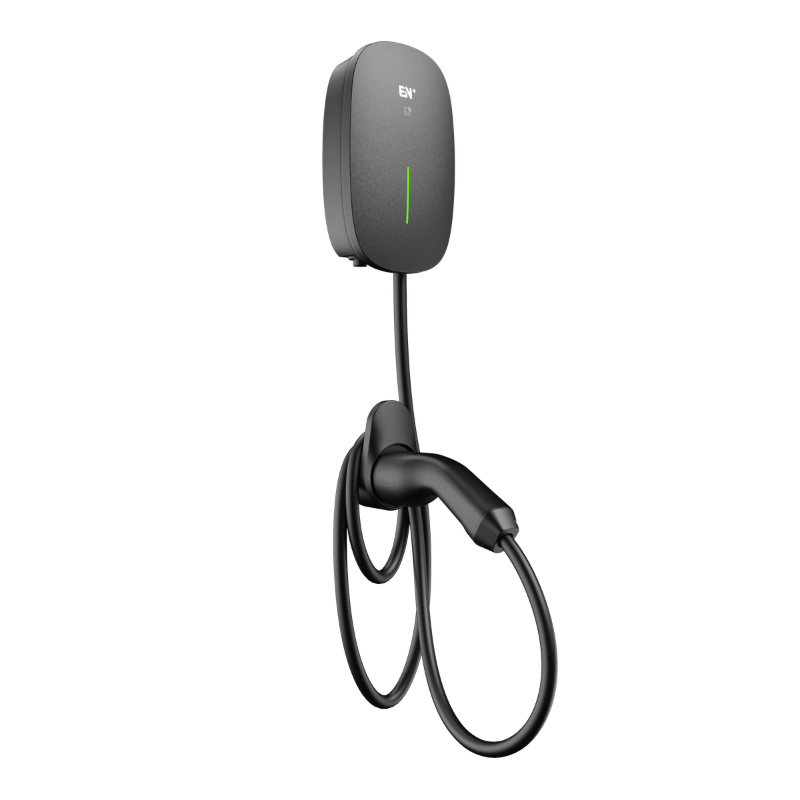

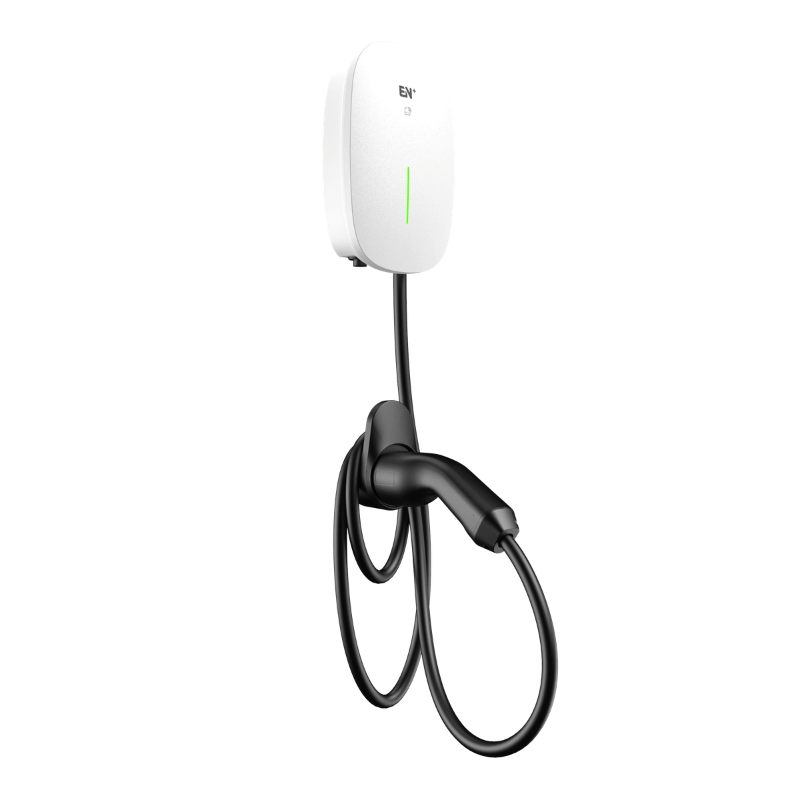

An ultra-compact 7kW AC home charger for cost-sensitive residential markets, limited parking spaces and high-value channel programs. Stella focuses on essential charging needs, simple daily operation and reliable home charging performance.
* Please contact us directly for custom order or order in the large quantities.
7*24Hrs Online Chat for fastest price estimate
Stella is strongest when the project requires a compact product footprint, controlled device cost, straightforward installation, essential connected operation and reliable daily charging rather than a premium PV / EMS wallbox specification.
A small enclosure helps distributors and installers position Stella for garages, apartment parking and residential sites where visible wall space is limited.
Wi-Fi, Bluetooth, App control, RFID authorization, NFC-enabled RFID use and Plug to Charge cover core operation needs while keeping Stella positioned for high-value deployment.
Reserved CT and RS485 interfaces support optional load balancing and PV-charging configurations when the required accessories and software settings are applied.
IP65 enclosure protection, IK08 impact rating and UL94 V-0 housing support residential and semi-public locations where daily durability matters.
NFC-enabled RFID use on supported iOS / Android devices gives partners an additional access method when users do not want to rely only on physical cards.
The optional 1m pre-connected input cable can simplify the installer workflow when the project requires a more standardized connection approach.
Stella focuses on the essentials: single-phase 7kW charging, compact form factor, RFID / NFC-enabled access, fixed-cable convenience, optional CT / RS485-based load balancing and a practical cost-performance position for volume-oriented AC wallbox projects.

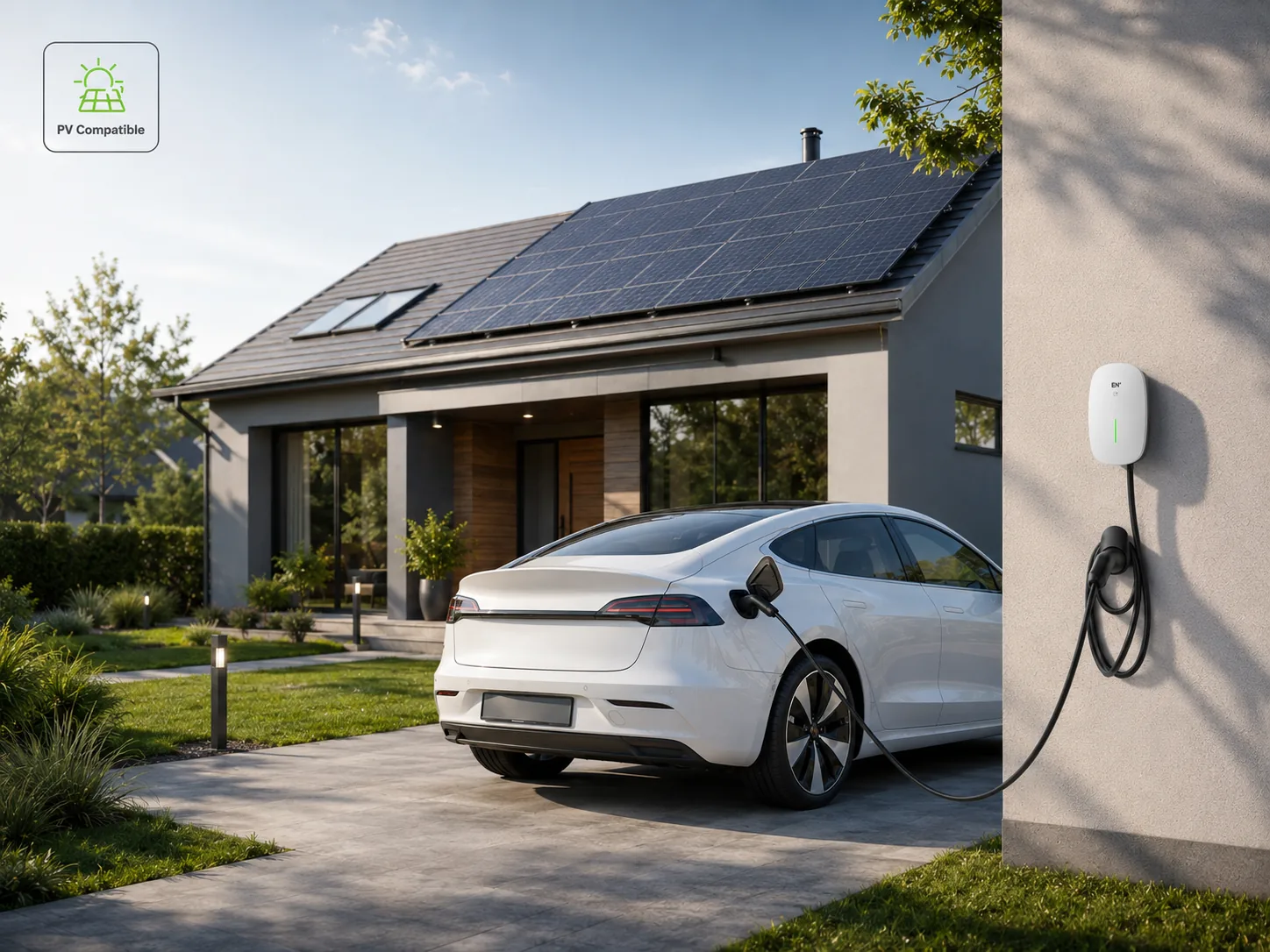

Stella gives distributors and installers a cost-controlled AC wallbox for residential PV packages where the objective is practical solar-aligned charging, essential smart control and dependable daily use rather than premium energy-management hardware.
Supports channel programs that need a lower-cost alternative below premium PV-ready wallboxes while retaining a credible PV-compatible message.
7kW, 230V and 32A single-phase output align with mainstream residential charging demand while keeping hardware specification disciplined.

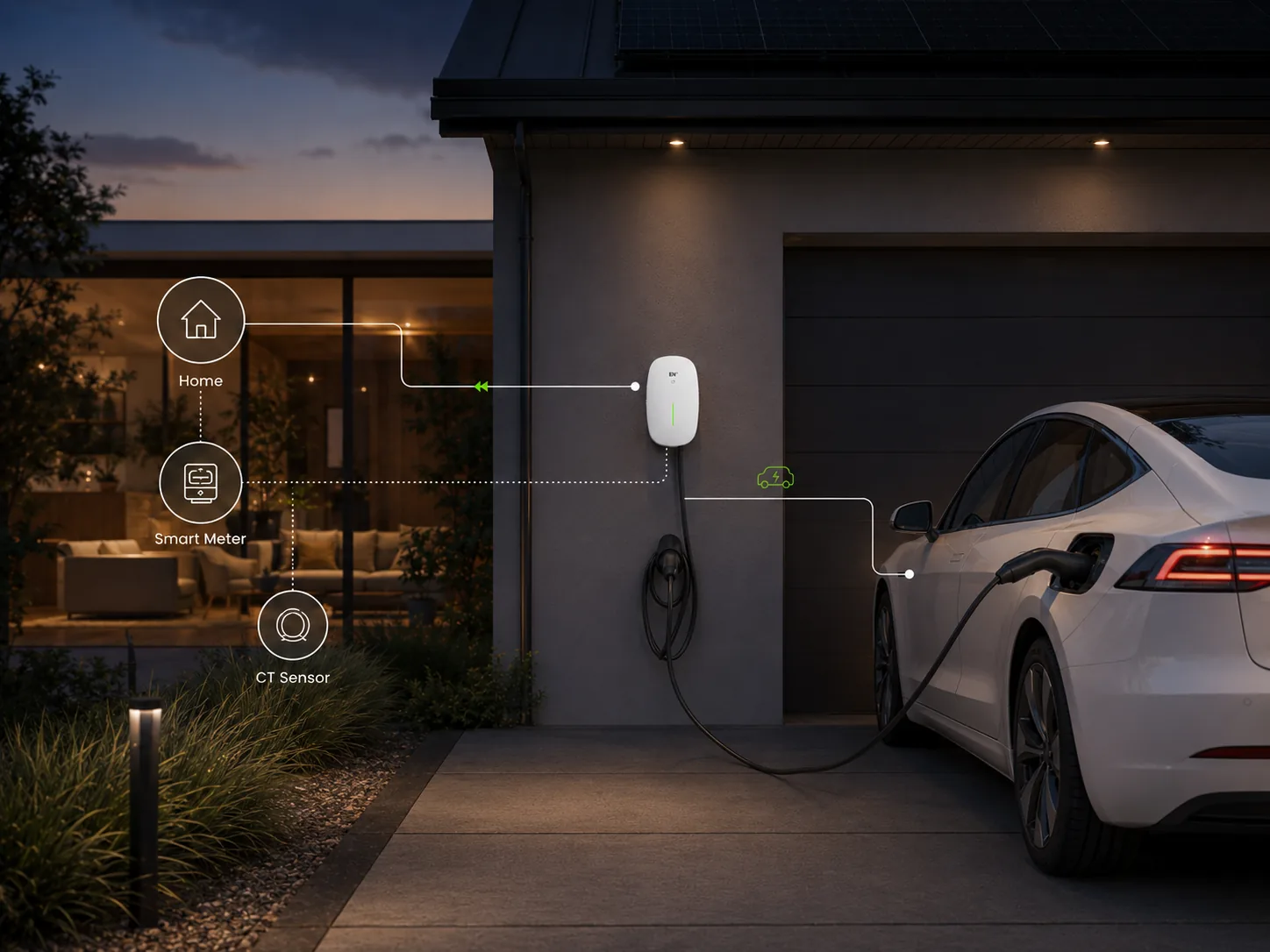

Reserved CT and RS485 interfaces allow Stella to be configured for load balancing and optional PV-charging logic, helping installers manage charging current against household demand and fuse-capacity constraints.
Appropriate for single-phase homes with fuse current up to 50A when CT-based load measurement is properly configured.
Extends the solution path for single-phase homes with fuse current up to 100A when a compatible meter is included in the configuration.

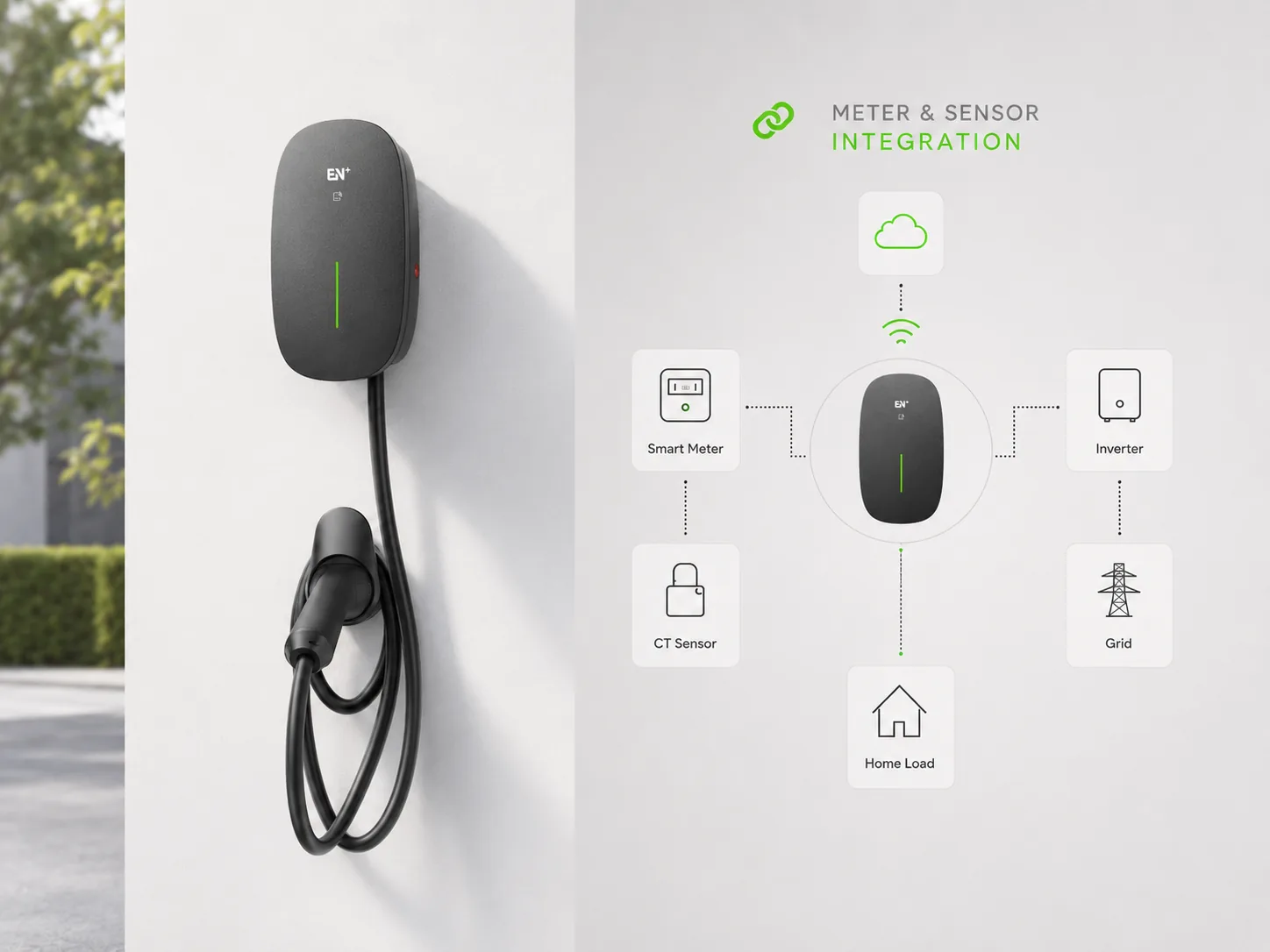

Stella is not positioned as a premium EMS wallbox, but it can be deployed with compatible meters and sensors to deliver a disciplined, easy-to-explain architecture for residential charging projects that require measurement visibility and controlled current allocation.
Creates a clearer relationship between charger, smart meter, CT sensor and home load conditions for installer communication and system setup.
Helps partners present Stella as a practical PV-compatible charger without overstating it as a premium whole-home energy platform.

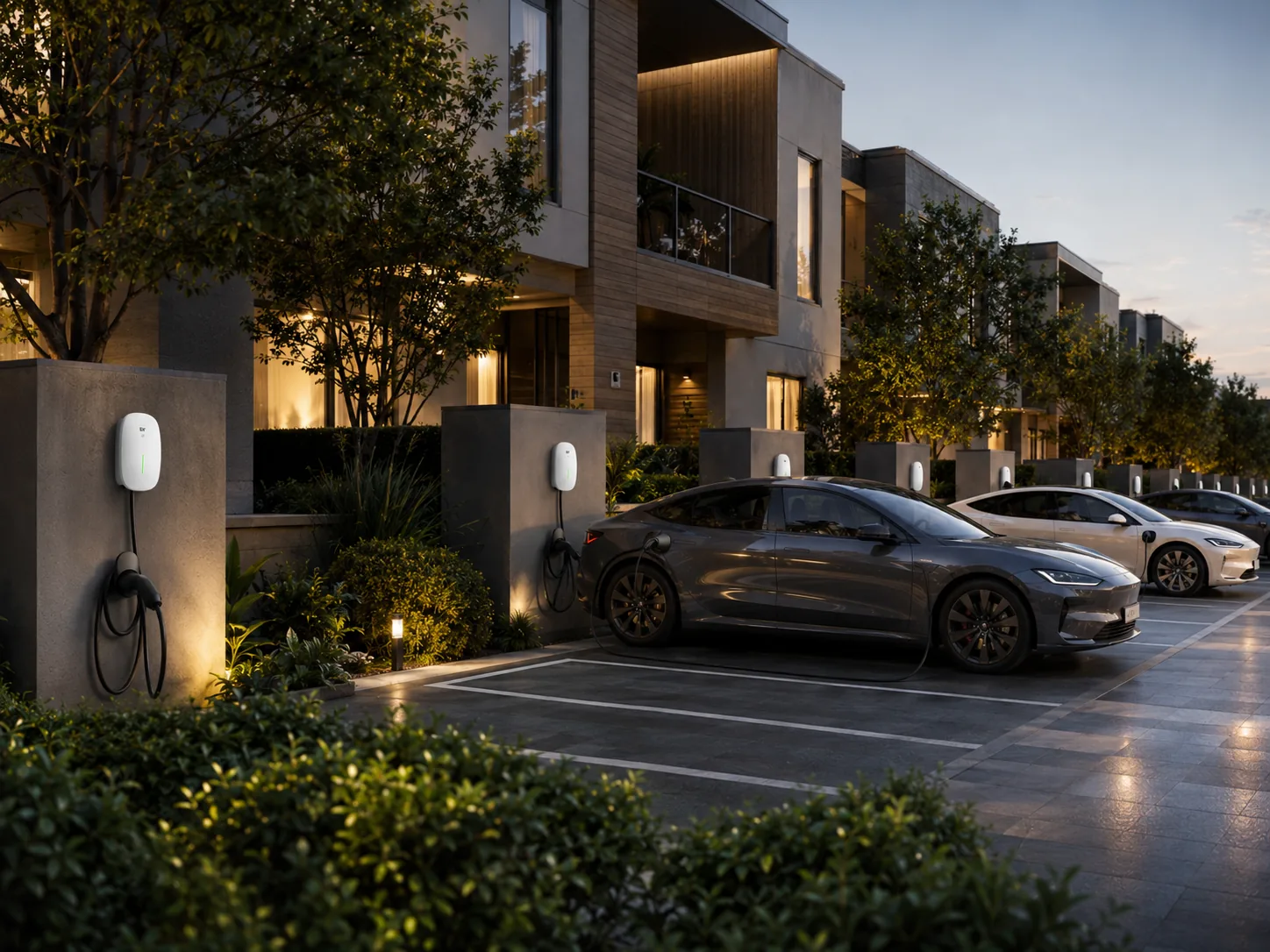

Stella combines a compact 264 × 160 × 69 mm enclosure with everyday protection features, making it suitable for garages, villas, townhouse parking and organized residential parking projects where space efficiency and durability both matter.
The small enclosure reduces visual intrusion and helps installers position the charger on constrained wall areas, boundary structures and residential parking surfaces.
IP65, IK08, UL94 V-0 housing and integrated electrical protections support dependable day-to-day residential and semi-public use.

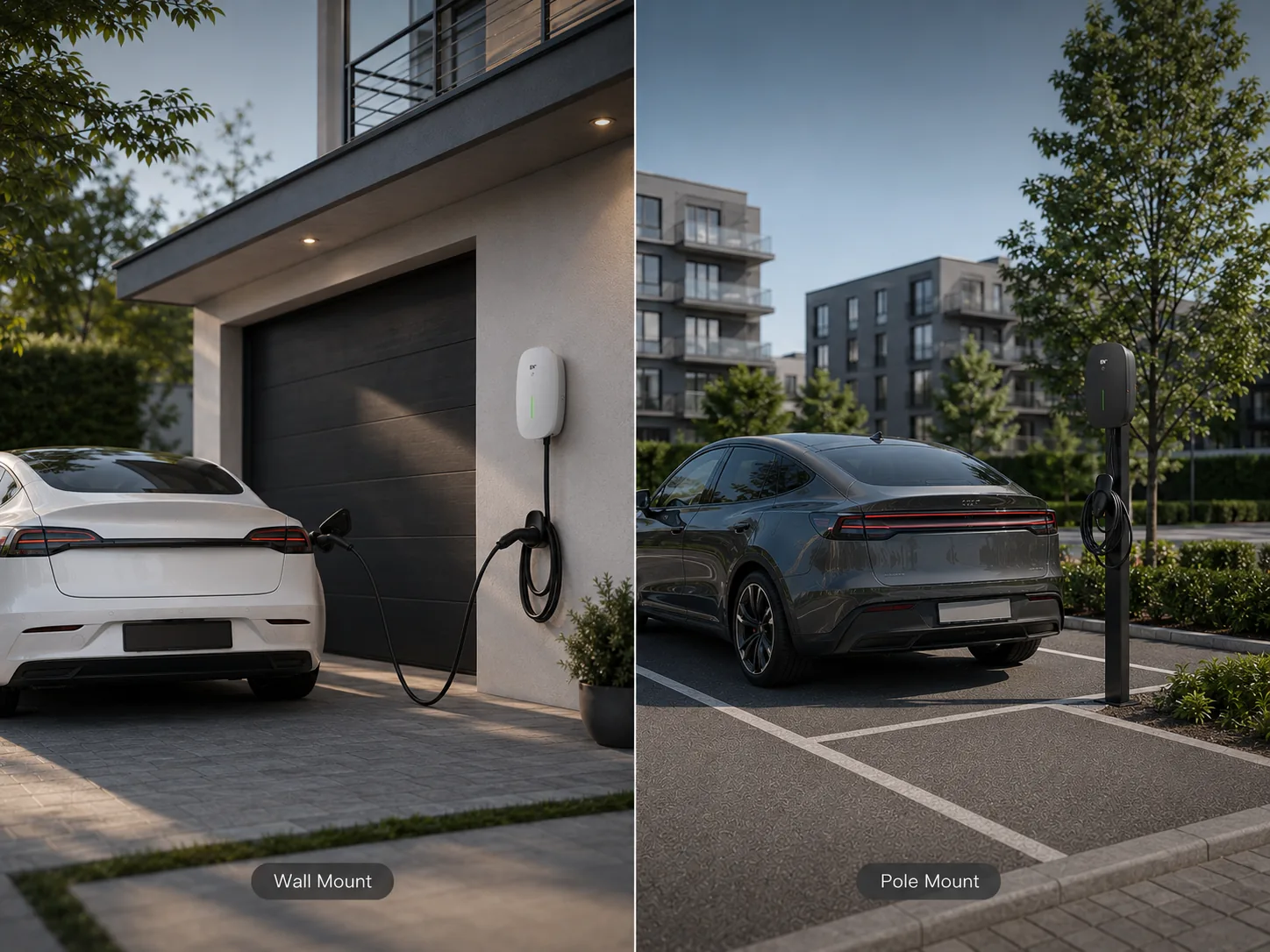

Wall-mounted and pole-mounted installation options, fixed Type 2 cable delivery and an optional 1m pre-connected input cable help channel partners simplify specification, installation planning and handover for residential and small-site projects.
Installation planning can be standardized around cable reach, mounting surface, operating current, cable management and circuit-protection requirements.
A focused 7kW SKU helps distributors reduce configuration complexity and build a clearer entry-level residential charging offer.
Stella is best positioned where AC charging must remain compact, cost-controlled, easy to operate and practical for residential or semi-private daily charging.
Suitable for daily home charging where a compact fixed-cable wallbox is preferred over a larger premium residential charger.
Fits shared residential environments where small device size, RFID access and clear LED status improve daily usability.
Supports staff or customer parking where basic AC charging and controlled operation are sufficient for long dwell times.
A strong fit for distributors and installers seeking an entry-level smart AC wallbox with consistent specifications and simple positioning.
Can support low-cost overnight AC charging for company cars or light-duty vehicles where DC charging speed is unnecessary.
Suitable for markets where compact size, reliable 7kW charging and competitive product cost are more important than premium EMS or cybersecurity-driven specifications.
Supports CT-only or CT + meter load balancing configurations when household fuse capacity must be considered.
Works for standardized home charger installation offers where fixed cable, wall mounting and app commissioning simplify delivery.
Use Stella for compact high-value 7kW projects. Use adjacent EN Plus AC products when the buyer requires premium PV-ready configuration, advanced cabling flexibility or dual charging positions.
Premium PV-ready AC wallbox for solar homes, installer-led packages and mid-to-high-end residential energy projects.
View Details
PV-compatible AC wallbox with top, bottom and rear cabling for projects where installation routing flexibility is the main selection factor.
View Details
Dual AC wallbox option for two-vehicle home, apartment and business parking projects where one charger needs to serve two spaces.
View DetailsReview electrical, connector, communication, protection, load balancing, optional PV charging and installation parameters before confirming site configuration, local installation requirements and order setup.
| Category | Parameter | Stella AC7000-AE-65C4 |
|---|---|---|
| Main | Product name | Stella Home Wallbox |
| Product model | AC7000-AE-65C4 | |
| Product type | Ultra-compact PV-compatible single-phase AC wallbox | |
| Target positioning | Cost-efficient residential, apartment, small business and volume-based AC charging projects | |
| Product dimensions | 264 × 160 × 69 mm (W × H × D) | |
| Color | White / Black | |
| Electrical | Power supply | 1P + N + PE |
| Rated voltage | 230V AC | |
| Rated current | 32A | |
| Frequency | 50 / 60Hz | |
| Rated power | 7kW | |
| Charge mode | Mode 3 according to IEC 61851-1 | |
| Number of connectors | 1 | |
| Connector & Cable | Connector option | Fixed cable with Type 2 plug according to IEC 62196-2 |
| Cable length | 5 m | |
| Cable holder | Included | |
| Connector storage | Connector holster / cable holder arrangement | |
| Communication & Operation | Communication | Wi-Fi & Bluetooth |
| Start mode | Plug to Charge / RFID Card / App | |
| NFC functionality | Supports NFC functionality on supported iOS / Android systems for RFID use | |
| Status indicator | LED | |
| Commissioning | Evchargo App for residential scenario; AP mode for third-party App or commercial scenario configuration | |
| Firmware update path | Supported through connected software path according to product software version | |
| Load Balancing & PV | Load balancing support | Supported; required accessories are sold separately |
| PV charging path | Load Balance & PV charging optional; reserved CT and RS485 interfaces by project configuration | |
| CT-only solution | CT × 1, single phase, fuse current ≤50A, configured through Evchargo App or AP mode | |
| CT + meter solution | CT × 1 + meter × 1, single phase, fuse current ≤100A, configured through Evchargo App or AP mode | |
| Internal ports | CT and RS485 ports | |
| RS485 cable | 22 to 24AWG shielded twisted pair required for meter configuration | |
| Load-balancing configuration | Configured in software interface after wiring is completed | |
| Use boundary | Load balancing and PV charging should be configured by qualified personnel according to the actual home fuse capacity, wiring condition and accessory setup | |
| Safety & Protection | Earth leakage protection | Type A + 6mA DC |
| Housing fire rating | UL94 V-0 | |
| Impact protection | IK08 | |
| Enclosure rating | IP65 | |
| Electrical protection | Overcurrent protection; residual current protection; surge protection; over / undervoltage protection; over / under frequency protection; overtemperature protection | |
| Operating altitude | ≤2000 m | |
| Operating humidity | Max. 95% non-condensing | |
| Installation | Installation method | Wall-mounted / pole-mounted |
| Cabling method | Bottom cabling | |
| Pre-connected input cable | Optional 1m input cable | |
| Required power cable | 6mm² copper wiring for 32A continuous load, subject to local wiring regulations | |
| Recommended circuit protection | 2P RCBO 40A, Type A; 50A recommended if ambient temperature is higher than 45°C | |
| Certification & Standards | Certification | CE, RoHS, REACH |
| Charging standards | EN IEC 61851-1:2019; EN IEC 61851-21-2 | |
| Radio / EMC standards | EN 300 328 V2.2.2:2019; EN 300 330 V2.1.1:2017; EN 301 489-1 V2.2.3:2019; EN 301 489-3 V2.1.1:2019; EN 301 489-17 V3.2.0:2017 | |
| EMC / exposure standards | EN IEC 61000-6-1:2019; EN 61000-6-3:2007+A1; EN 62311:2008 | |
| Certification note | Final country-level installation and certification requirements should be confirmed before market promotion | |
| Environment & Documents | Operating temperature | -30°C to +50°C |
| Warranty | 3 years | |
| Main documents | Installation & Operation Guide; App User Guide; AP Mode Configuration Guide | |
| Routine maintenance | Check and clean charger enclosure, connector and cable every six months; do not spray water directly on the charger |
EN Plus supports partners with AC and DC charger hardware, charging management platform connection, OEM / ODM customization, technical documentation and international B2B project delivery.
Support product selection for residential, apartment, small business and volume-based AC charging projects.
Provide installation guide, app commissioning guide, AP mode guide and load balancing configuration references.
Support branding, product configuration and project-specific requirements according to order and market conditions.
Support evaluation of fixed-cable AC charging, load balancing accessories, installation method and local market suitability.
