Nano Series Duo Wallbox

A new generation of 22kW AC chargers, available in both commercial and home versions, suitable for use in residential communities, commercial properties, and private settings. It supports remote parameter viewing and control, QR code, and card activation. It has 8 built-in safety protection functions to ensure user safety. It can be equipped with a wireless router that supports full network access or be wire connected to the network. Smart solutions such as load balancing and PV charging are also available to save costs and facilitate management.

Remote O&M

Scheduler

PV Charging

Load Balancing

Hardwired

App

NFC

Plug & Play

OCPP

Wi-Fi

Ethernet

4G

Bluetooth

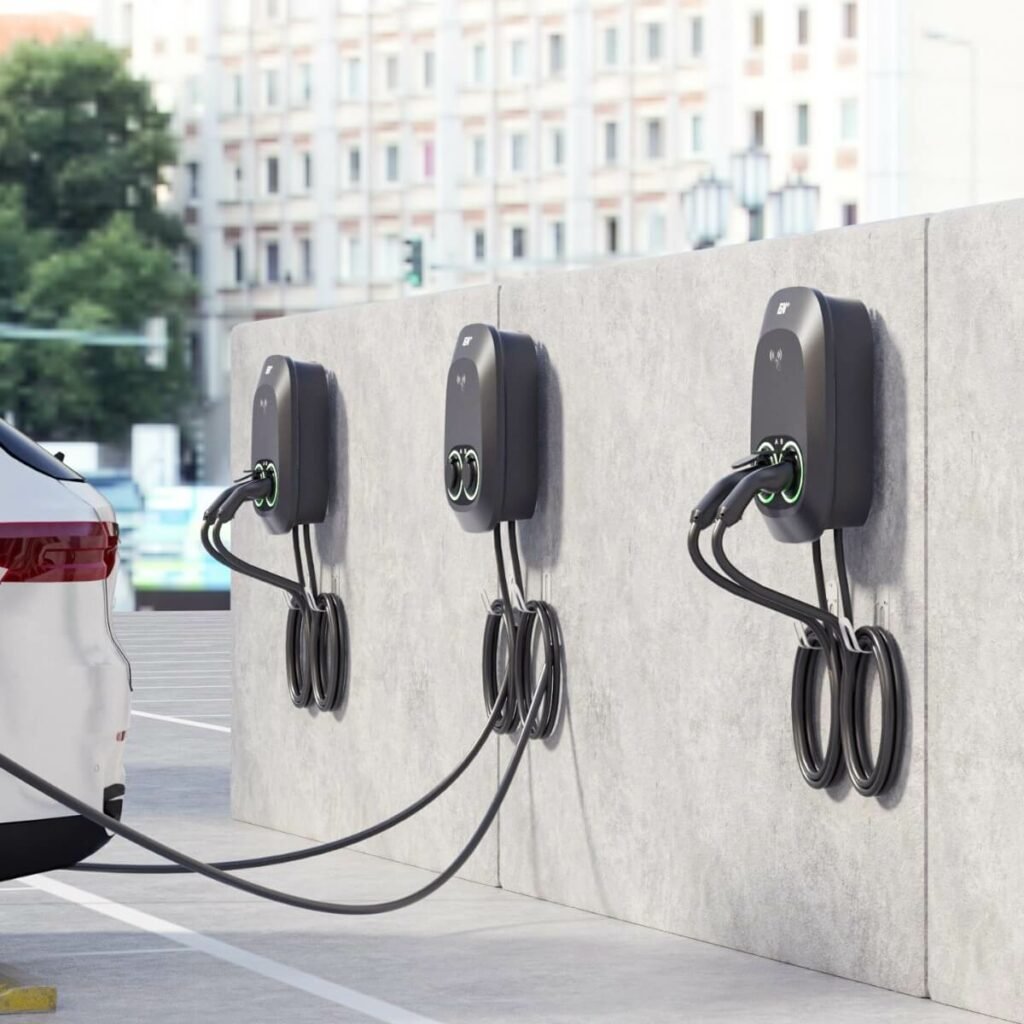

Home to Business Multi-Charging Solution

Featuring a sleek design, and high-level protection, making it ideal for diverse outdoor and damp environments. This advanced charging solution features 2 Type 2 sockets/cables, facilitating simultaneous charging for 2 EVs, ensuring efficiency with a touch of sophistication.
home to business multi-charging solution​
safe charging anywhere, anytime​

Safe Charging Anywhere, Anytime

OCPP1.6 Json-supported, allows scheduled charging through mobile App, Plug&Play, or RFID Card, ensuring both flexibility and multi-dimensional security for customer data safety.

Balance, Inside Out

Achieve a harmonious power balance with 2x11kW or 1x22kW simultaneously inside, complemented by dynamic load balancing outside.
balance inside out​

Your benefits

01
.

Easy/Convenient

  • Double Connectors
  • 10mins Quick Installation
  • Wall-mount/Pole-mount(Optional)
  • Suitable for Both Home & Business Needs
  • Compatible with all EV & PHEV Models
02
.

Flexible

  • Connectivity:Wi-Fi/4G/Ethernet/Bluetooth
  • Cable Length: 4m/7m(Optional)
  • 2x Type 2 Socket/Cable
  • Start Mode: Plug&Play, RFID Card, App
  • Rated Power: 1x22kW/2x11kW
03
.

Safety

  • IP54 Ingress Protection
  • IK10 Impact Protection
  • High Cyber Security Protection
  • Muliti Electrical Protection
  • Type A +6mA DC RCD
06
.

PV Charging

  • 0 emission PV charging
  • Simple integration with PV systems
  • Adjustable current for optimized PV usage
  • Saving from electricity bills
05
.

Customizable branding

  • White Label Service
  • Color Customized Service
  • Enclosure Design
  • ODM Service
  • OEM Service
04
.

Smart charging

  • Scheduled Charging
  • Dynamic Load Management
  • Site Map Charger Finding
  • Charger Authorisation

Specification

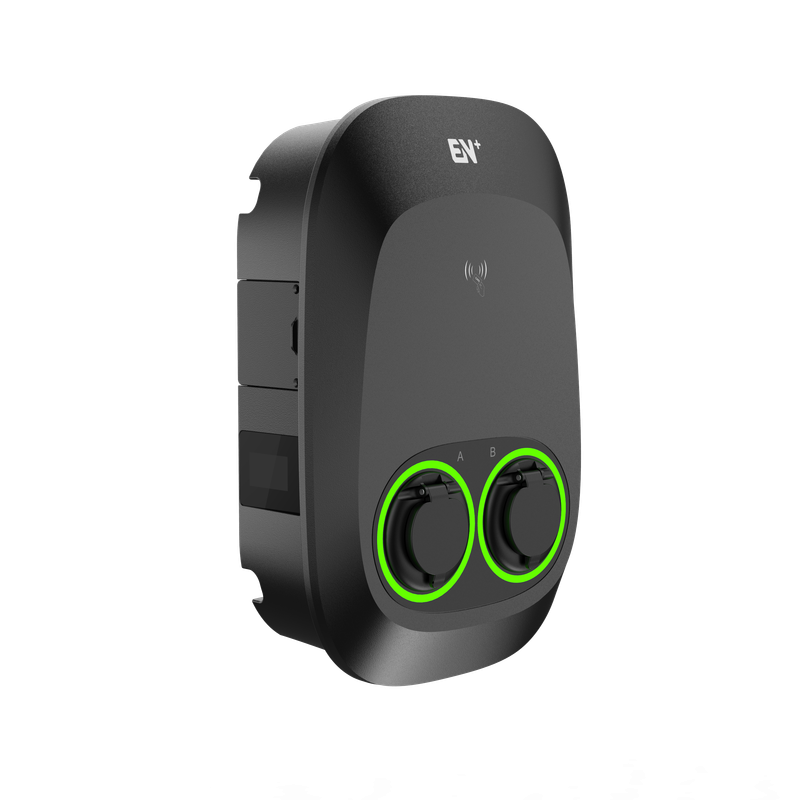

nano series duo wallbox

Nano Series
Cable Version 22kW

Dimension
540 * 360 * 199mm (H * W * D)

Weight
16kg

Voltage
400V AC


Current
32A


Charge Connector
2 * Type 2 Cable
7m Cable (4m Optional)


Start Mode
Plug & Play / RFID Card / App


Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)


Certification
CE, RoHs


Safety Protection
IP54
IK08

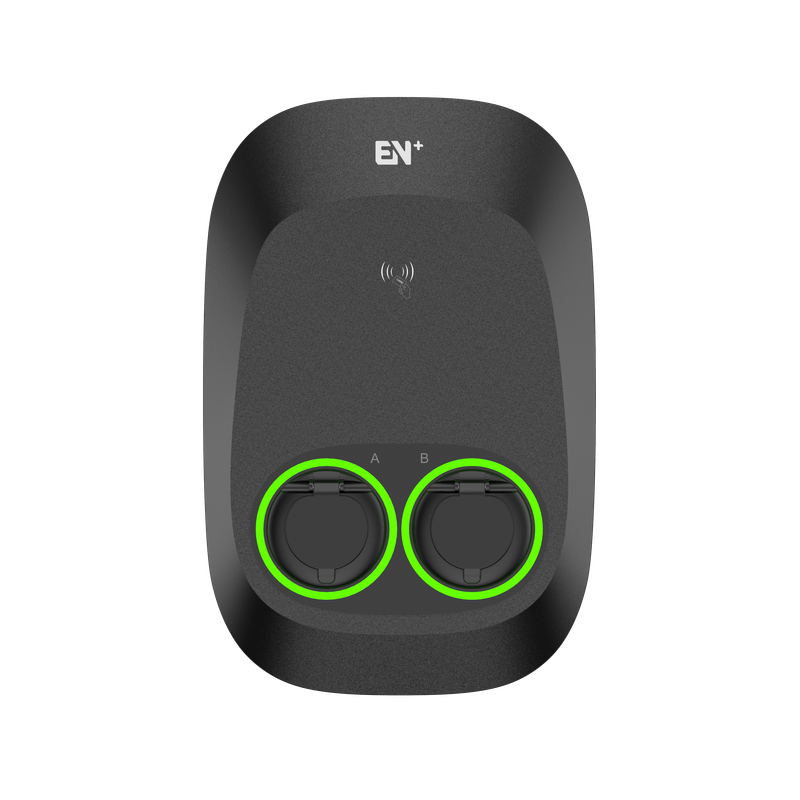

Nano Series Duo Wallbox

Nano Series
Socket Version 22kW

Dimension
Product : 540 * 360 * 199mm
(H * W * D)


Weight
16kg

Voltage
400V AC


Current
32A


Charge Connector
2 * Type 2 Socket


Start Mode
Plug&Play / RFID Card / App


Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)


Certification
CE, RoHs


Safety Protection
IP54
IK08″

Maximum charging power

Current

Voltage

Safety Protection

Charge Connector

Start Mode

Communication

Dimensions

Certification

Weight

Edit Content
Nano Series Duo Wallbox
Edit Content
nano series duo wallbox
Edit Content
Nano Series Duo Wallbox
Edit Content
Nano Series Duo Wallbox
Edit Content
Nano Series Duo Wallbox
Edit Content
Nano Series Duo Wallbox

FAQs for EN Plus EV Chargers

The charger’s two output connectors offer two operating modes, both easily adjustable through a user-friendly interface. You can choose between even distribution or priority mode, allowing you to charge two cars simultaneously at 11kW each or charge a single car at 22kW. Additionally, the charger’s external load balance feature optimizes power utilization, enhancing economic efficiency by making the best use of the available power supply.

Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Nano Series Home Wallbox can provide the following ranges after 1 hour of charging:
2*11kW version: 69 kilometers/car
22kW version: 138 kilometers

You are able to monitor our Silk Series Home Wallbox through your mobile App, our Evchargo Cloud software system, and the Led Indicator on the charger.

This product is compatible with all Type 2 EV models.
