Cubo Series AC Charger: 2 Output in 1 EV Charger | EN Plus
cubo series ac charger​

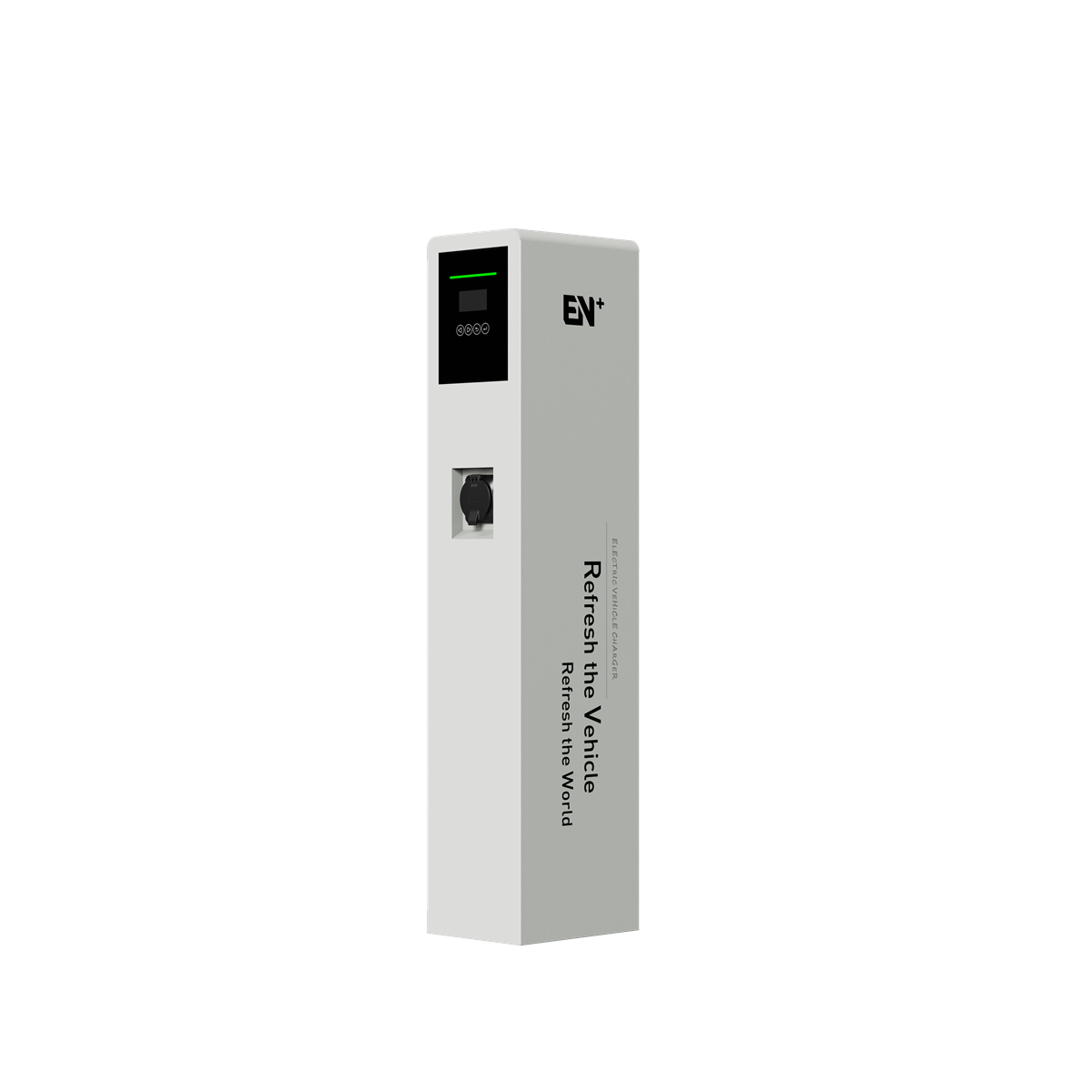

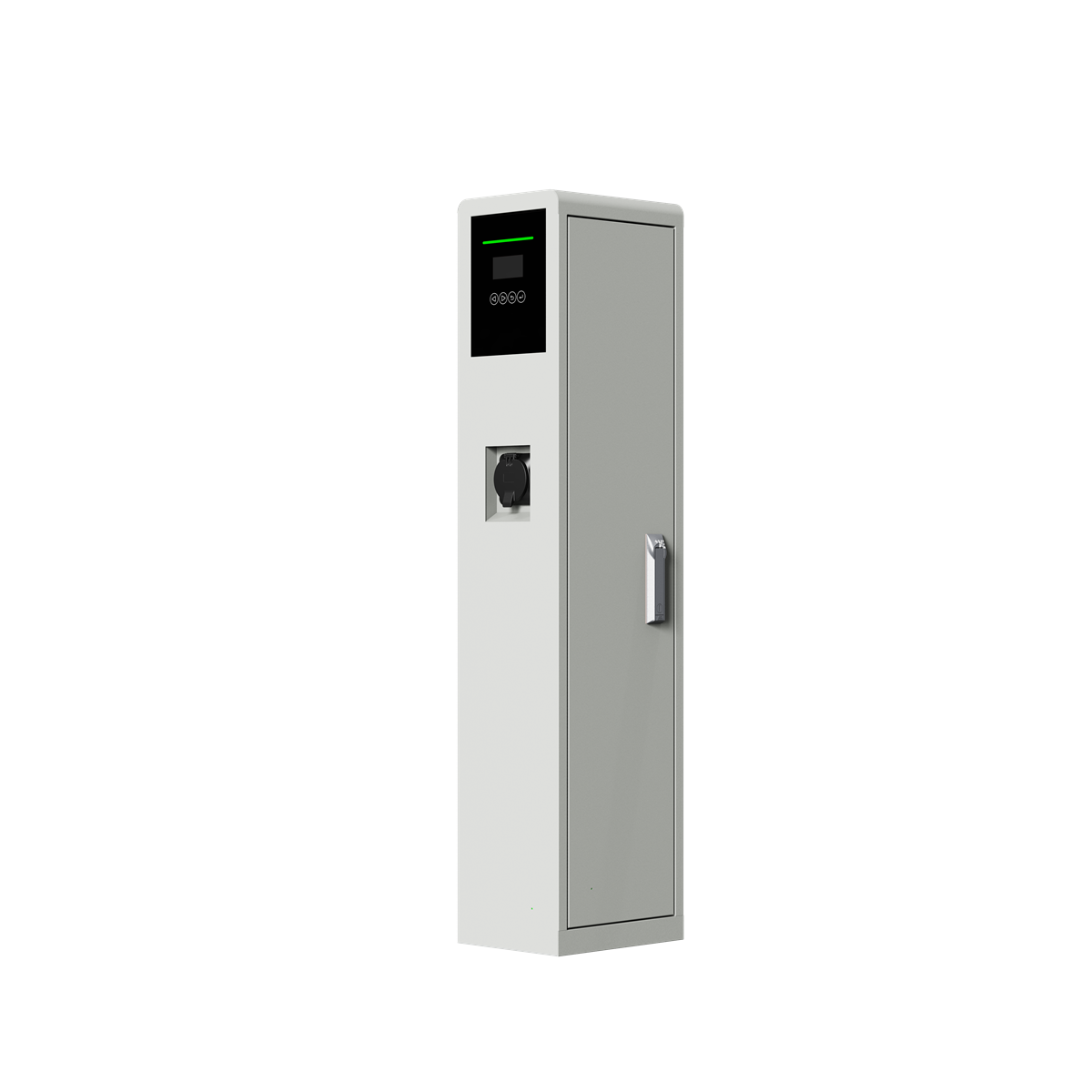

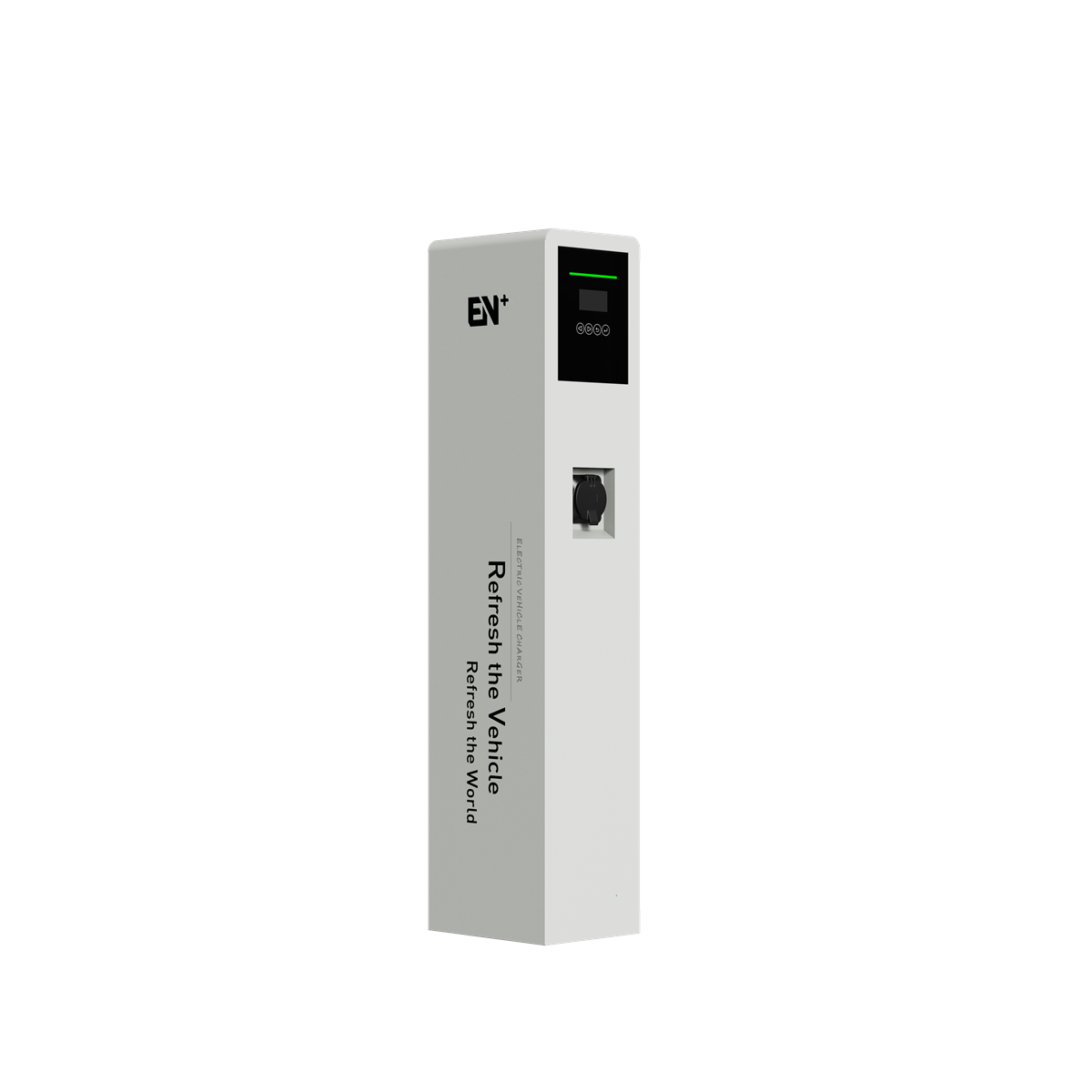

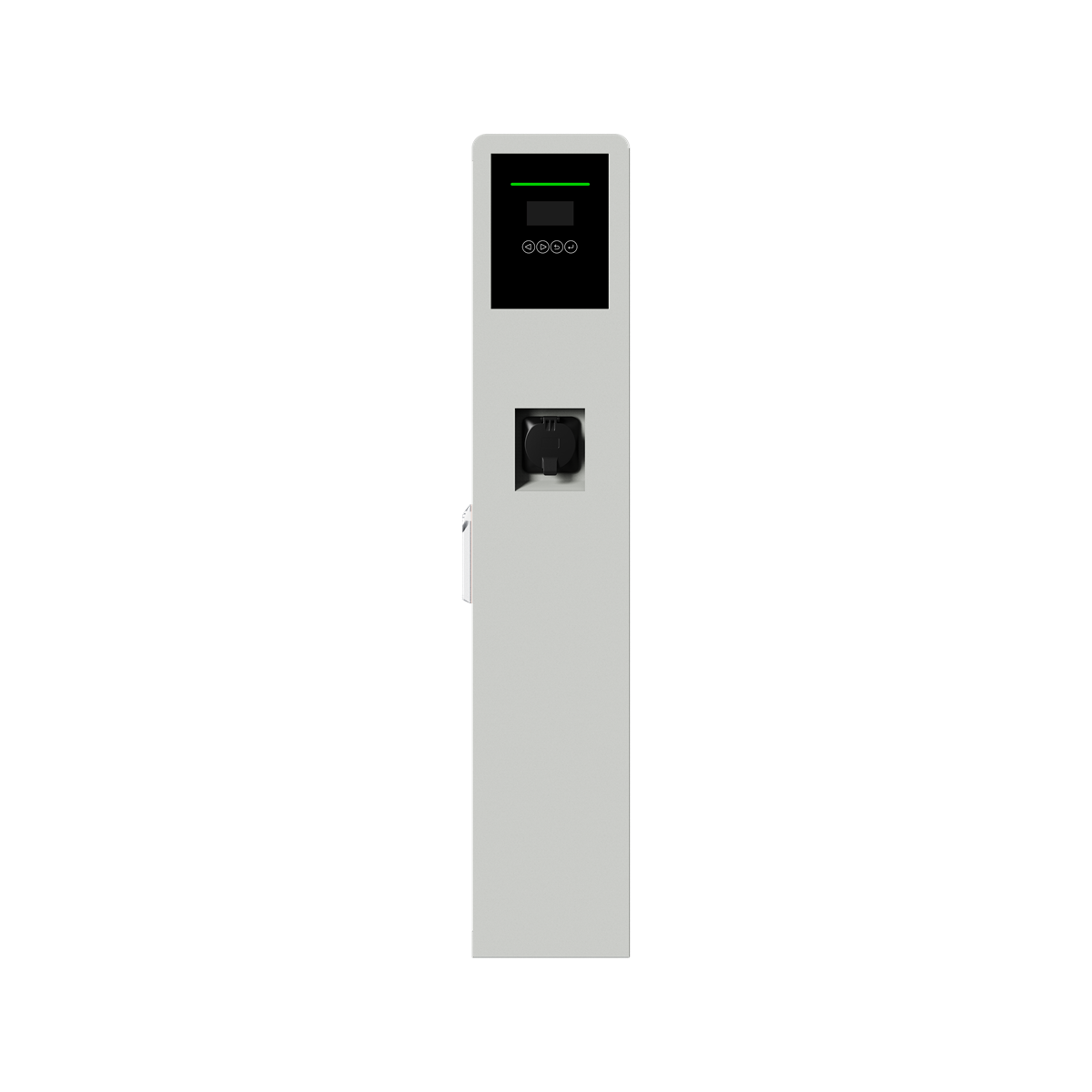

Cubo Series AC Charger

Cubo Series AC Charger offers simultaneous dual charging. With high-output capability and flexible modes, it achieves extensive compatibility. Its sleek design is customizable, allowing for personalized branding. Advanced safety features ensure secure charging in any environment.

Remote O&M

Scheduler

PV Charging

Load Balancing

App

NFC

Plug & Play

OCPP

Wi-Fi

Ethernet

4G

Bluetooth

Charge Smart, Profit In

Unlock Business Efficiency with Cubo Series. Experience efficient charging up to 2*22kW, boosting revenue for businesses. This advanced charging solution facilitating simultaneous charging for 2 EVs, ensuring efficiency with a touch of sophistication.
charge smart, profit Iin

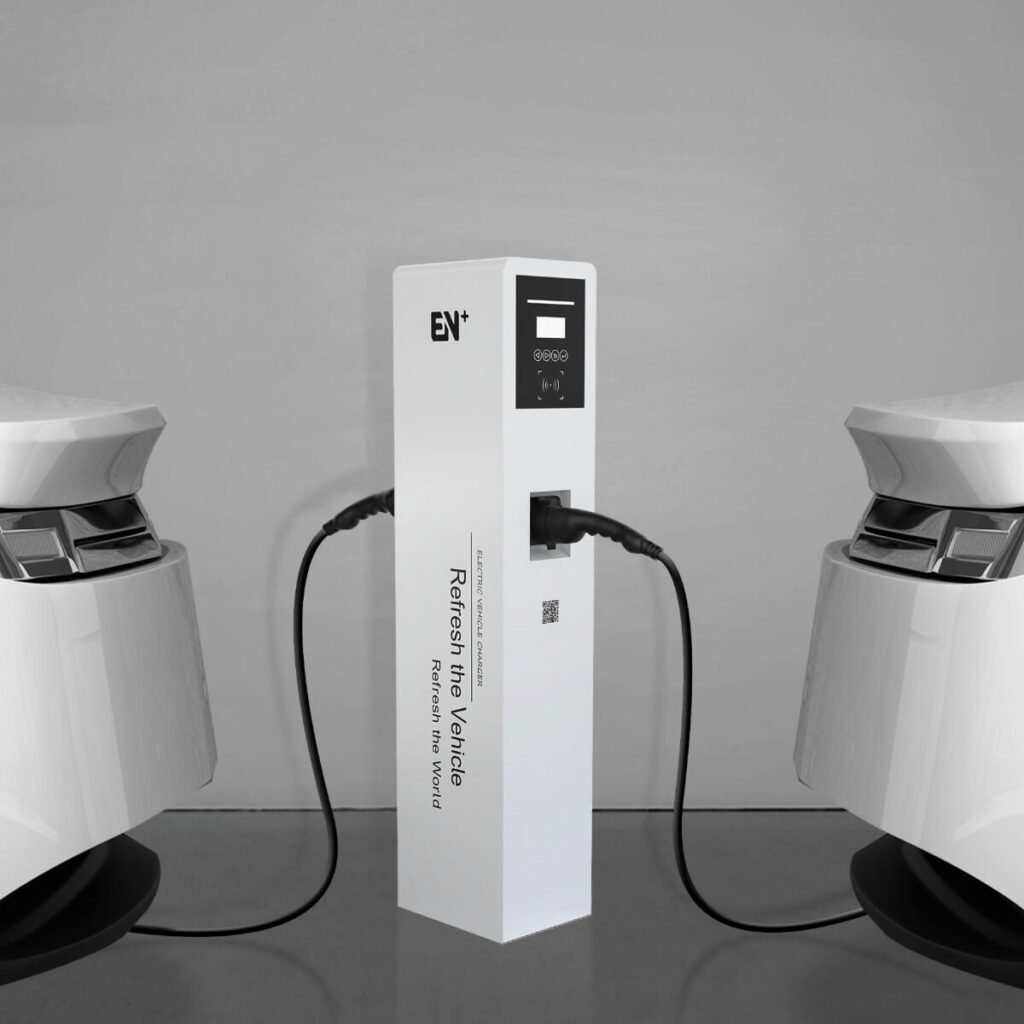

Balance, Inside Out

Achieve a harmonious power balance with 2x11kW or 1x22kW simultaneously inside, complemented by dynamic load balancing outside.

Safe Charging Anywhere, Anytime

Cubo Series, OCPP1.6 Json-supported, allows scheduled charging through mobile App, Plug&Play, or RFID Card, ensuring both flexibility and multi-dimensional security for customer data safety.
charge smart profit in

Your benefits

01
.

Easy/Convenient

  • Built-in Socket Holder
  • 15mins Quick Installation
  • Floor Stand
  • Type 2 Cable/Socket
02
.

Flexible

  • Connectivity:Wi-Fi/4G/Ethernet/Bluetooth
  • Start Mode: Plug&Play, RFID Card, App
  • Rated Power: 2x7kW/2x22kW
03
.

Safe

  • IP54 Ingress Protection
  • IK08 Impact Protection
  • High Cyber Security Protection
  • Muliti Electrical Protection
  • MID Certified
05
.

Customizable branding

  • White Label Service
  • Color Customized Service
  • Enclosure Design
  • ODM Service
  • OEM Service
04
.

Smart charging

  • Scheduled Charging
  • Dynamic Load Management
  • Site Map Charger Finding
  • Charger Authorisation

Specification

Cubo Series AC Charger

Cubo Series
Socket Version 2x7kW

Dimension
1200 * 290 * 230mm (H * W * D)

Weight
Net Weight: 28.5kg

Voltage
230V AC


Current
32A


Charge Connector
2 * 7kW Type 2 Socket


Start Mode
Plug & Play / RFID Card / App


Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)


Certification
CE, CB, TUV Mark


Safety Protection
IP54
IK08″

Cubo Series AC Charger

Cubo Series
Socket Version 2x22kW

Dimension
1200 * 290 * 230mm (H * W * D)

Weight
Net Weight: 27.5kg

Voltage
400V AC


Current
64A


Charge Connector
2 * 22kW Type 2 Socket


Start Mode
Plug&Play / RFID Card / App


Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)


Certification
CE, CB, TUV Mark


Safety Protection
IP54
IK08

Dimension

Weight

Voltage

Start Mode

Communication

Charge Connector

Certification

Safety Protection

Current

Edit Content
Cubo Series AC Charger
Edit Content
Cubo Series AC Charger
Edit Content
Cubo Series AC Charger
Edit Content
Cubo Series AC Charger

FAQs for EN Plus EV Chargers

The charger’s two output connectors offer two operating modes, both easily adjustable through a user-friendly interface. You can choose between even distribution or priority mode, allowing you to charge two cars simultaneously at 11kW each or charge a single car at 22kW. Additionally, the charger’s external load balance feature optimizes power utilization, enhancing economic efficiency by making the best use of the available power supply.

Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Cubo Series AC Charger can provide the following ranges after 1 hour of charging:
2*7kW version: 46 kilometers/car
22kW version: 138 kilometers

This product is compatible with all Type 2 EV models.
