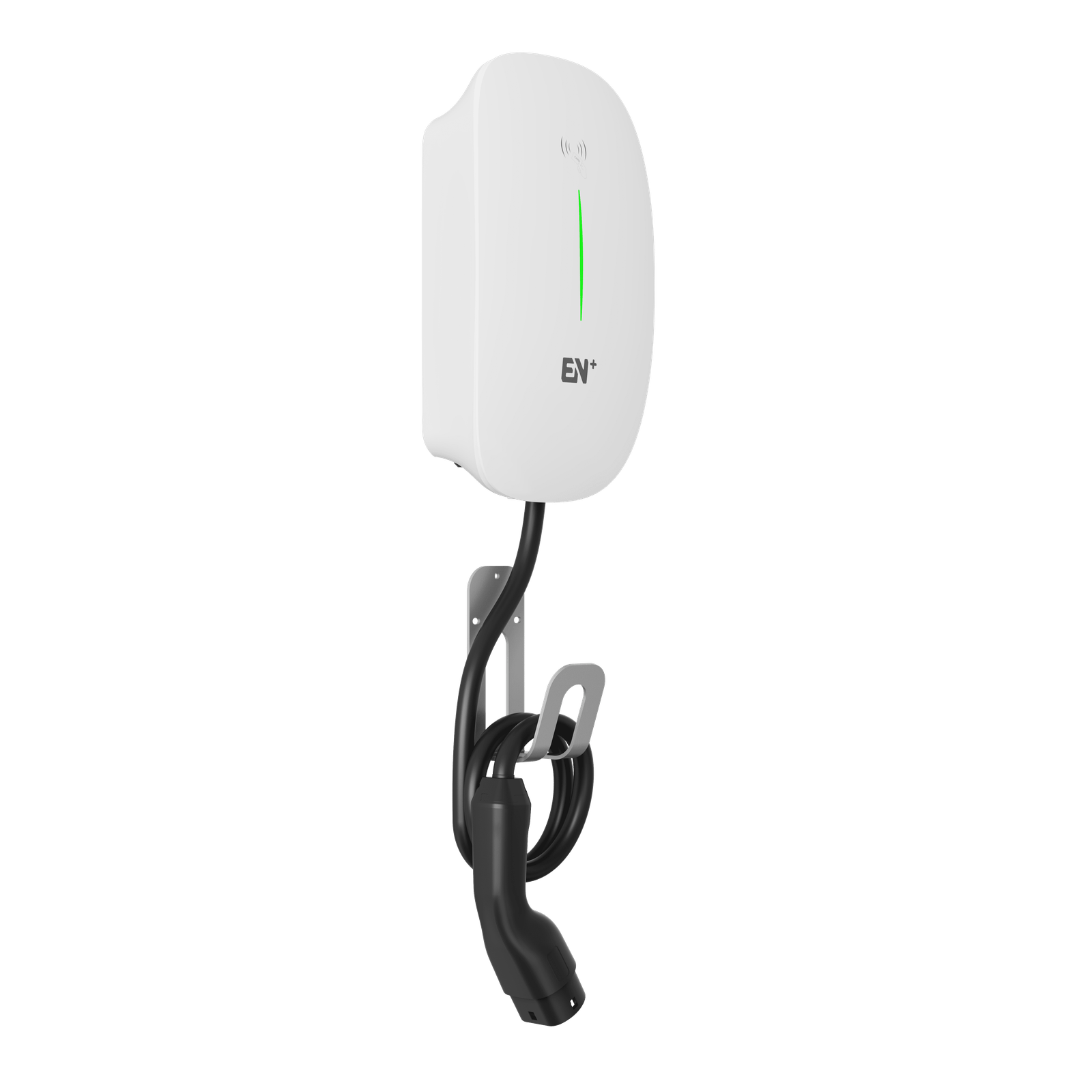

caro wallbox

EN Plus Caro Series Home Wallbox

A 2023 Red Dot Award winner, adds elegance to any charging location, be it at home, in business settings, or semi-public areas. Solar power-compatible for eco-friendly charging, its intelligent load management system reduces grid peak pressures. Experience powerful load balancing with up to 25 chargers on a single circuit. Enjoy the flexibility of 1A grid charging, optimizing energy usage with seamless PV integration.

Remote O&M

Scheduler

PV Charging

Load Balancing

App

RFID

Plug & Play

OCPP

Wi-Fi

Ethernet

4G

Bluetooth

Best Match with Your Home Decor

Featured a sleek and easy-to-install design with a variety of color options to seamlessly complement diverse home styles.

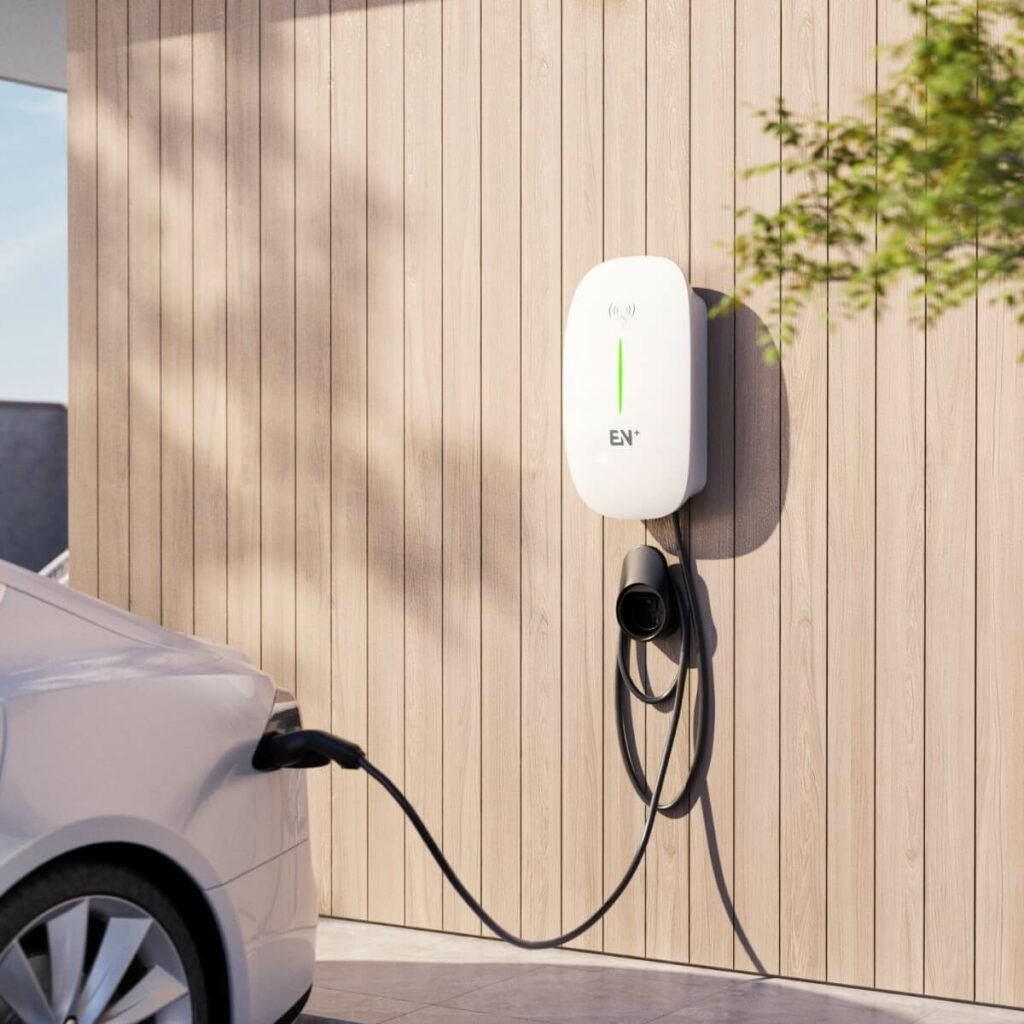

caro series scene

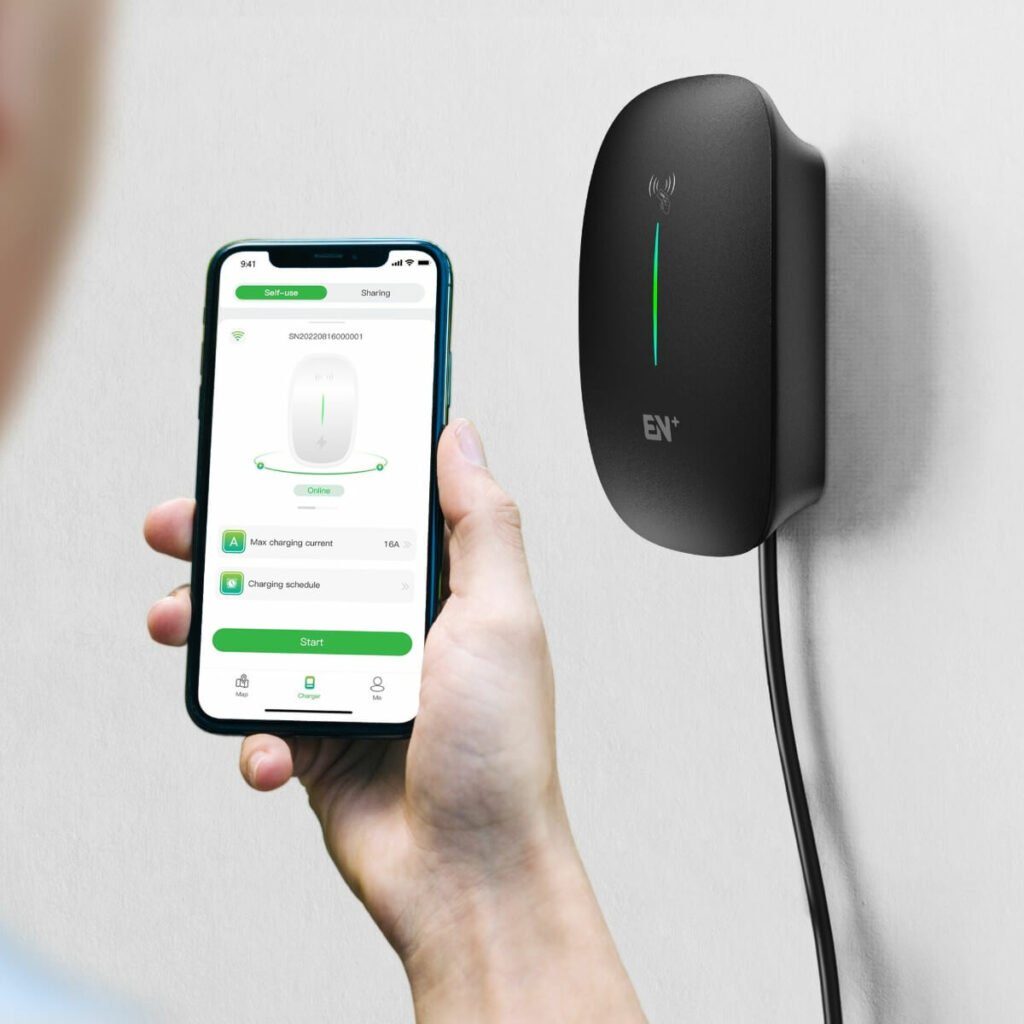

savings on electricity bills

Savings on Electricity Bills

Allowing smart charging with solar energy, it optimize electricity use with dynamic load management, reducing costs and enhancing power savings.

Your benefits

01
.

Easy/Convenient

  • Max. 3.5kg Light Weight
  • 10mins Quick Installation
  • Wall-mount/Pole-mount(Optional)
  • Type 2 Cable/Socket
02
.

Flexible

  • Connectivity: Wi-Fi/4G/Ethernet/Bluetooth
  • Cable Length: 4m/7m(Optional)
  • Start Mode: Plug&Play, RFID Card, App
  • Rated Power: 7kW/11kW
03
.

Safety

  • IP65 Ingress Protection
  • IK10 Impact Protection
  • High Cyber Security Protection
  • Muliti Electrical Protection
06
.

PV Charging

  • 0 emission PV charging
  • Simple integration with PV systems
  • Adjustable current for optimized PV usage
  • Saving from electricity bills
05
.

Customizable Branding

  • White Label Service
  • Color Customized Service
  • ODM Service
  • OEM Service
04
.

Smart Charging

  • Schduled Charging
  • Dynamic Load Management
  • Site Map Charger Finding
  • Charger Authorisation

Specification

Caro Series Cable Version 7kW

Caro Series
Cable Version 7kW

Dimension
344 * 192 * 100mm
(H * W * D)



Weight
3.1kg

Voltage
230V AC



Current
32A



Charge Connector
Type 2 Cable
7m Cable (4m Optional)



Start Mode
Plug & Play / RFID Card / App



Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)



Certification
TUV Mark, CE, CB, RoHS



Safety Protection
IP65
IK08

Caro Series Socket Version 7kW

Caro Series
Socket Version 7kW

Dimension
344 * 192 * 135mm
(H * W * D)


Weight
3.1kg

Voltage
230V AC


Current
32A


Charge Connector
Type 2 Socket


Start Mode
Plug & Play / RFID Card / App


Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)


Certification
TUV Mark, CE, CB, RoHS


Safety Protection
IP54
IK08

Caro Series
Cable Version 11kW

Dimension
344 * 192 * 100mm
(H * W * D)


Weight
3.5kg

Voltage
400V AC


Current
16A


Charge Connector
Type 2 Cable
7m Cable (4m Optional)


Start Mode
Plug & Play / RFID Card / App


Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)


Certification
TUV Mark, CE, CB, RoHS


Safety Protection
IP65
IK08

Caro Series
Socket Version 11kW

Dimension
344 * 192 * 135mm
(H * W * D)


Weight
3.5kg

Voltage
400V AC


Current
16A


Charge Connector
Type 2 Socket


Start Mode
Plug & Play / RFID Card / App


Communication
Wi-Fi & Bluetooth & Ethernet (Standard)
Wi-Fi & Bluetooth & 4G (Optional)


Certification
TUV Mark, CE, CB, RoHS


Safety Protection
IP54
IK08

Product standards

Maximum charging current

Voltage

Control, amperage and status display

Charge Connector

Start Mode

Communication

Safety Protection

Dimensions

Certification

Weight

Edit Content
Caro Series Home Wallbox
Edit Content
Edit Content
Caro Series Home Wallbox
Edit Content
Caro Series Home Wallbox
Edit Content
Caro Series Home Wallbox
Edit Content

FAQs for EN Plus EV Charger

Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Caro Series Home Wallbox can provide the following ranges after 1 hour of charging:
7kW version: 46 kilometers
11kW version: 69 kilometers

You are able to monitor our Caro Series Home Wallbox through your mobile App, our Evchargo Cloud software system, and the Led Indicator on the charger.

This product is compatible with all Type 2 EV models.
